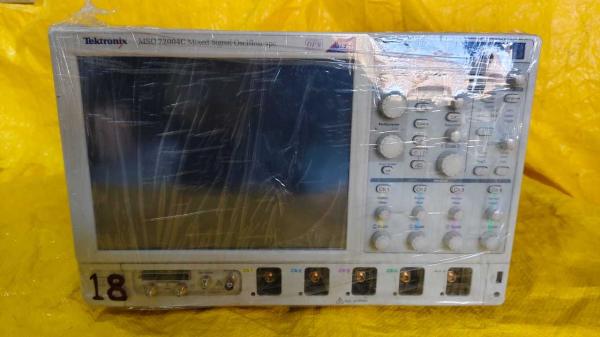

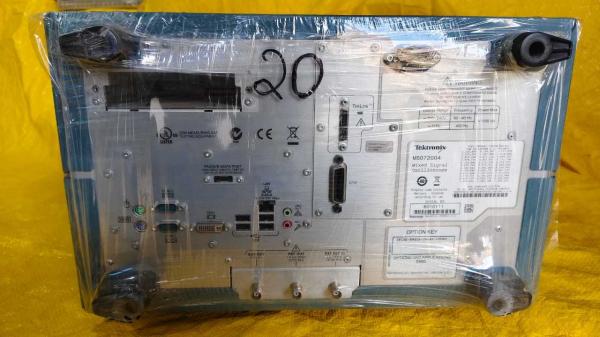

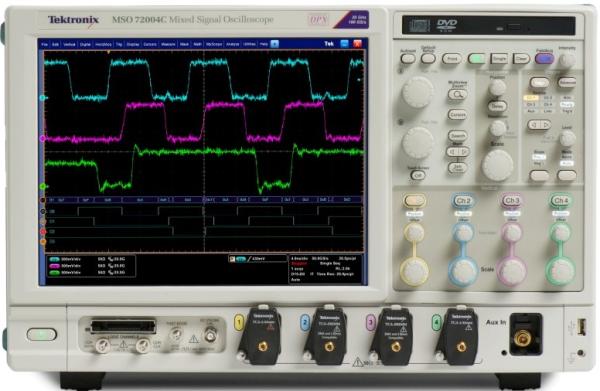

Pre-Owned Tektronix MSO72004C Mixed Signal Oscilloscope with 20GHz Bandwidth 4 Channels and 100 GS/s Sample Rate
Pre-Owned Tektronix MSO72004C Mixed Signal Oscilloscope with 20GHz Bandwidth 4 Channels and 100 GS/s Sample Rate
Pre-Owned Tektronix MSO72004C Mixed Signal Oscilloscope with 20GHz Bandwidth 4 Channels and 100 GS/s Sample Rate
Pre-Owned Tektronix MSO72004C Mixed Signal Oscilloscope with 20GHz Bandwidth 4 Channels and 100 GS/s Sample Rate
Pre-Owned Tektronix MSO72004C Mixed Signal Oscilloscope with 20GHz Bandwidth 4 Channels and 100 GS/s Sample Rate
Pre-Owned Tektronix MSO72004C Mixed Signal Oscilloscope with 20GHz Bandwidth 4 Channels and 100 GS/s Sample Rate
Pre-Owned Tektronix MSO72004C Mixed Signal Oscilloscope with 20GHz Bandwidth 4 Channels and 100 GS/s Sample Rate
Pre-Owned Tektronix MSO72004C Mixed Signal Oscilloscope with 20GHz Bandwidth 4 Channels and 100 GS/s Sample Rate
Specifications
Brand Name :
Tektronix
Model Number :
MSO72004C
Certification :
CNAS
Place of Origin :
USA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
Carton
Product name :
Mixed Signal Oscilloscope
Bandwidth :
20GHz
Channels :
4 Ch
Sample Rate :
100 GS/s
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
Used Pre Owned Tektronix MSO72004C Mixed Signal Oscilloscope 20GHz
Product Overview

The MSO/DPO70000 Series oscilloscopes' unique capabilities combined with exceptional signal acquisition performance and analysis accelerate your measurement tasks.

Features and Benefits
  • Superior signal integrity and excellent signal-to-noise ratio - observe the truest representation of your waveform
  • Pinpoint® triggering - minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
  • Visual Trigger - precisely qualify triggers and find unique events in complex waveforms
  • Search and Mark - provides waveform or serial bus pattern matching and software triggers for signals of interest
  • Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY
  • P7700, P7600, and P7500 TriMode™ probing system - perfectly matched signal connectivity, with calibration to probe tip
  • P6780 and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals (MSO70000DX Series only)
Applications
  • Design verification including signal integrity, jitter, and timing analysis
  • Design characterization for high-speed, sophisticated designs
  • Certification testing of serial data streams for industry standards
  • Memory bus analysis and debug
  • Prototype turn-on and power supply verification
  • Research and investigation of transient phenomena
  • Production testing of complex systems
  • Spectral analysis of transient or wide-bandwidth RF signals
Available Options
Option Description
10XL Extended record length: 125 M/Ch
20XL Extended record length: 250 M/Ch
50XL Extended record length: 1 G/Ch (2 Channels) 500 M/Ch (4 Channels)
XL02 Extended record length: Upgrade from standard to 2XL (31.25 M/Ch)
XL05 Extended record length: Upgrade from standard to 5XL (62.5 M/Ch)
XL010 Extended record length: Upgrade from standard to 10XL (125 M/Ch)
XL020 Extended record length: Upgrade from standard to 20XL (250 M/Ch)
XL050 Extended record length: Upgrade from standard to 50XL (1G/Ch (2 Channels) 500M/Ch (4 Channels))
XL25 Extended record length: Upgrade from 2XL (31.25M/Ch) to 5XL (62.5M/Ch)
XL210 Extended record length: Upgrade from 2XL (31.25M/Ch) to 10XL (125M/Ch)
XL220 Extended record length: Upgrade from 2XL (31.25M/Ch) to 20XL (250M/Ch)
XL250 Extended record length: Upgrade from 2XL (31.25M/Ch) to 50XL (1G/Ch (2 Channels) 500M/Ch (4 Channels))
XL510 Extended record length: Upgrade from 5XL (62.5 M/Ch) to 10XL (125 M/Ch)
XL520 Extended record length: Upgrade from 5XL (62.5 M/Ch) to 20XL (250 M/Ch)
XL550 Extended record length: Upgrade from 5XL (62.5 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels))
XL1020 Extended record length: Upgrade from 10XL (125 M/Ch) to 20XL (250 M/Ch)
XL1050 Extended record length: Upgrade from 10XL (125 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels))
XL2050 Extended record length: Upgrade from 20XL (250 M/Ch) to 50XL (1 G/Ch (2 Channels) 500 M/Ch (4 Channels))
Frequently Asked Questions
1. Can you ship order to Canada or Australia?

Yes, we can. We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.
