Specifications
Brand Name :
Tektronix
Model Number :
MSO54B
Certification :
CNAS
Place of Origin :
USA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
Carton
Product name :
Mixed Signal Oscilloscope
Bandwidth :
350 MHz/350 MHz/1 GHz/2 GHz
Channels :
4 Ch
Sample Rate :
6.25 GS/s
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
Tektronix MSO54B Oscilloscope 350 MHz - 2 GHz
4 Analog and Up to 32 Optional Digital Channels
With a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4, 6, or 8 FlexChannel® inputs that let you measure one analog or eight digital signals per channel, the 5 Series MSO is ready for today's toughest challenges, and tomorrow's too. It sets a new standard for performance, analysis, and overall user experience.
The MSO54B, 350 MHz - 2 GHz oscilloscope, provides 4 analog and up to 32 (optional) digital channels, a sample rate of 6.25 GS/s, and 62.5 M - 500 M points of record length.
Technical Specifications
  • Analog Bandwidth: 350 MHz - 2 GHz
  • Function Generator Output: 1 (optional)
  • Analog Channels: 4
  • Digital Channels: Up to 32 (optional)
  • Sample Rate: 6.25 GS/s
  • Record Length: 62.5 M - 500 M
  • Model Number: MSO54B

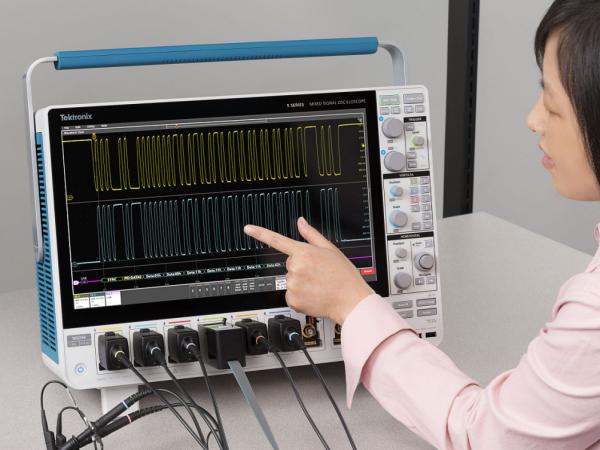

Advanced Touch Interface
Oscilloscopes have included touch screens for years, but the touch interface has been an afterthought. The 5 Series MSO 15.6" display includes a capacitive touchscreen and provides the industry's first oscilloscope user interface truly designed for touch. The touch interactions that you use with phones and tablets, and expect in a touch enabled device, are supported.
  • Drag waveforms left/right or up/down to adjust horizontal and vertical position or to pan a zoomed view
  • Pinch and expand to change scale or zoom in/out in either horizontal or vertical directions
  • Drag items off the edge of the screen to delete them
  • Swipe in from the right to reveal the Results Bar or down from the top to access the menus in the upper left corner of the display
Bandwidth Options
Bandwidth Option Bandwidth
5-BW-350 350 MHz
5-BW-500 500 MHz
5-BW-1000 1 GHz
5-BW-2000 2 GHz
Instrument Options
Instrument Option Advanced Analysis
5-DBLVDS TekExpress automated LVDS test solution (requires options 5-DJA and 5B-WIN)
5-DJA Advanced Jitter and Eye Analysis
5-DPM Digital Power Management
5-DPMBAS Basic Digital Power Management
5-IMDA 6 Inverter Motor Drive Analysis
5-IMDA-DQ0 6 DQ0 feature for Inverter Motor Drive Analysis (requires option 5-IMDA)
5-IMDA-MECH 6 Mechanical measurements for Inverter Motor Drive Analysis (requires option 5-IMDA)
5-MTM Mask and Limit testing
5-PAM3 PAM3 analysis (requires options 5-DJA and 5-WIN) (requires options 5-DJA and 5B-WIN)
5-PS27, 8 Power Solution Bundle (5-PWR, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
5-PS2FRA7, 8 Power Solution Bundle (5-PWR, THDP0200, TCP0030A, two TPP0502, 067-1686-xx deskew fixture)
5-PWR 9 Power Measurement and Analysis
5-SV-BW-1 Increase Spectrum View Capture Bandwidth to 500 MHz
5-SV-RFVT Spectrum View RF vs. Time traces, triggers, Spectrograms, and IQ capture
5-TDR Time Domain Reflectometry
5-UDFLT User Defined Filter Creation Tool
5-VID NTSC, PAL, and SECAM video triggering
5-WBG-DPT Wide Bandgap SiC/GaN Double Pulse Test Measurements and Analysis
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other question?
You can contact us online or leave us messages below.
Product Images
Tektronix MSO54B Mixed Signal Oscilloscope with 350 MHz - 2 GHz Bandwidth, 4 Analog and 32 Digital Channels, and 6.25 GS/s Sample Rate Tektronix MSO54B Mixed Signal Oscilloscope with 350 MHz - 2 GHz Bandwidth, 4 Analog and 32 Digital Channels, and 6.25 GS/s Sample Rate Tektronix MSO54B Mixed Signal Oscilloscope with 350 MHz - 2 GHz Bandwidth, 4 Analog and 32 Digital Channels, and 6.25 GS/s Sample Rate Tektronix MSO54B Mixed Signal Oscilloscope with 350 MHz - 2 GHz Bandwidth, 4 Analog and 32 Digital Channels, and 6.25 GS/s Sample Rate
