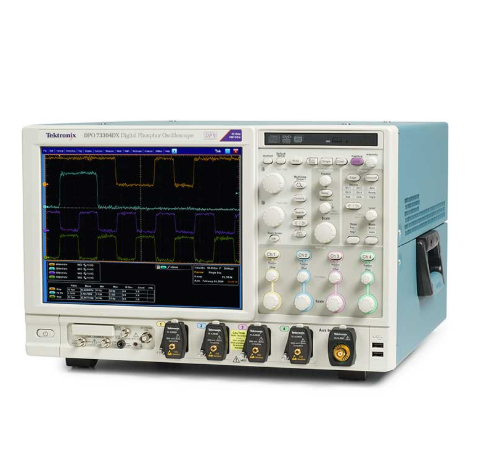

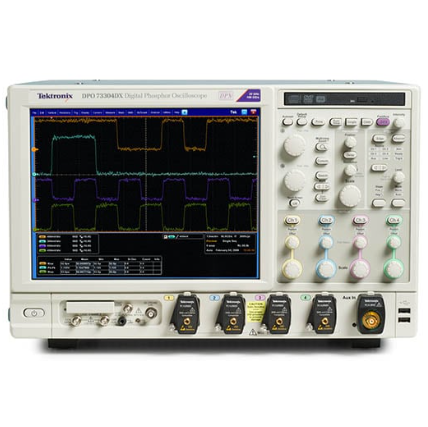

The MSO/DPO70000DX is one of the most advanced oscilloscopes in its class—enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilize measurement and analysis tools for automated compliance testing and other verifications. In addition, the MSO/DPO70000DX is perfect for analog/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000DX for your next project to find and analyze a wide range of mixed-signal anomalies.

• Superior signal integrity and excellent signal-to-noise ratio observe the truest representation of your waveform
• Pinpoint triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
• Visual Trigger – precisely qualify triggers and find unique events in complex waveforms
• Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest
• Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY

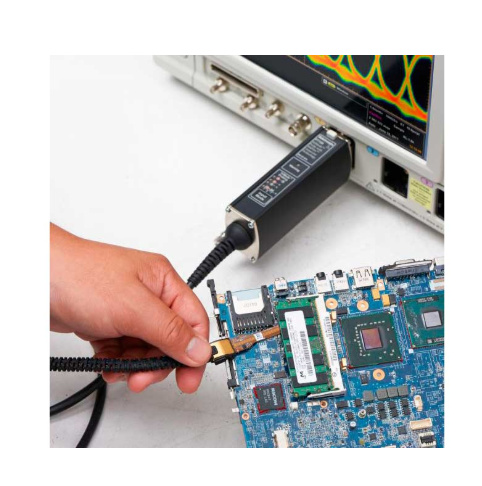

• P7700, P7600, and P7500 TriMode probing system perfectly matched signal connectivity, with calibration to probe tip

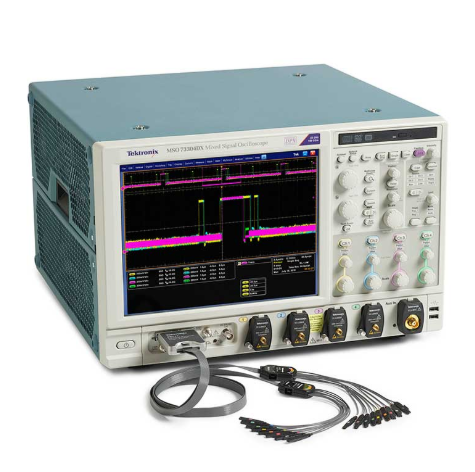

• P6780 and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections t

• Bandwidth enhancement eliminates imperfections in frequency response to the probe tip
• Low jitter noise floor and high vertical accuracy provide additional margin in your measurements
• Wide range of probes simplify complex measurement setups and maintain signal integrity
• Compare optical and electrical signal timing on one screen with calibrated optical probe.
• Quick selection guide

• Model	Analog Bandwidth
  DPO70804DX	8 GHz
  MSO70804DX	8 GHz
  DPO71254DX	12.5 GHz
  MSO71254DX	12.5 GHz
  DPO71604DX	16 GHz
  MSO71604DX	16 GHz
  DPO72004DX	20 GHz
  MSO72004DX	20 GHz
  DPO72304DX	23 GHz
  MSO72304DX	23 GHz
  DPO72504DX	25 GHz
