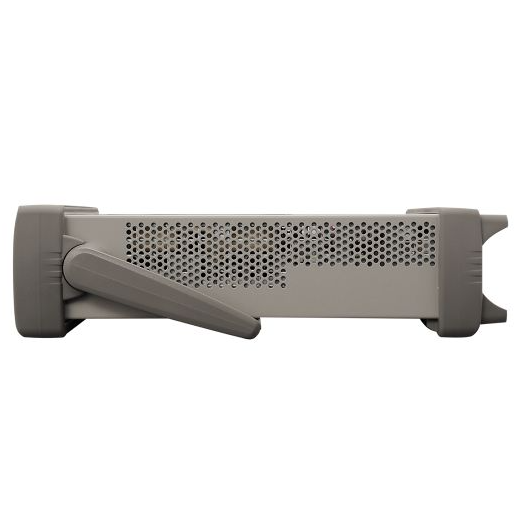

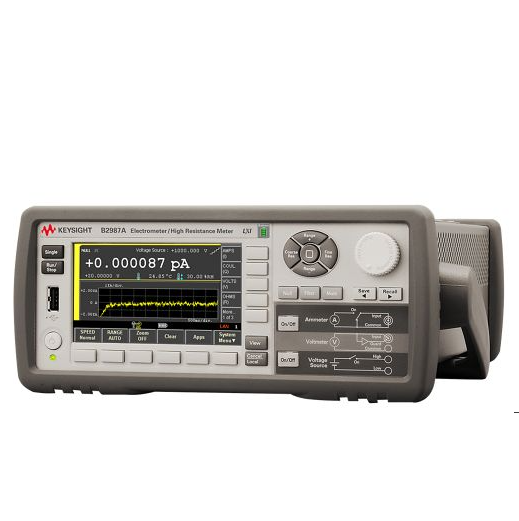

The Keysight B2987A electrometer/high resistance meter enables confident measurement of small currents with 0.01 fA (0.01 × 10⁻¹⁵ A) resolution and resistances up to 10 PΩ (10 × 10¹⁵ Ω). Battery operation eliminates AC line noise from critical measurements. The 4.3" color LCD display with graphical user interface provides data in trend chart and histogram formats. The intuitive front panel captures transient behavior for quick statistical analysis without a PC. The available Keysight setup integrity checker software option compares noise levels of various cabling and fixture arrangements to isolate external noise sources.

• 0.01 fA minimum measurement resolution
• 10 PΩ maximum resistance measurement with 1000 V source
• 20,000 readings/s

• Time domain view to capture transients
• Histogram view to perform quick data analysis
• X-Y plots (I-V, I-t, R-t, Q-t, I-R, and more)

• Optional Keysight setup integrity checker software
• Auto navigation
• Real-time noise monitor
• 0.01 fA (10⁻¹⁷ A) minimum measurement resolution with 2 pA to 20 mA current measurement ranges and 6.5 digits resolution
• < 20 μV burden voltage in lowest current range
• High speed reading rate up to 20,000 rdg/s
• Battery operation models for line noise free measurements
• Built-in ± 1,000 V voltage source
• Measurement resistances up to 10 PΩ (10¹⁶ Ω)
• > 200 TΩ input impedance for up to 20 V voltage measurement
• Independent current and voltage measurement
• Charge measurement down to 2 nC range with 6.5 digits resolution
• Temperature and humidity measurements
• Graphical viewing modes (Meter, Graph, Histogram and Roll View)
• Easy-to-use auto navigation to select optimal range and aperture
• Versatile interface (USB 2.0: LAN, GPIB, LXI Core)
• USB (front): store data, save/recall setup information
• Free PC control software
