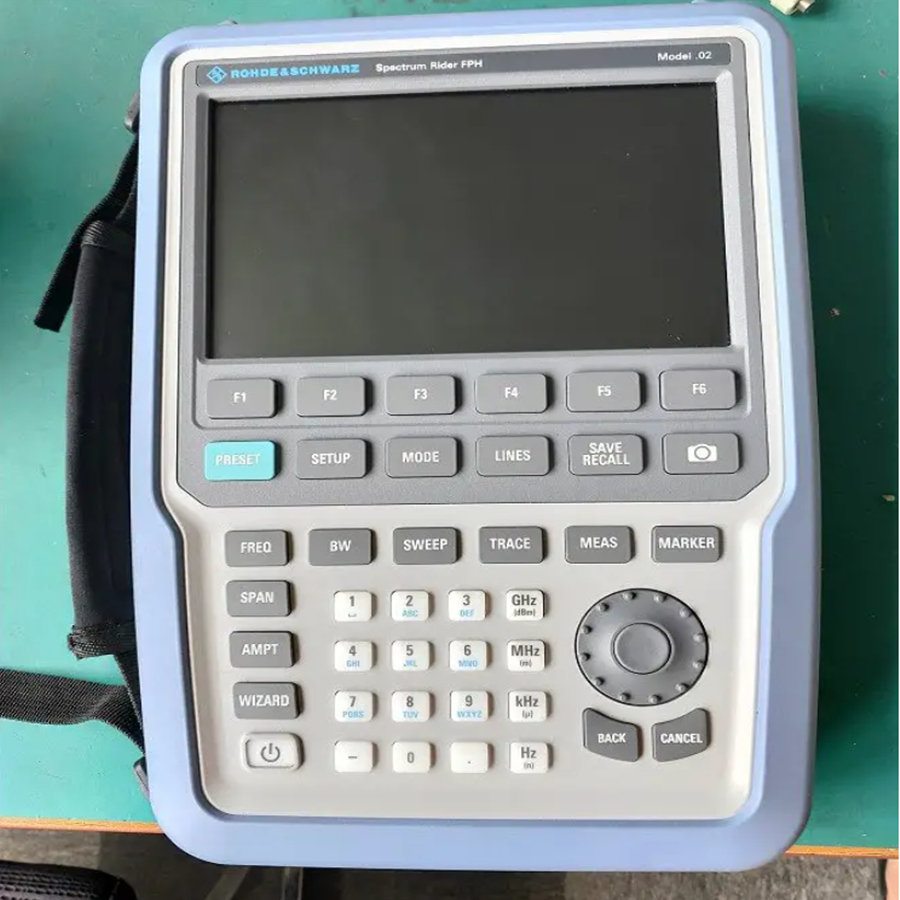

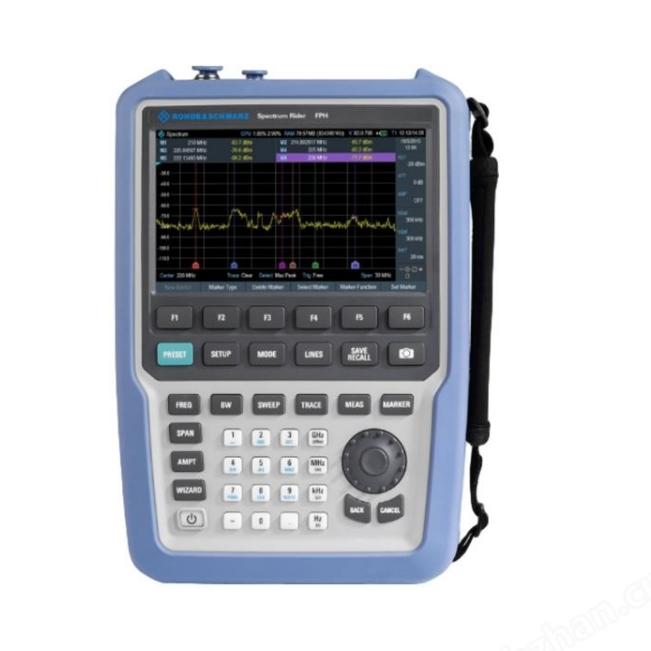

Rohde Schwarz FPH13 Handheld Spectrum Analyzer with 5 kHz to 13 GHz Range 7-inch Color Touchscreen and 6 Hours Battery Life
Rohde Schwarz FPH13 Handheld Spectrum Analyzer with 5 kHz to 13 GHz Range 7-inch Color Touchscreen and 6 Hours Battery Life
Rohde Schwarz FPH13 Handheld Spectrum Analyzer with 5 kHz to 13 GHz Range 7-inch Color Touchscreen and 6 Hours Battery Life
Rohde Schwarz FPH13 Handheld Spectrum Analyzer with 5 kHz to 13 GHz Range 7-inch Color Touchscreen and 6 Hours Battery Life
Rohde Schwarz FPH13 Handheld Spectrum Analyzer with 5 kHz to 13 GHz Range 7-inch Color Touchscreen and 6 Hours Battery Life
Rohde Schwarz FPH13 Handheld Spectrum Analyzer with 5 kHz to 13 GHz Range 7-inch Color Touchscreen and 6 Hours Battery Life
Specifications
Model Number :
FPH-13
Weight :
2.5 kg (with battery)
Supply Ability :
In Stock, Ready to Ship
Frequency Resolution :
1 Hz
Place of Origin :
Germany
Phase Noise :
-110 dBc/Hz @ 10 kHz offset (typical)
Interfaces :
LAN, USB
Delivery Time :
3-7 working days after payment
Packaging Details :
Anti-static foam with export-grade corrugated carton
Battery Operation :
Up to 6 hours
Payment Terms :
T/T,L/C,PayPal
Display :
7-inch Color Touchscreen
Brand Name :
Rohde Schwarz
Certification :
CE
Price :
Contact Us for Pricing
Frequency Range :
5 kHz to 13 GHz
Resolution Bandwidth :
1 Hz to 3 MHz
MOQ :
1 Piece
DANL (Preamp On) :
-163 dBm (1 Hz, typical)
Condition :
Pre-Owned, Fully Tested
Description
Rohde Schwarz FPH13 Handheld Spectrum Analyzer 5 kHz to 13 GHz 7 Inch Color Touchscreen
Rohde & Schwarz FPH-13 Handheld Spectrum Analyzer

The Rohde & Schwarz FPH-13 is a lightweight, battery-powered handheld spectrum analyzer covering 5 kHz to 13 GHz. With a 7-inch color touchscreen, fast measurement speed and high sensitivity, it is ideal for field spectrum analysis, installation, maintenance and interference hunting.

Key Features
  • Frequency range from 5 kHz to 13 GHz
  • 1 Hz frequency resolution and 1 Hz to 3 MHz resolution bandwidth
  • 7-inch color touchscreen display for intuitive operation
  • Lightweight 2.5 kg design with up to 6 hours battery operation
  • High sensitivity with low displayed average noise level (DANL)
  • LAN and USB interfaces for remote control and data transfer
  • Tracking generator and power meter options available
Technical Specifications
Parameter Specification
Frequency Range 5 kHz to 13 GHz
Frequency Resolution 1 Hz
Resolution Bandwidth 1 Hz to 3 MHz
DANL (Preamp On) -163 dBm (1 Hz, typical)
Phase Noise -110 dBc/Hz @ 10 kHz offset (typical)
Display 7-inch Color Touchscreen
Battery Operation Up to 6 hours
Weight 2.5 kg (with battery)
Interfaces LAN, USB
Applications
  • Field spectrum analysis and signal monitoring
  • RF installation and maintenance
  • Interference hunting and spectrum clearing
  • Antenna and cable measurement (with tracking generator)
