Specifications
Lead Time :
15 working days
Burst Frequency :
100 Hz to 1000 kHz
Voltage Dip :
0～265V±10％（1V step）
Display Range :
displayed noise floor to 137 dBµV
Eft :
4.8 kV
Price :
Negotiation
MOQ :
1
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Discharge Resistance :
330Ω
Model :
NSG 3060
Model Number :
NSG3060
AC operating voltage & frequency ranges :
100 V / 120 V / 220 V / 240 V, 47 – 63 Hz
Detectortype :
Peak, Quasi-Peak, RMS
Measurementtype :
Radiated and Conducted Emissions
Test Voltage :
10KV, 12KV, 15KV (option)
Calibration :
Traceable to National Standards
Interface :
IEEE 488 (GPIB)
Brand Name :
TESEQ
Payment Terms :
Western Union, MoneyGram, T/T
Control System :
PLC touch screen
Preselection Filters :
11
Place of Origin :
USA
Supply Ability :
In Stock
Weight :
12 kg
modules :
3（7HU）/ 6 （14 HU）
Description
Product Description

  • Modular, expandable system
  • Surge voltage to 6.6 kV for overtesting
  • Easy to use 7" color touch screen
  • IEC and ANSI coupling methods
  • DTA (Direct Test Access) provides fast standard test settings
  • Parameters can be changed while test is running
  • Wide range of optional test accessories
  • High accuracy switching technology meets ANSI coupling requirements

Surge Combo Wave Pulse

Pulse Conforms to IEC/EN 61000-4-5 and ANSI (IEEE) 62.41

Parameter Value
Pulse voltage (open circuit) 200 V – 6.6 kV (in 1 V steps)
Pulse current (short circuit) 100 A – 3.3 kA
Impedance 2/12 Ω
Polarity Positive / negative / alternate
Pulse repetition 10 s, up to 600 s (in 1 s steps)
Test duration 1 – 9999 pulses, continuous
Phase synchronization Asynchronous, synchronous 0 – 359º (in 1º steps)
Coupling ANSI / IEC / External

Burst (EFT) 5/50 ns

Pulse conforms to IEC/EN 61000-4-4

Parameter Value
Pulse amplitude 200 V – 4.8 kV (in 1 V steps) - open circuit
100 V – 2.4 kV (50 Ω matching system)
Burst frequency 100 Hz – 1000 kHz
Polarity Positive / negative / alternate
Repetition time 1 ms – 4200 s (70 min)
Burst time 1 µs – 1999 s, single pulse, continuous
Test duration 1 s – 1000 h
Phase synchronization Asynchronous, synchronous 0 – 359º (in 1º steps)
Coupling ANSI / IEC / External

PQF Dips & Drops

Conforms to IEC/EN 61000-4-11, IEC/EN 61000-4-29

Parameter Value
Dips & Interrupts From EUT voltage input to 0 V, 0%
Uvar with optional variac Depending on model (VAR 3005)
Uvar with step transformer 0, 40, 70, 80% (INA 650x)
Peak inrush current capability 500 A (at 230 V)
Switching times 1 – 5 μs (100 Ω load)
Event time 20 µs – 1999 s, 1 – 99’999 cycles
Test duration 1 s – 70’000 min, 1 – 99’999 events, continuous
Repetition time 40 µs – 35 min, 1 – 99’999 cycles
Phase synchronization Asynchronous, synchronous 0 – 359º (in 1º steps)

Teseq NSG 3060 Transient Generator EMC Test Equipment For Voltage Dropouts Sinusoidal Noise And Magnetic Field Immunity Testing With Synchronized Function Generators

Packaging & Shipping

We provide carton package and we also will make wooden carton if necessary.

Teseq NSG 3060 Transient Generator EMC Test Equipment For Voltage Dropouts Sinusoidal Noise And Magnetic Field Immunity Testing With Synchronized Function GeneratorsTeseq NSG 3060 Transient Generator EMC Test Equipment For Voltage Dropouts Sinusoidal Noise And Magnetic Field Immunity Testing With Synchronized Function GeneratorsTeseq NSG 3060 Transient Generator EMC Test Equipment For Voltage Dropouts Sinusoidal Noise And Magnetic Field Immunity Testing With Synchronized Function Generators

Our Services
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
Company Information

Meigaolan is a test and measurement solutions and production suppliers, founded in 2003 and located in Shenzhen,China.


Our highly skilled Sale Representatives can assist you with all of your

new and refurbished test equipment needs, providing EMC test solutions

and building your Anechoic chamber.

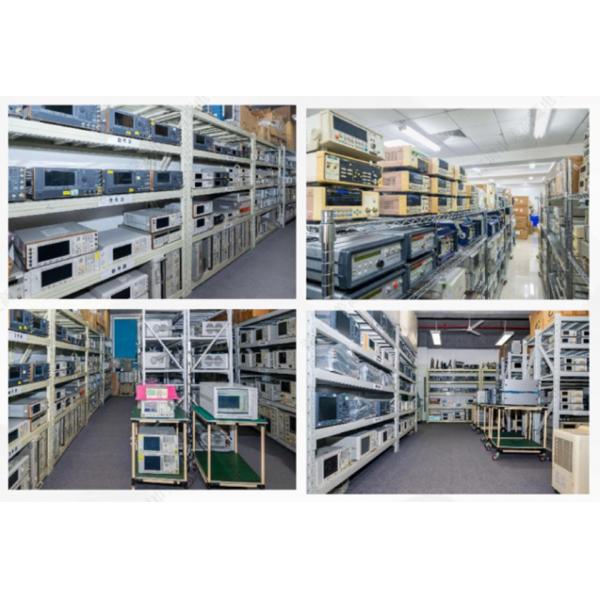

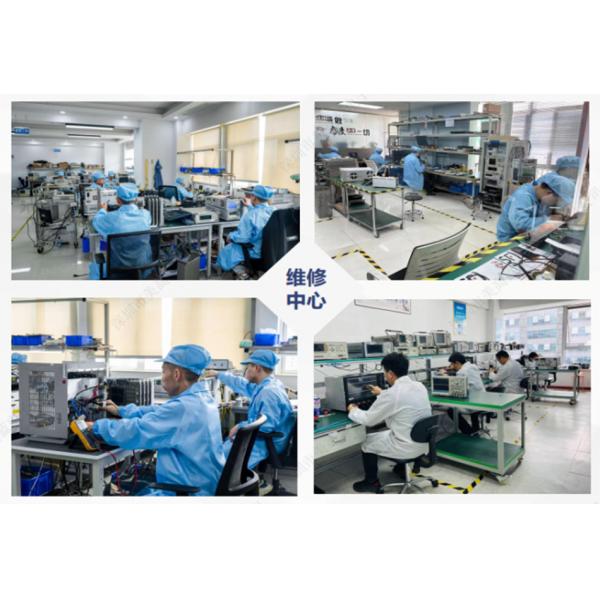

Meigaolan have 6 branch offices,test and repair labs and stocks all round China(Shenzhen,Shanghai,Wuhan,Chengdu,Xi'an,Kushan). Viet Nam branch company established in 2023 to provide more close service to our customers.

Teseq NSG 3060 Transient Generator EMC Test Equipment For Voltage Dropouts Sinusoidal Noise And Magnetic Field Immunity Testing With Synchronized Function Generators

Teseq NSG 3060 Transient Generator EMC Test Equipment For Voltage Dropouts Sinusoidal Noise And Magnetic Field Immunity Testing With Synchronized Function GeneratorsTeseq NSG 3060 Transient Generator EMC Test Equipment For Voltage Dropouts Sinusoidal Noise And Magnetic Field Immunity Testing With Synchronized Function GeneratorsTeseq NSG 3060 Transient Generator EMC Test Equipment For Voltage Dropouts Sinusoidal Noise And Magnetic Field Immunity Testing With Synchronized Function GeneratorsTeseq NSG 3060 Transient Generator EMC Test Equipment For Voltage Dropouts Sinusoidal Noise And Magnetic Field Immunity Testing With Synchronized Function Generators

FAQ

1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.
