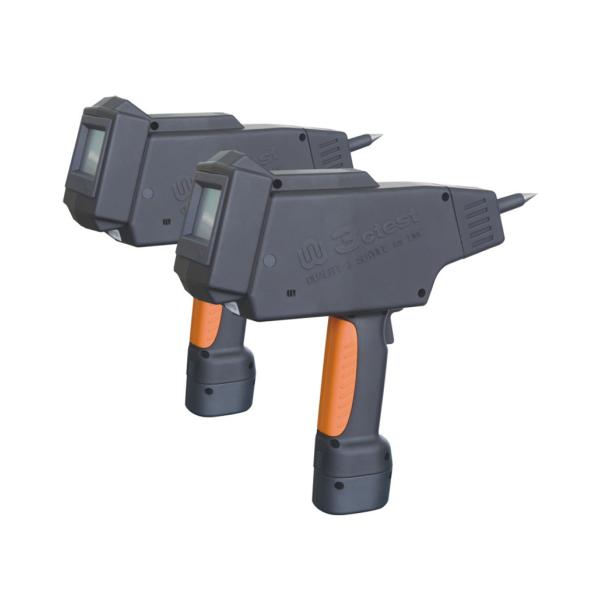

EDS 16H Handheld ESD Simulator Gun with LCD Touch Screen and IEC/EN 61000-4-2 Compliance
EDS 16H Handheld ESD Simulator Gun with LCD Touch Screen and IEC/EN 61000-4-2 Compliance
EDS 16H Handheld ESD Simulator Gun with LCD Touch Screen and IEC/EN 61000-4-2 Compliance
EDS 16H Handheld ESD Simulator Gun with LCD Touch Screen and IEC/EN 61000-4-2 Compliance
Specifications
Brand Name :
3ctest
Model Number :
EDS 16H
Certification :
IEC/EN 61000-4-2
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Type :
ESD Simulator Gun
model :
EDS 16H
Condition :
Pre-Owned/brand new
Functions :
Tested, in Full Working Conditions
Calibration :
Contact us
Description
EDS 16H ESD Simulator Gun LCD Touch Screen Handheld ESD Generator
Product Overview

Electrostatic discharge between human body and metal objects can reach thousands of volts, potentially causing malfunctions or damage to connected electrical equipment and devices.

The EDS 16H is a state-of-the-art handheld ESD generator, representing the first of its kind independently researched and developed in China. Designed according to IEC/EN 61000-4-2 standards, it features ergonomic design, integrated construction, and operates on both battery power and mains power via adapter.

Key Features
  • Ergonomic design for comfortable operation
  • LCD touch screen interface
  • All-in-one design (no base unit required)
  • Changeable R/C networks
  • Automatic polarity switching
  • Long battery life for continuous testing
  • Built-in temperature and humidity monitoring
  • Comprehensive standards library
  • Intelligent detection of air discharge failure
Compliance Standards
  • Bellcore GR-1089-Core
  • ISO 14304
  • IEC 61000-6-1, IEC 61000-6-2
  • IEC 61326, IEC 61340-3-1
  • IEC 61000-4-2
  • GB/T 17626.2
  • EN 61000-6-1, EN 61000-6-2
  • EN 61000-4-2, EN 61326
  • ITU-T K.20
Technical Specifications
Contact Discharge 200 V - 30,000 V (±5%)
Air Discharge 200 V - 30,000 V (±5%)
Voltage Step 100 V
Hold Time > 5 s
Polarity Positive, Negative
Repetition Frequency Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger Mode Manual / Automatic
Pulse Counter 1-9999
Contact Discharge Network 150pF / 330 ohm
Rise Time 0.8 ns +/- 25%
Total Weight Approx. 12.0 kg
Gun Weight Approx. 2.0 kg
Operating Temperature 15℃ - 35℃
Operating Humidity 30% - 60%
Air Pressure 86 kPa - 106 kPa
Power Supply 100 V - 240 V (±10%); 50/60 Hz
Our Service Commitment

Complete one-stop service from manufacturing to shipping:

  • Inquiries responded within 24 hours
  • Well-trained English-speaking support staff
  • Distributor support for custom designs and current models
  • Complete protection of your sales area, design concepts, and private information
Frequently Asked Questions
Can you ship orders to Canada or Australia?

Yes, we ship worldwide to all destinations.

What delivery methods do you use and what is the delivery time?

We ship via EMS, DHL, FedEx, UPS, and TNT with tracking numbers. Standard delivery time is 4-7 business days.

What is your payment term?

100% T/T payment before shipment.

How can I ask additional questions?

You can contact us online or leave messages through our contact form.
