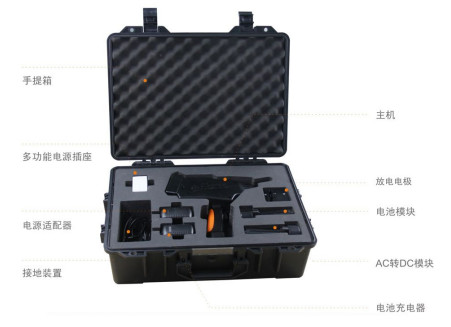

EDS 20H Handheld ESD Simulator Gun with Ergonomic Design LCD Touch Screen and Battery Powered for Electrostatic Discharge Testing
EDS 20H Handheld ESD Simulator Gun with Ergonomic Design LCD Touch Screen and Battery Powered for Electrostatic Discharge Testing
EDS 20H Handheld ESD Simulator Gun with Ergonomic Design LCD Touch Screen and Battery Powered for Electrostatic Discharge Testing
EDS 20H Handheld ESD Simulator Gun with Ergonomic Design LCD Touch Screen and Battery Powered for Electrostatic Discharge Testing
Specifications
Brand Name :
3ctest
Model Number :
EDS 20H
Certification :
IEC/EN 61000-4-2
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Contact Discharge :
150 pF / 330 Ω
Voltage Step :
100 V
Pulse :
1 – 9,999
Trigger Mode :
Manual / automatic
Operating Temperature :
15 ℃-35 ℃
Weight :
Approx. 8.5 kg
Weight(EDS gun) :
Approx. 1.8 kg
Description
EDS 20H Handheld Electrostatic Discharge Simulator Ergonomic ESD Simulator Gun
Electrostatic discharge between human body and metal objects can reach thousands of volts, potentially causing malfunctions or damage to connected electrical equipment. The EDS 20H Handheld Electrostatic Discharge Simulator is a state-of-the-art ESD generator, representing the first of its kind independently researched and developed in China. Designed according to IEC/EN 61000-4-2 standards, it features ergonomic design, integrated construction, battery power with optional mains adapter operation, intuitive touch screen controls, built-in temperature and humidity monitoring for safe operation, and stable performance suitable for various testing environments.
Key Features
  • Ergonomic design for comfortable handling
  • LCD touch screen interface
  • All-in-one design (no base unit required)
  • Changeable R/C networks
  • Automatic polarity switching
  • Long battery life for continuous testing
  • Temperature and humidity monitoring
  • Built-in standards library
  • Intelligent detection of air discharge failure
Compliance Standards
  • Bellcore GR-1089-Core
  • ISO 14304
  • IEC 61000-6-2
  • IEC 61000-6-1
  • IEC 61326
  • IEC 61340-3-1
  • IEC 61000-4-2
  • GB/T 17626.2
  • EN 61000-6-1
  • EN 61000-6-2
  • EN 61000-4-2
  • EN 61326
  • ITU-T K.20
Technical Parameters
Parameter Specification
Contact discharge 1 kV - 20 kV (±5%)
Air discharge 1 kV - 20 kV (±5%)
Voltage step 100 V
Hold time >5 s
Polarity Positive, negative
RC module display LCD display
Humidity & Temperature Built-in hygrothermograph for recording and protection
Repetition frequency Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger mode Manual / automatic
Pulse count 1 - 9,999
Contact discharge network 150 pF / 330 Ω
Summary Procedure Test according to different standard levels
Rise Time 0.8 ns ± 25%
Quick Start Test Program Simple and easy to reset data online
Evaluation Procedure Contact discharge test at 20 Hz, evaluate DUT test points
Standard Test Procedure According to IEC / EN 61000-4-2
General Parameters
Parameter Specification
Operating Temperature 15 ℃ - 35 ℃
Operating Humidity 30% - 60%
Operating Air Pressure / Power 100 V / 240 V (±10%); 50 / 60Hz
Default: 220 V, 50 Hz (Mainland China)
Total Weight Approx. 8.5 kg
EDS Gun Weight Approx. 1.8 kg
Our Service
One-stop service from manufacturing to shipping.

• Your inquiry related to our products or prices will be replied within 24 hours
• Well-trained and experienced staff to answer all your inquiries in fluent English
• Distributor support offered for unique designs and current models
• Protection of your sales area, design ideas, and private information
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we ship orders worldwide.
What delivery methods do you use and what is the delivery time?
We ship via EMS, DHL, FedEx, UPS, TNT with tracking numbers. Standard delivery time is 4-7 business days.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other questions?
You can contact us online or leave us messages through our contact form.
