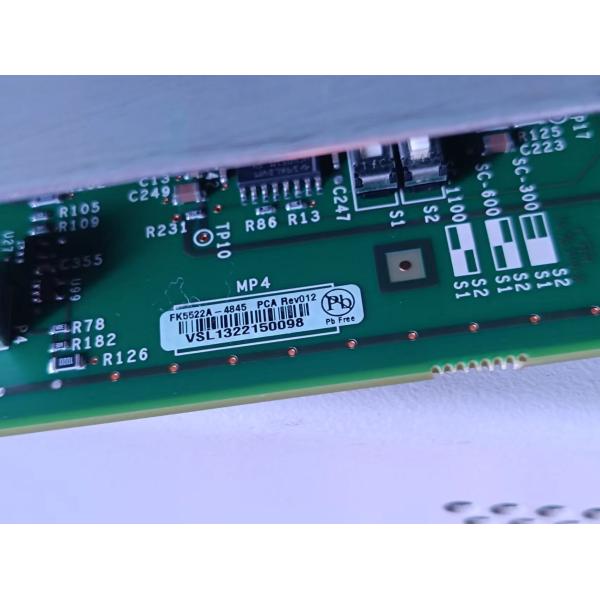

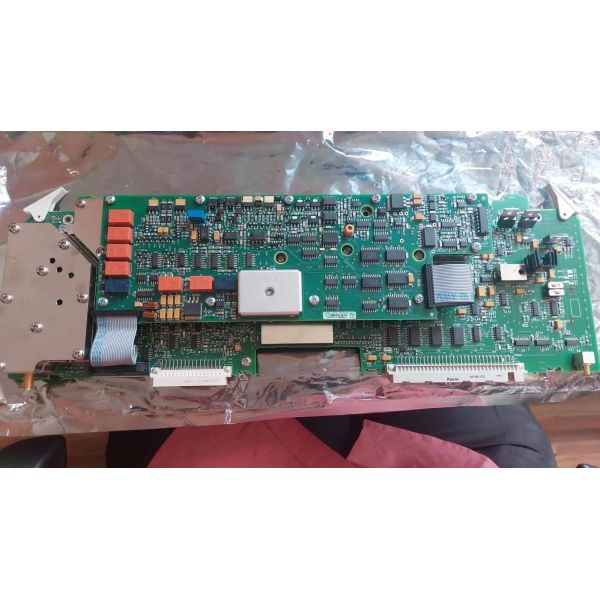

The SC600 Oscilloscope Board is designed for use with Fluke 5520A and 5522A Calibrator Bench Multimeters. The Fluke 5520A builds on the 5500A's capabilities, extending its workload coverage even further with improved accuracy, expanded ranges, and capability to calibrate 5½ and 6½ digit multimeters.

This calibrator can handle virtually all high-performance workload requirements, including:

• Handheld and bench meters (analog and digital) up to 6½ digits
• Thermocouple and RTD thermometers
• Process calibrators
• Data loggers
• Strip and chart recorders
• Watt meters
• Power harmonics analyzers
• Current clamps and clamp meters
• Analog or digital handheld and bench oscilloscopes (with options)
• Panel meters
• Graphical multimeters
• Power meters, disturbance analyzers, power quality monitors, recorders and other power quality related equipment (with option)

• DC voltage range: 0 - 1100V
• DC current range: 0 - 11A
• Resistance range: 0 - 330 MOhm
• AC voltage range: 1.0mV - 1000V
• AC current range: 0.033mA - 11A
• Capacitance range: 0.33nf - 1.1mf

• Voltage DC Range: 0 to ±1020V
• Current DC Range: 0 to ±20.5A
• Resistance Range: 0 to 1100 MΩ
• Voltage AC Range: 1 mV to 1020V; 10 Hz to 500 kHz, Sine
• Current AC Range: 29 mA to 20.5A; 10 Hz to 30 kHz, Sine
• Capacitance Range: 0.19 nF to 110 mF
• Thermocouple Source and Measure Range: -250°C to +2316°C (11 types)
• RTD Source Range: -200°C to +630°C (8 types)
• DC Power Range: 10.9 mW to 20.5 kW
• AC Power Range: 10.9 mW to 20.5 kW; 45-65 Hz, PF=1
• Phase Range: 0 to ± 179.99°; 10 Hz to 30 kHz
• Frequency Range: 0.01 Hz to 2.0 MHz
• Power Consumption: 600 VA

• Warm up Time: Twice the time since last warmed up, to a maximum of 30 minutes
• Settling Time: Less than 5 seconds for all functions and ranges except as noted
• Standard Interfaces: IEEE-488 (GPIB), RS-232
• Safety: 12,200m (40,000 ft) maximum
• Analog Low Isolation: 20V
• EMC: Designed to comply with IEC 61326-1/1997

• Operating Temperature: 0°C to 50°C
• Calibration Temperature (tcal): 15°C to 35°C
• Storage Temperature: -20°C to 70°C
• Temperature Coefficient: 10% of the 90-day specification per °C outside tcal ± 5°C
• Operating Relative Humidity: <80% to 30°C, <70% to 40°C, <40% to 50°C
• Storage Relative Humidity: <95%, non-condensing
• Operating Altitude: 3,050m (10,000 ft) maximum
• Non-operating Altitude: 12,200m (40,000 ft) maximum

• Line Voltage (selectable): 100V, 120V, 220V, 240V
• Line Frequency: 47 to 63 Hz
• Line Voltage Variation: +10% about line voltage setting

• Height: 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet
• Width: 43.2 cm (17 in), standard rack width
• Depth: 47.3 cm (18.6 in) overall
