Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer
Specifications
Brand Name :
Keysight
Model Number :
N9952A
Place of Origin :
Malaysia
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product Name :
Handheld Microwave Analyzer
Frequency :
50 GHz
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Portable :
yes
Description
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz
Product Overview
The Portable Keysight (Agilent) N9952A FieldFox Handheld Microwave Analyzer is the industry's first 50 GHz handheld microwave analyzer. This rugged, all-in-one instrument combines multiple measurement capabilities in a lightweight portable package weighing only 7.1 lb (3.2 kg).
Key Features
  • 50 GHz maximum frequency capability
  • Industry's first 50 GHz handheld microwave analyzer
  • Standard model includes cable and antenna analyzer
  • Expandable capabilities with optional VNA, spectrum analyzer, built-in power meter, and vector voltmeter
  • Measure DTF and TDR in a single sweep to save time
  • Simultaneously measure all four S-parameters
  • Accurate spectrum analyzer measurements (±0.5 dB) without warm-up requirement
  • Easy average and pulse power measurement with USB sensor
  • Lightest all-in-one analyzer at only 7.1 lb (3.2 kg)
Technical Specifications
Maximum Frequency 50 GHz
Minimum Frequency 300 kHz
SA Start Frequency 5 kHz
System Dynamic Range 110 dB
Best Speed at 1001 Point, 1 Sweep 478 μs/pt
Output Power 4 dBm
Trace Noise 0.004 dB
Number of Built-In Ports 2 ports
Instrument Type Combination Analyzer
Cable and Antenna Analyzer Yes - Standard
Spectrum Analyzer Yes - Optional
Vector Network Analyzer Yes - Optional
Additional Features
Additional CAT/VNA Based Features Vector Voltmeter, Mixed-Mode S-Parameters, DTF/TDR Cable Measurements
Additional SA Based Features Built-In Power Meter, Extended Range Transmission Analysis (ERTA), Real-Time Spectrum Analysis, Noise Figure Measurements, Over-The-Air Measurements
System Features Built-In DC Source, GPS Receiver - Internal Only, Remote Control Capability
Power Measurement Using USB Sensor CW or Swept-Frequency, Frequency-Offset, RF Pulse Test with Peak Sensor
Performance Specifications
Standard Attenuator Range 30 dB
Standard Attenuator Step 5 dB
DANL @1 GHz -159 dBm
Maximum Analysis Bandwidth 10 MHz
Phase Noise @1 GHz (1 MHz offset) -113 dBc/Hz
Phase Noise @1 GHz (10 kHz offset) -111 dBc/Hz
Phase Noise @1 GHz (30 kHz offset) -108 dBc/Hz
Spur Free Dynamic Range > 104 dB
TOI @1 GHz (3rd Order Intercept) +13 dBM
Available Options
Option Code Description
010 Vector Network Analyzer Time Domain
030 Remote Control Capability
208 USB Power Sensor Measurements Versus Frequency
209 Extended Range Transmission Analysis (ERTA)
210 Vector Network Analyzer Transmission/Reflection
211 Vector Network Analyzer Full 2-port S-parameters
212 Mixed-Mode S-parameters
215 TDR Cable Measurements
233 Spectrum Analyzer
235 Pre-amplifier
236 Interference Analyzer and Spectrogram
238 Spectrum Analyzer Time Gating
302 External USB Power Sensor Support
307 GPS Receiver
308 Vector Voltmeter
309 DC Bias Variable Voltage Source
310 Built-in Power Meter
312 Channel Scanner
330 Pulse Measurements
350 Real-time Spectrum Analyzer (RTSA)
351 I/Q Analyzer (IQA)
352 Indoor and Outdoor Mapping
355 Analog Demodulation
356 Noise Figure (NF)
358 EMF Measurements
360 Phased Array Antenna Control
370 Over-the-Air (OTA) LTE FDD
377 Over-the-Air (OTA) 5GTF
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other question?
You can contact us online or leave us messages below.

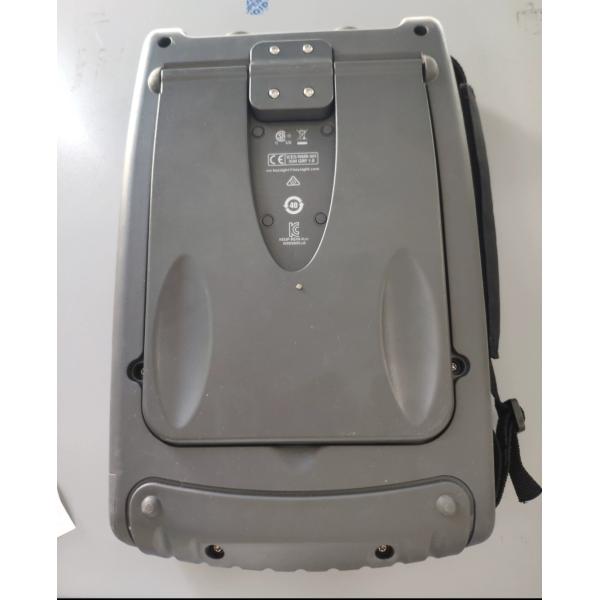

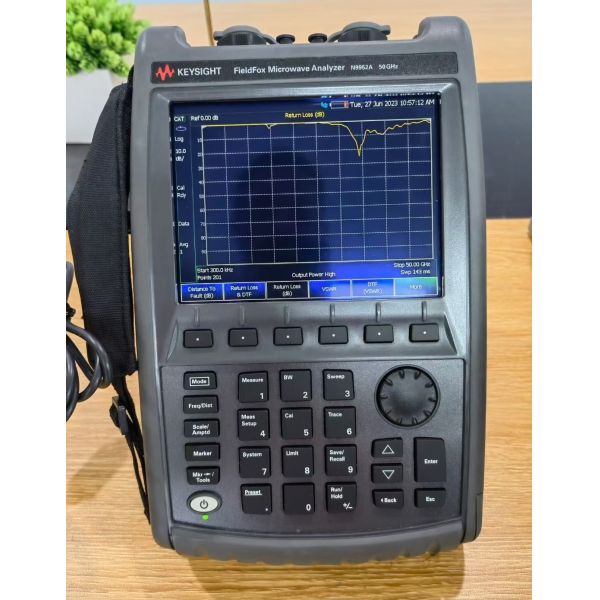

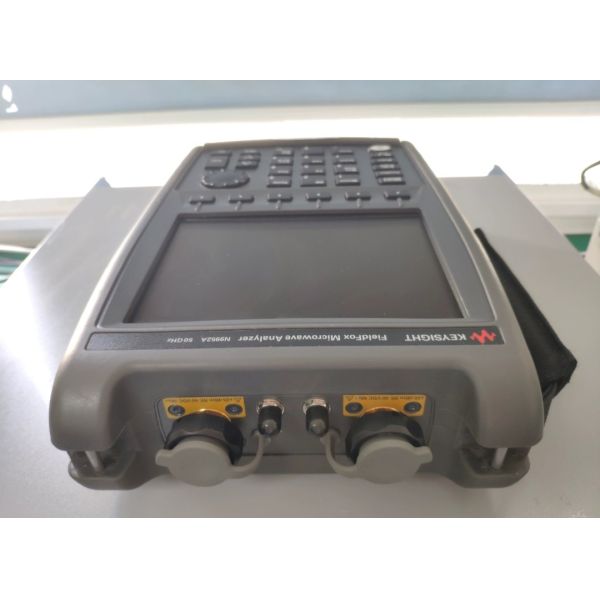

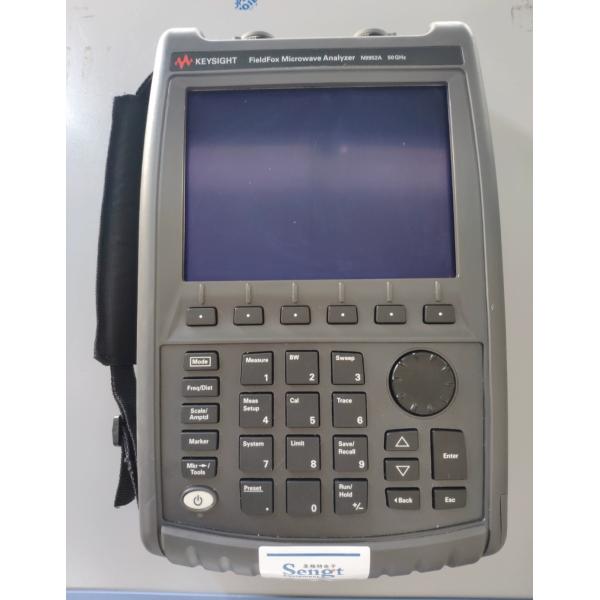

Product Images
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer with 50 GHz and Vector Network Analyzer
