Specifications
Brand Name :
Fluke
Model Number :
5520A
Certification :
FCC
Place of Origin :
USA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
carton
Product name :
Multi Product Calibrator
Amplitude Signals :
up to 600 MHz
Repair Support :
Calibration only
Calibration Support :
Contact us
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
Portable RS-232 Multi Function Calibrator Bench Multimeters Fluke 5520A
Fluke 5520A High Performance Multi-product Calibrator
The Fluke 5520A builds on the 5500A's capabilities, extending its workload coverage even further. Its improved accuracy, expanded ranges, and capability to calibrate 5 1/2 and 6 1/2 digit multimeters can cover virtually all your high-performance workload, including:
  • Handheld and bench meters (analog and digital) up to 6 1/2 digits
  • Thermocouple and RTD thermometers
  • Process calibrators
  • Data loggers
  • Strip and chart recorders
  • Watt meters
  • Power harmonics analyzers
  • Current clamps and clamp meters
  • Analog or digital handheld and bench oscilloscopes (with options)
  • Panel meters
  • Graphical multimeters
  • Power meters, disturbance analyzers, power quality monitors, recorders and other power quality related equipment (with option)
Basic Capabilities
DC voltage range 0 - 1100V
DC current range 0 - 11A
Resistance range 0 - 330 MOhm
AC voltage range 1.0mV - 1000V
AC current range 0.033mA - 11A
Capacitance range 0.33nf - 1.1mf
Additional Features
Voltage DC Range 0 to ±1020V
Current DC Range 0 to ±20.5A
Resistance Range 0 to 1100 MΩ
Voltage AC Range 1 mV to 1020V; 10 Hz to 500 kHz, Sine
Current AC Range 29 mA to 20.5A; 10 Hz to 30 kHz, Sine
Capacitance Range 0.19 nF to 110 mF
Thermocouple Source and Measure Range -250°C to +2316°C (11 types)
RTD Source Range -200°C to +630°C (8 types)
DC Power Range 10.9 mW to 20.5 kW
AC Power Range 10.9 mW to 20.5 kW; 45-65 Hz, PF=1
Phase Range 0 to ± 179.99°; 10 Hz to 30 kHz
Frequency Range 0.01 Hz to 2.0 MHz
Power Consumption 600 VA
General Specifications
Warm up Time Twice the time since last warmed up, to a maximum of 30 minutes
Settling Time Less than 5 seconds for all functions and ranges except as noted
Standard Interfaces IEEE-488 (GPIB), RS-232
Safety 12,200m (40,000 ft) maximum
Analog Low Isolation 20V
EMC Designed to comply with IEC 61326-1/1997
Environmental Specifications
Temperature Performance
Operating 0°C to 50°C
Calibration (tcal) 15°C to 35°C
Storage -20°C to 70°C
Temperature Coefficient Temperature coefficient for temperatures outside tcal ± 5°C is 10% of the 90-day specification (or 1-year, as applicable) per °C
Relative Humidity
Operating <80% to 30°C, <70% to 40°C, <40% to 50°C
Storage <95%, non-condensing
Altitude
Operating 3,050m (10,000 ft) maximum
Non-operating 12,200m (40,000 ft) maximum
Line Power
Line Voltage (selectable) 100V, 120V, 220V, 240V
Line Frequency 47 to 63 Hz
Line Voltage Variation + 10% about line voltage setting
Dimensions
Height 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet on bottom of unit
Width 43.2 cm (17 in), standard rack width
Depth 47.3 cm (18.6 in) overall
Product Images
Portable Fluke 5520A Multi-Product Calibrator with RS-232 Interface and 600 MHz Capability Portable Fluke 5520A Multi-Product Calibrator with RS-232 Interface and 600 MHz Capability Portable Fluke 5520A Multi-Product Calibrator with RS-232 Interface and 600 MHz Capability
Available Options
Option Code Description
06 bit serial asynchronous interface (RS-232-C)
1613006 3YR CAL & REPAIR
525A/LEADS THERMOCOUPLE AND TEST LEADS
5500/CAL-L LICENSE FOR MET/BASE SOFTWARE
CASE 5500A/CASE - TRANSIT CASE
Coil 50 Turn Coil
MET/BASE-6 METROLOGY SOFTWARE, REQUIRES MET/CAL-L
MET/BASE-7 MET BASE 7 SOFTWARE
MET/CAL-L CAL SOFTWARE USER LICENSE
PQ Power Quality Option
PQ/6 POWER QUALITY AND 600MHZ SCOPE CAL OPTS
RAC3YR REPAIR & ACCR CAL 3YRS
SC1100 1100 MHz Oscilloscope Calibrator
SC2 CALIBRATION SERVICE FOR 2 YEARS
SC300 300 MHz Oscilloscope Calibrator
SC600 600 MHz Oscilloscope Calibrator
Z540X2 2 YRS CALIBRATION
Company Information
Meigaolan is a test and measurement solutions and production supplier, founded in 2003 and located in Shenzhen, China.
Our highly skilled Sale Representatives can assist you with all of your new and refurbished test equipment needs, providing EMC test solutions and building your Anechoic chamber.

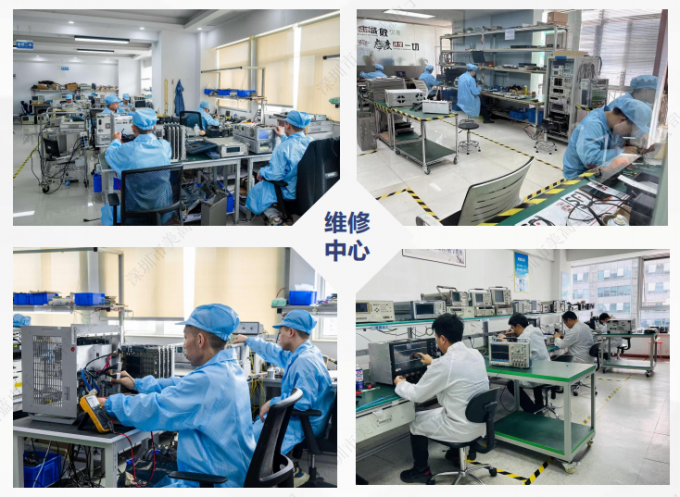

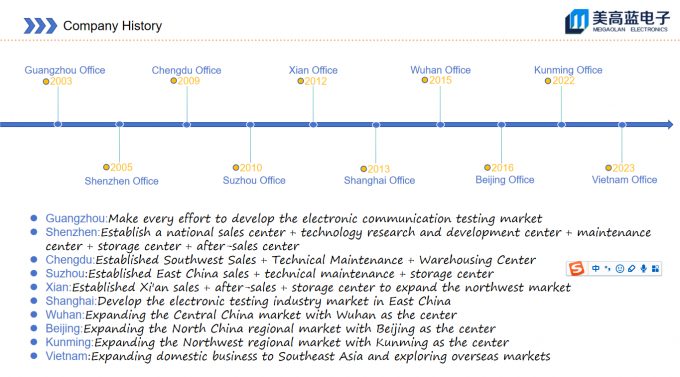

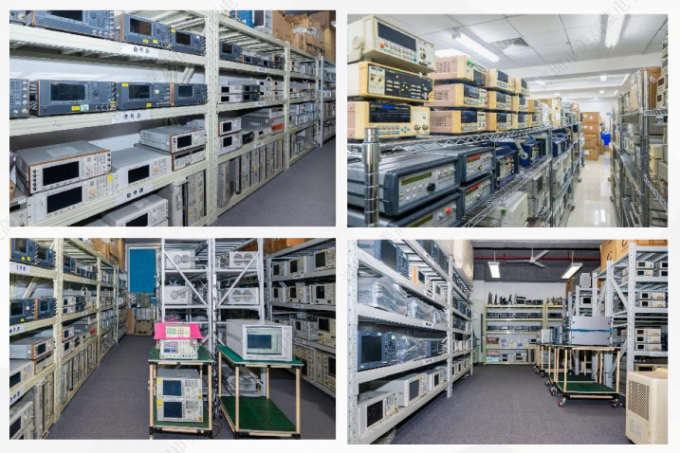

Meigaolan have 6 branch offices, test and repair labs and stocks all round China (Shenzhen, Shanghai, Wuhan, Chengdu, Xi'an, Kushan). Viet Nam branch company established in 2023 to provide more close service to our customers.
