Specifications
Brand Name :
Keysight (Agilent)
Model Number :
N9020B
Place of Origin :
Malaysia
MOQ :
1 set
Payment Terms :
T/T
Price :
Negotiation
Supply Ability :
in stock
Product name :
MXA Signal Analyzer
Frequency :
10 MHz to 50 GHz
Bandwidth Options :
25 standard, 40, 85, 125, 160 MHz
Benchtop :
Yes
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
Practical Keysight Spectrum Analyzers, N9020B Keysight MXA Signal Analyzer
Keysight Agilent N9020B MXA Signal Analyzer Multi-touch 10 Hz to 50 GHz

Built for wireless device test, the MXA signal analyzer helps you characterize signals from virtually any wireless device quickly and confidently with up-to-date parametric or RF functional tests. The intuitive multi-touch interface minimizes measurement complexity, even when working with cutting-edge devices.

Key Features
  • See more with a wide frequency range of 10 Hz to 50 GHz with up to 160 MHz analysis bandwidth
  • Shorten test times with hardware-accelerated power measurements, rapid display updates, rapid marker peak searches, and fast sweeps
  • Get complete signal characterization by capturing longer I/Q samples
  • Accurately analyze complex signals with EVM as low as 0.3 percent (-50 dB)
  • Simplify testing with one-button measurements using PathWave X-Series measurement applications
  • Capture elusive or transient signals with full-band real-time spectrum analysis
Available Options
Option Code Description
503Frequency Range, 10 Hz to 3.6 GHz
508Frequency Range, 10 Hz to 8.4 GHz
513Frequency Range, 10 Hz to 13.6 GHz
526Frequency range, 20 Hz to 26.5 GHz
532Frequency Range, 10 Hz to 32 GHz
544Frequency Range, 10 Hz to 44 GHz
550Frequency Range, 10 Hz to 50 GHz
89601B89600 VSA Software
A6JANSI Z540-1-1994 Calibration
AMGCalibration + Uncertainties + Guardbanding (Accredited)
B1AAnalysis Bandwidth, 125 MHz
B1XAnalysis Bandwidth, 160 Mhz
B1Y
B25Analysis Bandwidth, 25 MHz
B40Analysis Bandwidth, 40 MHz
B85Analysis Bandwidth, 85 MHz
BBAI/Q Baseband Inputs, Analog
BV0007BPathwave Benchview
CR3Connector, Wideband IF Output
CRPConnector, Programmable Rear IF Output
DP2Deep Capture Memory
EA3Electronic attenuator up to 3.6 GHz
EDPEnhanced Display Package License
EMCBasic EMC Functionality License
EP2
ESCExternal Source Control License
EXMExternal Mixing
FP2Fast Power, Up To 40 MHz Bandwidth
FT1Frequency Mask Trigger, Basic Detection License
FT2Frequency Mask Trigger, Optimum Detection License
MPBRequired for wide analysis bandwidth measurements with Option B40, B85, B1A, or B1X at frequency > 3.6 GHz; also enables fast sweep capability licensed as
N6141CEMI Measurement Application, Multi-Touch UI
N6171AMATLAB Software
N9054CVMA Vector Modulation Analysis Application, Multi-Touch UI
N9061CRemote Language Compatibility Application, Multi-Touch UI
N9062CSCPI Language Compatibility Application, Multi-touch UI
N9063CAnalog Demodulation Measurement Application, Multi-touch UI
N9067CPulse Measurement Application, Multi-touch UI
N9068EM0EPhase Noise Measurement Application, Multi-touch UI
N9069CNoise Figure Measurement Application, Multi-touch UI
N9071CGSM / EDGE / Evo Measurement Application, Multi-Touch UI
N9073CW-CDMA/HSPA/HSPA+ Measurement Application, Multi-touch UI
N9077EWLAN 802.11a/b/g/j/p/n/ac/af/ah/ax Measurement Application, Multi-Touch UI
N9080CLTE/LTE-Advanced FDD Measurement Application, Multi-touch UI
N9081CBluetooth Measurement Application, Multi-Touch UI
N9082CLTE / LTE-Advanced TDD Measurement Application, Multi-touch UI
N9082EM0E LTE and LTE-Advanced TDD Measurement Application Node-locked perpetual license
N9084CShort Range Communications Measurement Application, Multi-Touch UI
NF2Noise Floor Extension
P03Preamplifier, 3.6 GHz
P08Preamplifier, 8.4 GHz
P13Preamplifier, 13.6 GHz
P26Preamplifier, 26.5 GHz
P32Preamplifier, 32 GHz
P44Preamplifier, 44 GHz
P50Preamplifier, 50 GHz
PFRPrecision Frequency Reference
PRCPortable Configuration
RBEResolution Bandwidth Extended
RT1Real-time analysis up to maximum available BW, basic detection license
RT2Real-time analysis up to maximum available BW, optimum detection, license
RTLReal Time Link is Standard
RTRReal-Time Spectrum Recorder And Analyzer Application Example, License
SF1Security Features, Exclude Launching Programs
SF2Security Features, Prohibit Saving Results
SS1Additional removable solid state drive, Win10
SSDAdditional Removable Solid State Drive
TDSTime Domain Scan
UK6Commercial Calibration Certificate with Test Data
YASY-Axis Ouptut
Frequently Asked Questions
1. Can you ship order to Canada or Australia?
Yes, we can. We send orders worldwide.
2. What delivery method do you use? and delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
Product Images

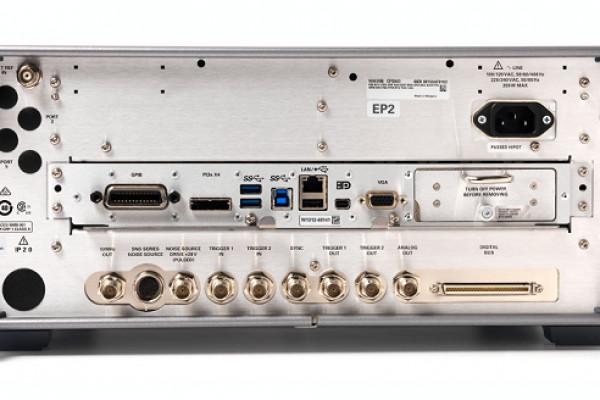

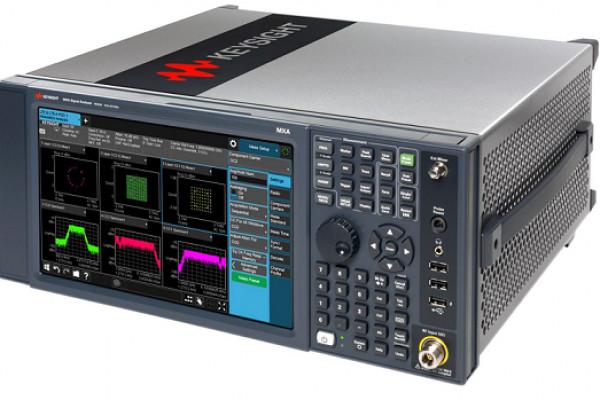

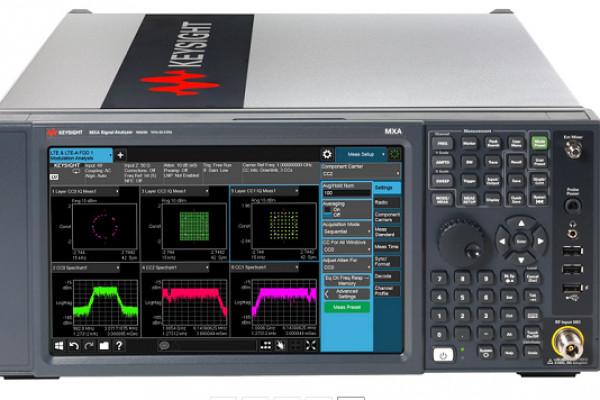

Keysight N9020B MXA Signal Analyzer with 10 Hz to 50 GHz Frequency and 160 MHz Analysis Bandwidth Multi-touch Interface Keysight N9020B MXA Signal Analyzer with 10 Hz to 50 GHz Frequency and 160 MHz Analysis Bandwidth Multi-touch Interface Keysight N9020B MXA Signal Analyzer with 10 Hz to 50 GHz Frequency and 160 MHz Analysis Bandwidth Multi-touch Interface
