Specifications
Brand Name :
Rohde and Schwarz
Model Number :
FSU26
Certification :
FCC
Place of Origin :
Czech Republic
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
Carton
Product name :
Spectrum Analyzer
Frequency :
20 Hz to 26.5 GHz
Form Factor :
Benchtop Portable
Average Noise Level :
-155 dBm
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
Portable FSU26 RF Spectrum Analyzer 20Hz-26.5GHz Rohde And Schwarz

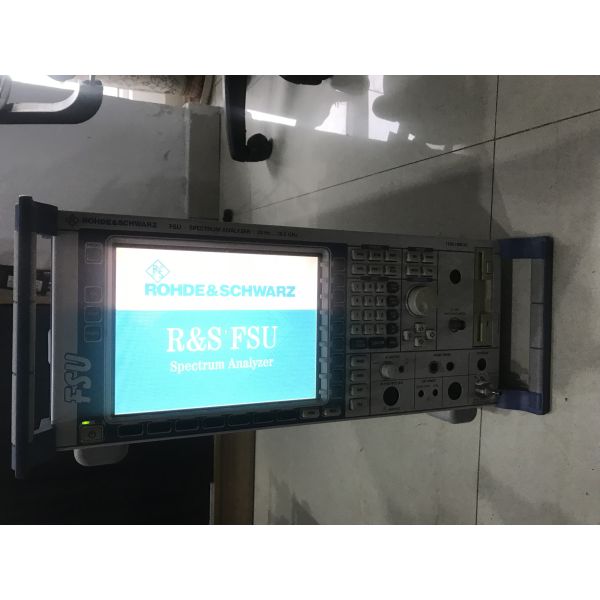

Rohde and Schwarz FSU26 RF Spectrum Analyzer
The R&S FSU spectrum analyzers are performance leaders in dynamic range, phase noise, level accuracy and resolution bandwidth—all essential factors for designing, characterizing, and manufacturing next-generation wireless elements.
Key Features
  • Frequency Range: 20 Hz to 26.5 GHz
  • DANL: -158dBm (1 Hz RBW)
  • Phase Noise (Typ.): -133 dBc @ 10 KHz offset (1 Hz RBW)
  • TOI (Typ.): +25 dBm
  • Resolution Bandwidth: 1 Hz to 50 MHz
  • DANL with Preamplifier option B24: typ. -168 dBm (1Hz RBW) @ 20 GHz
  • Fast ACP in time domain
  • Up to 70 measurements per second (including trace transfer via GPIB)
  • Measurement routines for TOI, MC ACP(R), OBW, CCDF, APD, etc. as standard
  • Application firmware available for GSM/EDGE, Bluetooth, WCDMA/HSPDA/TD-SCDMA, CDMA-2000/1xEV-DV/1xEV-D0, etc.
Specifications & Attributes
Form Factor Rackmount (/ZZA-411)
Application Software Bluetooth (/K8), CDMA2000 (/K82), CDMAONE (/K82), GSM with Edge (/K5), HSDPA (/K74), Noise Figure (/K3), Phase Noise (/K4), TD-SCDMA (/K77)
Average Noise Level -158 dBm
Frequency 10 MHz (/B27 /B4), 640 MHz (/B5), 100 KHz - 3.6 GHz (/B9), 10 MHz - 3.6 GHz (/B25), 20 Hz - 26.5 GHz
Available Options
Option Code Description
1R Rack mount Adapter ZZA-94
B04 OCXO 10MHZ FOR FSU AGING/YEAR
B10 External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of
B12 Output attenuator for tracking generator for FSU, FSQ
B16 LAN interface
B18 Removable Hard Disk (not retrofittable)
B19 B18,vaSecond Hard Disk for FSU-B18 (for FSU-riant 1303.0400.02)
B20 Extended environment specification. Random vibr. 1.9G RMS, 0-55°C (not retrofittable)
B21 LO/ZF connections for external mixers (for FSQ26, FSQ40,FSU26, FSU43, FSU46, FSU50)
B23 Preamplifier 20 dB to FSU26, 3.6 - 26.5 GHz not retrofittable
B24 Preamplifier 30dB, 100 kHz to 50GHz (for FSMR26/43/50, FSQ26/40, FSU26/43/46/50;
B25 Electronic attenuator 0 to 30 dB, Preamplifier 20 dB, 10MHz - 3.6 GHz for FSU, FSQ
B27 FM output, 10 MHz bandwidth
B28 Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
B4 OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR
B5 Output for low phase noise 640MHz reference signal for FSU3, FSU8, FSQ3 und FSQ8
B73 Vector signal analysis for FSU demodulation bandwidth 8 MHz (FSU), broadband demodulation hardware included
B87 Extended linearity specification for specific channel filters
B88 RF hardware option 1 FSU26
B9 Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz
Frequently Asked Questions
1. Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
2. What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other questions?
You can contact us online or leave us messages below.
