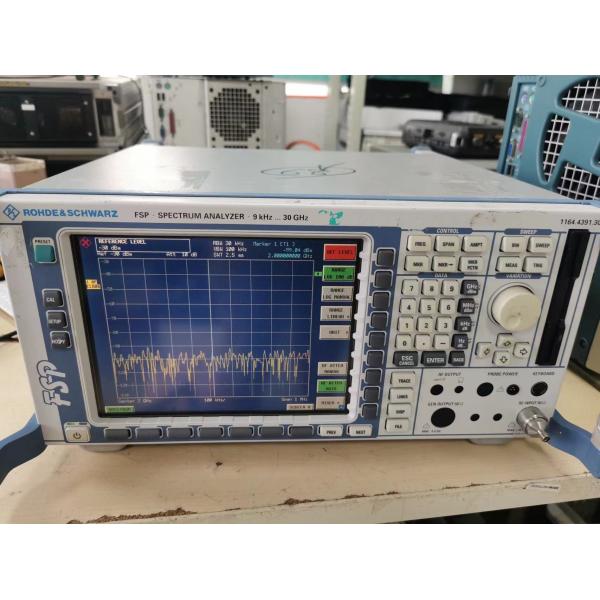

Rohde and Schwarz FSP30 Benchtop RF Spectrum Analyzer 9 KHz to 30 GHz with -155 dBm Noise Level and Pre-Owned Tested
Rohde and Schwarz FSP30 Benchtop RF Spectrum Analyzer 9 KHz to 30 GHz with -155 dBm Noise Level and Pre-Owned Tested
Rohde and Schwarz FSP30 Benchtop RF Spectrum Analyzer 9 KHz to 30 GHz with -155 dBm Noise Level and Pre-Owned Tested
Rohde and Schwarz FSP30 Benchtop RF Spectrum Analyzer 9 KHz to 30 GHz with -155 dBm Noise Level and Pre-Owned Tested
Rohde and Schwarz FSP30 Benchtop RF Spectrum Analyzer 9 KHz to 30 GHz with -155 dBm Noise Level and Pre-Owned Tested
Rohde and Schwarz FSP30 Benchtop RF Spectrum Analyzer 9 KHz to 30 GHz with -155 dBm Noise Level and Pre-Owned Tested
Specifications
Brand Name :
Rohde and Schwarz
Model Number :
FSP30
Certification :
FCC
Place of Origin :
Czech Republic
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
Carton
Product name :
Spectrum Analyzer
Frequency :
9 KHz to 30 GHz
Form Factor :
Benchtop
Average Noise Level :
-155 dBm
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
FCC Benchtop RF Spectrum Analyzer 9KHz-30GHz Rohde And Schwarz FSP30
Rohde and Schwarz FSP30 Spectrum Analyzer 9 KHz to 30 GHz
Product Description

The FSP Spectrum Analyzer is the ideal partner for both development and production, featuring the smallest level measurement uncertainty in its class, as well as excellent RF characteristics. The FSP stands out for its innovative measurement functions and incorporates proven technology with an all-new hardware design to enable revolutionary performance, reliability, and ease of service.

Key Features
  • Frequency range 20Hz to 3GHz, 7 GHz, 13 GHz, 30 GHz and 40 GHz
  • Resolution bandwidth 1 Hz to 10 MHz
  • Displayed average noise level -155 dBm (1 Hz)
  • Phase noise -113 dB (1 Hz) at 10 kHz
  • Additional filters: Channel filters from 100 Hz to 5 MHz and RRC filters; FFT filters from 1Hz to 30 kHz; EMI bandwidths and quasi-peak detector
  • Total measurement uncertainty 0.5 dB
  • Measurement routines for TOI, ACP(R), OBW, CCDF, APD, etc. as standard
  • Fast ACP in time domain
  • Up to 80 measurements per second (including trace transfer via GPIB)
  • Electronic attenuator
  • Application firmware available for GSM/EDGE, Bluetooth, WCDMA/HSDPA/TD-SCDMA, CDMA2000/1xEV-DV/1xEV-DO, WLAN, and more
Specifications & Attributes
Form Factor Benchtop
Application Software Bluetooth (/K8), CDMA2000 (/FS-K83), GSM with Edge (/K5), HSDPA (/FS-K74), Noise Figure (/K3), Phase Noise (/K4), TD-SCDMA (/FS-K77)
Average Noise Level -155 dBm
Frequency 20 Hz (/B29), 9 KHz - 3 GHz (/B9), 9 KHz - 30 GHz
Available Options
Option Code Description
B1 Rugged case with variable carrying handle for all FSP models
B10 External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of
B15 Pulse calibrator for FSP excludes option FSP-B3
B16 LAN interface 10/100 base T for FSP 1164.4391.XX and ESPI 1164.6407.XX
B18 Removable hard disk with WinXP (factory installed)
B19 Second hard disk for FSP-B18 incl. analyzer firmware for FSP with WinXP
B1G CPU RAM upgrade to 1GB. To upgrade FSP with CPU board (1091.2895.00) with less than 1GB
B20 Extended environment Spec, Random Vibration 1.9G / 0 - 55°C (not retrofittable)
B28 Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
B29 20 Hz frequency extension to FSP13 and FSP30 not retrofittable
B3 Audio demodulator AM/FM for FSP internal speaker, control and phones connection
B30 DC power supply 12 - 28 V for FSP spectrum analyzer and ESPI test receiver
B31 NiMH battery pack + charger for FSP and ESPI requires FSP-B1 and FSP-B30
B32 Spare battery pack (NiMH) for FSP spectrum analyzer and ESPI test receiver
B33 Disabled USB ports, excludes FS-K9
B4 OCXO 10 MHz for FSP
B6 TV trigger and adjustable RF power trigger (40 dB) for FSP
B70 Demodulator hardware and memory extension for FS-K72/FS-K73 on FSP
B9 Tracking generator for FSP 9 kHz - 3 GHz, I/Q modulator
Frequently Asked Questions
1. Can you ship orders to Canada or Australia?

Yes, we can. We send orders worldwide.

2. What delivery method do you use and what is the delivery time?

We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other questions?

You can contact us online or leave us messages below.
