LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
Specifications
Brand Name :
LeCroy
Model Number :
SDA820Zi-A
Place of Origin :
USA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
Oscilloscope
Frequency :
20 GHz
Channels :
4 Ch
Sample Rate :
80 GS/s
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
LeCroy 20GHz Digital Oscilloscope Practical WaveMaster SDA820Zi-A
Tektronix LeCroy WaveMaster SDA820Zi-A 20 GHz 4 CH

The WaveMaster SDA820Zi-A represents the pinnacle of digital oscilloscope technology, offering exceptional performance for today's most demanding high-speed signal analysis applications.

Key Features
  • Up to 30 GHz bandwidth and 80 GS/s sample rate
  • The most advanced oscilloscope user interface
  • The industry's only true hardware 14.1 Gb/s serial trigger
  • Low Jitter Measurement Floor and exceptional timebase stability
  • Comprehensive set of serial data analysis, debug, validation and compliance tools
  • Integrated 50 Ω and 1 MΩ inputs for true connection and probing flexibility
  • Integrated standard and custom measurements and math functions for unrivaled analysis capability
  • Multi-lane serial data eye, jitter and crosstalk analysis
  • Real-time de-embedding, emulation, and equalization
Exceptional Performance

With up to 30 GHz bandwidth, 80 GS/s sample rate, extremely stable timebase and a 14.1 Gb/s serial trigger, the WaveMaster 8 Zi-B has the hardware performance to capture today's high-speed signals.

Revolutionary Usability

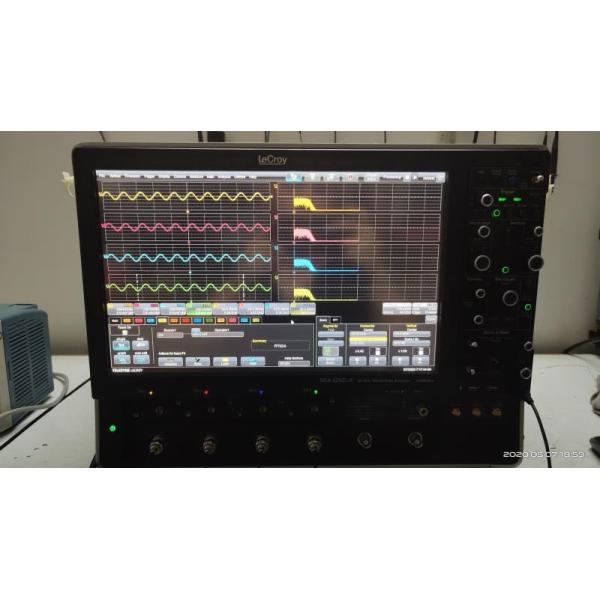

The WaveMaster 8Zi-B is a sophisticated instrument designed for solving complex problems. The MAUI user interface, along with the 15.3" high-resolution touchscreen, makes advanced analysis easy to set up and use. A flat menu structure puts the most common tools in the easiest reach, and sophisticated multi-grid displays are easy to configure.

Technical Specifications
Vertical System
Analog Bandwidth (Max)20 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input)20 GHz (≥10 mV/div)
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input)3.5 GHz (≥10 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)500 MHz (typical, ≥2 mV/div)
Rise Time (10-90%, 50 Ω)22 ps (test limit, flatness mode)
Rise Time (20-80%, 50 Ω)16.5 ps (flatness mode)
Input Channels4 (Any combination of ProLink and ProBus inputs)
Bandwidth Limiters20 MHz, 200 MHz, 1 GHz, 4 GHz, 6 GHz, 8 GHz, 13 GHz, 16 GHz
Input ImpedanceProLink Inputs: 50 Ω+/-2% for ≤100 mV/div, 50 Ω+/-3% for >100 mV/div ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe
Horizontal System
TimebasesInternal timebase common to 4 input channels
Time/Division Range20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≤10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≥100 ms/div and ≤5 MS/s), depending on memory length
Clock Accuracy< 1 ppm + (aging of 0.5ppm/yr from last calibration)
Sample Clock Jitterup to 10µs Acquired Time Range: 100fsrms (Internal Timebase Reference)up to 6.4ms Acquired Time Range: 150fsrms (Internal Timebase Reference)
Acquisition System
Single-Shot Sample Rate/Ch40 GS/s on 4 Ch (80 GS/s on 2 Ch using optional WM8Zi-2X80GS External Interleaving Device)
Random Interleaved Sampling (RIS)200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Standard Memory (4 Ch / 2 Ch / 1Ch)20 M / 20 M / 20M (Memory and Sample Rate can be doubled in 1 or 2 Ch mode with use of WM8Zi-2X80GS External Interleaving Device) (2000)
Physical Dimensions
Dimensions (HWD)14"H x 18.4"W x 16"D (355 x 467 x 406 mm)
Weight51.5 lbs. (23.4 kg)
Shipping Weight70.0 lbs. (31.8 kg)
Frequently Asked Questions
Can you ship order to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other question?
You can contact us online or leave us messages below.
Product Images

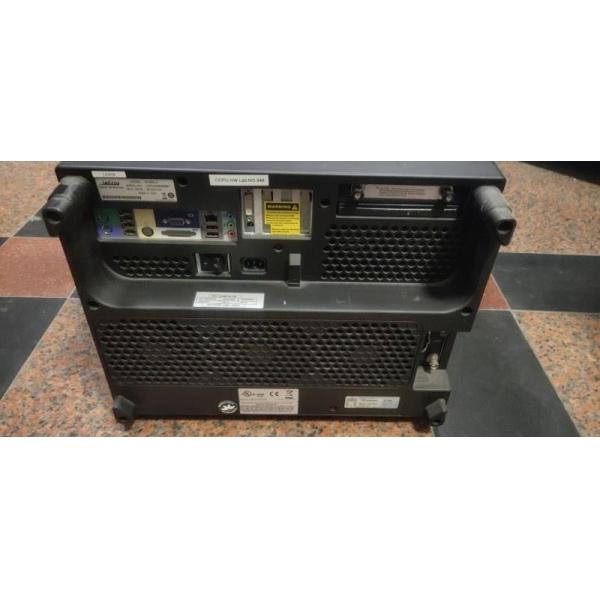

LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
