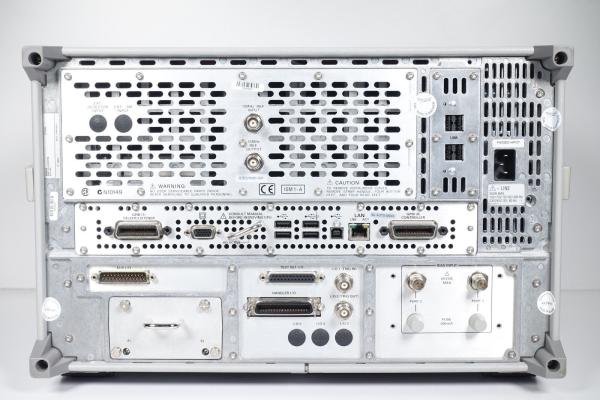

Keysight Agilent E8363C PNA Microwave Network Analyzer with 10 MHz to 40 GHz Frequency Range and 110 dB Dynamic Range
Keysight Agilent E8363C PNA Microwave Network Analyzer with 10 MHz to 40 GHz Frequency Range and 110 dB Dynamic Range
Keysight Agilent E8363C PNA Microwave Network Analyzer with 10 MHz to 40 GHz Frequency Range and 110 dB Dynamic Range
Keysight Agilent E8363C PNA Microwave Network Analyzer with 10 MHz to 40 GHz Frequency Range and 110 dB Dynamic Range
Keysight Agilent E8363C PNA Microwave Network Analyzer with 10 MHz to 40 GHz Frequency Range and 110 dB Dynamic Range
Keysight Agilent E8363C PNA Microwave Network Analyzer with 10 MHz to 40 GHz Frequency Range and 110 dB Dynamic Range
Specifications
Brand Name :
Keysight (Agilent)
Model Number :
E8363C
Certification :
ISO 17025 Calibration Certificate
Place of Origin :
Malaysia
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
in stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Product name :
Vector Network Analyzer
Frequency :
10 MHz to 40 GHz
Form Factor :
Benchtop Rackmount ( /1CP )
Type :
Performance Network Analyzer (PNA)
Condition :
Pre-Owned
Functions :
Tested in Full Working Conditions
Description
Keysight Agilent E8363C PNA Microwave Network Analyzer 10 MHz to 40 GHz
Product Overview

The Keysight Agilent E8363C PNA Microwave Network Analyzer offers general-purpose network analysis with optional software and hardware to customize for your specific applications, including multiport and pulsed-RF configurations.

Key Features
  • Frequency range: 10 MHz to 40 GHz
  • 110 dB dynamic range with <0.006 dB trace noise
  • <26 μsec/point measurement speed, 32 channels, 20,001 points
  • TRL/LRM calibration support for on-wafer, in-fixture, waveguide, and antenna measurements
  • Mixer conversion loss, return loss, isolation, and absolute group delay measurements
  • Amplifier gain compression, harmonic, IMD, and pulsed-RF analysis
Available Options
Option Code Description
010 Add time domain capability
014 Configurable Test Set Deck
016 Add receiver attenuators
080 Frequency offset
081 Reference-receiver switch
082 Scalar calibrated converter measurements
083 Frequency converter measurement application
084 Embedded LO measurements
1A7 ISO 17025 compliant calibration
1CM Rack mount kit for installation without handles
1CP Rack mount kit for installation with handles
301 Application for use with standard CalPods
302 Application for use with temperature-characterized CalPods
550 Add 4-port measurement application
551 Adds N-port calibrated measurements
897 Built-in performance test software for Agilent inclusive calibration, perpetual license
898 Built-in performance test software for standards compliant calibration, perpetual license
A6J ANSI Z540 compliant calibration
H08 Pulsed-RF measurements
H11 IF access (for antenna and pulsed-RF measurements). Requires 014, 080, 081, and UNL
UNL Extended power range with bias tee
UK6 Commercial calibration certificate with test data
Service & Support Options
Option Code Description
PS-S10 Remote scheduled productivity assistance. Select 1 to 999 hours
PS-S20 Startup assistance
PS-S20-01 Recommended Startup assistance
PS-T10-PNA PNA operator training for 8 students at the customer's site, H7215B-203
PS-T12-PNA PNA programming for 8 students at the customer's site, H7215B-204
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-016-3 ISO 17025 Compliant Calibration - 3 years
R-50C-016-5 ISO 17025 Compliant Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-50J-001-3 Onsite System Verification - 3 years
R-50U-001-3 Onsite Agilent Calibration - 3 years
R-50U-002-3 Onsite ANSI Z540-1-1994 Calibration - 3 years
R-51B-001-C Return to Agilent Warranty - 1 year
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51C-001-1CU Onsite Warranty - 1 year
R-51C-001-3CU Onsite Warranty - 3 years
