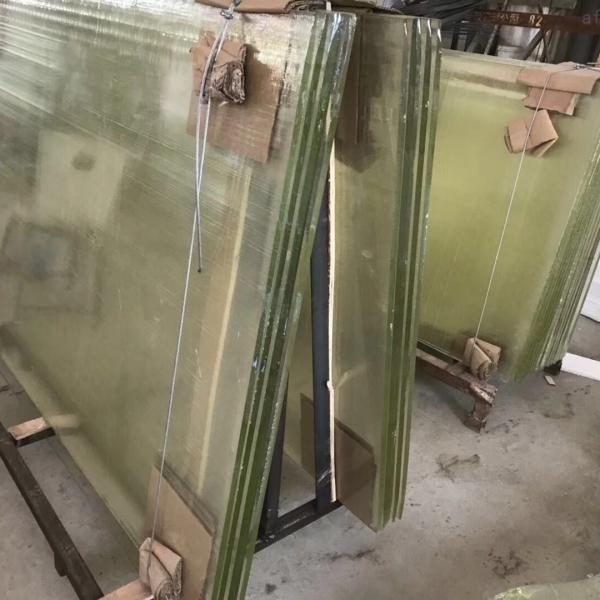

Thick 20mm X Ray Lead Glass 1000 * 800mm Radiation Resistant Protection
Thick 20mm X Ray Lead Glass 1000 * 800mm Radiation Resistant Protection
Specifications
Brand Name :
Jovi
Model Number :
1-CF-15
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD200-2167/PC
Payment Terms :
L/ C, T/ T
Supply Ability :
3000PCS per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden case. Size according to lead glass size, usually 5 pcs per case.
Thickness :
8/ 10/ 12/ 15/ 18/ 20/ 23/ 25mm
Lead Equivalent :
1.7/ 2.1/ 2.6/ 3.3/ 3.96/ 4.4/ 6.71mmpb
Name :
20mm 1000 * 800mm Radiation Resistant Protection Lead Glass
Shape :
circle, square and customized
Description

20mm 1000 * 800mm Radiation Resistant Protection Lead Glass

Quick Detail:

1) Size from 200 * 300mm to 1200 * 2400mm while customized Size accepted

2) Thickness 8/ 10/ 12/ 15/ 18/ 20/ 23/ 25mm

3) Lead equivalent 1.7/ 2.1/ 2.6/ 3.3/ 3.96/ 4.4/ 5.8/ 6.71mmpb

4) Stainless Steel and frame available

5) Packing in wooden case

6) CE Certificate

Specification:

　 8mm 10mm 12mm 15mm 18mm 20mm 25mm
( 1.7mmpb) ( 2.1mmpb) ( 2.6mmpb) ( 3.3 mmpb) ( 3.96 mmpb) ( 4.4 mmpb) ( 6.71 mmpb)
200* 300 200* 300* 8 200* 300* 10 200* 300* 12 200* 300* 15 200* 300* 18 200* 300* 20 -
300* 400 300* 400* 8 300* 400* 10 300* 400* 12 300* 400* 15 300* 400* 18 300* 400* 20 -
400* 600 400* 600* 8 400* 600* 10 400* 600* 12 400* 600* 15 400* 600* 18 400* 600* 20 -
600* 800 600* 800* 8 600* 800* 10 600* 800* 12 600* 800* 15 600* 800* 18 600* 800* 20 -
600* 900 600* 900* 8 600* 900* 10 600* 900* 12 600* 900* 15 600* 900* 18 600* 900* 20 -
1000* 800 1000* 800* 8 1000* 800* 10 1000* 800* 12 1000* 800* 15 1000* 800* 18 1000* 800* 20 1000* 800* 25
1200* 800 1200* 800* 8 1200* 800* 10 1200* 800* 12 1200* 800* 15 1200* 800* 18 1200* 800* 20 1200* 800* 25
1200* 900 1200* 900* 8 1200* 900* 10 1200* 900* 12 1200* 900* 15 1200* 900* 18 1200* 900* 20 1200* 900* 25
1200* 1000 1200* 1000* 8 1200* 1000* 10 1200* 1000* 12 1200* 1000* 15 1200* 1000* 18 1200* 1000* 20 1200* 1000* 25
1200* 1200 - 1200* 1200* 10 1200* 1200* 12 1200* 1200* 15 1200* 1200* 18 1200* 1200* 20 1200* 1200* 25
1500* 900 - 1500* 900* 10 1500* 900* 12 1500* 900* 15 1500* 900* 18 1500* 900* 20 1500* 900* 25
1500* 1000 - 1500* 1000* 10 1500* 1000* 12 1500* 1000* 15 1500* 1000* 18 1500* 1000* 20 1500* 1000* 25
1500* 1200 - 1500* 1200* 10 1500* 1200* 12 1500* 1200* 15 1500* 1200* 18 1500* 1200* 20 1500* 1200* 25
1600* 1000 - 1600* 1000* 10 1600* 1000* 12 1600* 1000* 15 1600* 1000* 18 1600* 1000* 20 1600* 1000* 25
1600* 1200 - 1600* 1200* 10 1600* 1200* 12 1600* 1200* 15 1600* 1200* 18 1600* 1200* 20 1600* 1200* 25
1800* 1000 - 1800* 1000* 10 1800* 1000* 12 1800* 1000* 15 1800* 1000* 18 1800* 1000* 20 1800* 1000* 25
1800* 1200 - 1800* 1200* 10 1800* 1200* 12 1800* 1200* 15 1800* 1200* 18 1800* 1200* 20 1800* 1200* 25
2000* 1000 - 2000* 1000* 10 2000* 1000* 12 2000* 1000* 15 2000* 1000* 18 2000* 1000* 20 2000* 1000* 25
2000* 1200 - 2000* 1200* 10 2000* 1200* 12 2000* 1200* 15 2000* 1200* 18 2000* 1200* 20 2000* 1200* 25
2400* 1200 - 2400* 1200* 10 2400* 1200* 12 2400* 1200* 15 2400* 1200* 18 2400* 1200* 20 2400* 1200* 25


Thick 20mm X Ray Lead Glass 1000 * 800mm Radiation Resistant Protection

Application:

Lead glass is mainly used in the manufacturing of optical instruments, art vessels, etc. Also known as

medical X-ray radiation-proof lead glass plate in the medical field; diagnostic X-ray machine rooms, CT,

ECT, PET, ct-pet and other machine rooms, as well as observation Windows on the protective screen of

protective doors.

FAQ:

20mm 1000 * 800mm Radiation Resistant Protection Lead Glass

Q. Can I have a sample order for lead glass?

A: Of course, sample orders can be easier to test and check quality. Mixed samples are acceptable.

Q. What about the lead time?

A: Usually 5-7 working days.

Q3. How to proceed an order for lead glass?

A: Firstly let us know your requirements or size, thickness and also quantity.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms.

Fourthly We arrange the production.
