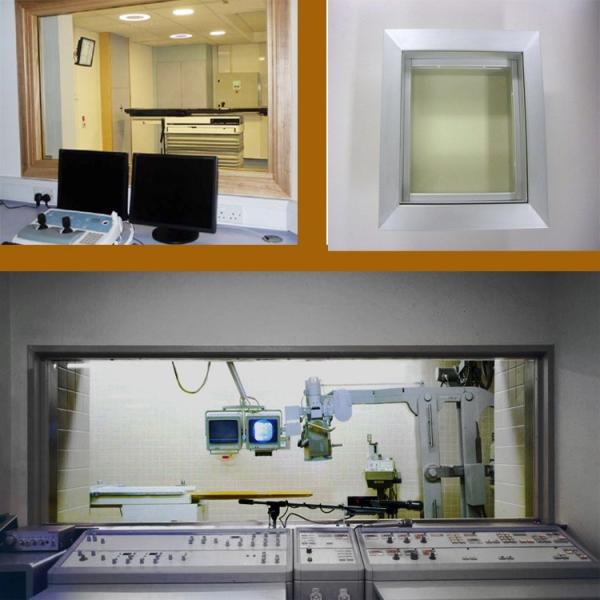

Ct Room 10mm Radiation Protection Glass For Doctor Observation
Ct Room 10mm Radiation Protection Glass For Doctor Observation
Specifications
Brand Name :
Jovi
Model Number :
1-CF-15
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD800-1500/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000PCS per month
Delivery Time :
5-8 work days
Packaging Details :
Wrapped in kraft paper, then packed in wooden case. Size according to lead glass size, usually 5 pcs per case.
Product Name :
hospital CT MRI transparent medical x-ray lead glass for CT room for doctor observation
Function :
CT Scan Xray Protection
Destiny :
4.1g/cm³,4.3g/cm³,4.7g/cm³
Frame :
with Frame or without frame
Lead equivalent :
1mmPb-5mmPb
Size :
1000mm*800mm*10mm 12mm 15mm
Description

hospital CT MRI transparent medical x-ray lead glass for CT room for doctor observation

Description:

size: Normal size
also can customize the size for you.
Lead equivalent: 0.5mmpb,1mmpb/1.5mmpb/2mmpb/3mmpb etc.
shielding function: 99% shielding .
color: transparent.
lead material choice: normal lead, soft lead, domestic non lead and imported non lead material all available.
normal size below.

X-RAY GLASS IS:

  • Available in 1.6mm, 2.0mm, 2.4mm, 3.2mm and 3.7mm lead shielding equivalences and higher ratings are available upon request.
  • The highest density x-ray lead glass available for the most efficient medical radiation shielding quality, and yet also allowing approx. 88% spectral light transmission.

　 8mm 10mm 12mm 15mm 18mm 20mm 25mm
( 1.7mmpb) ( 2.1mmpb) ( 2.6mmpb) ( 3.3 mmpb) ( 3.96 mmpb) ( 4.4 mmpb) ( 6.71 mmpb)
200* 300 200* 300* 8 200* 300* 10 200* 300* 12 200* 300* 15 200* 300* 18 200* 300* 20 -
300* 400 300* 400* 8 300* 400* 10 300* 400* 12 300* 400* 15 300* 400* 18 300* 400* 20 -
400* 600 400* 600* 8 400* 600* 10 400* 600* 12 400* 600* 15 400* 600* 18 400* 600* 20 -
600* 800 600* 800* 8 600* 800* 10 600* 800* 12 600* 800* 15 600* 800* 18 600* 800* 20 -
600* 900 600* 900* 8 600* 900* 10 600* 900* 12 600* 900* 15 600* 900* 18 600* 900* 20 -
1000* 800 1000* 800* 8 1000* 800* 10 1000* 800* 12 1000* 800* 15 1000* 800* 18 1000* 800* 20 1000* 800* 25
1200* 800 1200* 800* 8 1200* 800* 10 1200* 800* 12 1200* 800* 15 1200* 800* 18 1200* 800* 20 1200* 800* 25
1200* 900 1200* 900* 8 1200* 900* 10 1200* 900* 12 1200* 900* 15 1200* 900* 18 1200* 900* 20 1200* 900* 25
1200* 1000 1200* 1000* 8 1200* 1000* 10 1200* 1000* 12 1200* 1000* 15 1200* 1000* 18 1200* 1000* 20 1200* 1000* 25
1200* 1200 - 1200* 1200* 10 1200* 1200* 12 1200* 1200* 15 1200* 1200* 18 1200* 1200* 20 1200* 1200* 25
1500* 900 - 1500* 900* 10 1500* 900* 12 1500* 900* 15 1500* 900* 18 1500* 900* 20 1500* 900* 25
1500* 1000 - 1500* 1000* 10 1500* 1000* 12 1500* 1000* 15 1500* 1000* 18 1500* 1000* 20 1500* 1000* 25
1500* 1200 - 1500* 1200* 10 1500* 1200* 12 1500* 1200* 15 1500* 1200* 18 1500* 1200* 20 1500* 1200* 25
1600* 1000 - 1600* 1000* 10 1600* 1000* 12 1600* 1000* 15 1600* 1000* 18 1600* 1000* 20 1600* 1000* 25
1600* 1200 - 1600* 1200* 10 1600* 1200* 12 1600* 1200* 15 1600* 1200* 18 1600* 1200* 20 1600* 1200* 25
1800* 1000 - 1800* 1000* 10 1800* 1000* 12 1800* 1000* 15 1800* 1000* 18 1800* 1000* 20 1800* 1000* 25
1800* 1200 - 1800* 1200* 10 1800* 1200* 12 1800* 1200* 15 1800* 1200* 18 1800* 1200* 20 1800* 1200* 25
2000* 1000 - 2000* 1000* 10 2000* 1000* 12 2000* 1000* 15 2000* 1000* 18 2000* 1000* 20 2000* 1000* 25
2000* 1200 - 2000* 1200* 10 2000* 1200* 12 2000* 1200* 15 2000* 1200* 18 2000* 1200* 20 2000* 1200* 25
2400* 1200 - 2400* 1200* 10 2400* 1200* 12 2400* 1200* 15 2400* 1200* 18 2400* 1200* 20 2400* 1200* 25

lead clothes shiedling data:

lead equivalent

0.175mmpb

0.25mmpb

0.35mmpb

0.5mmpb

shielding data

93%

96.5%

98%

98.5%


Ct Room 10mm Radiation Protection Glass For Doctor Observation

the whole product is produced in our factory, self-control and test before delivery.

lead rubber sheet material are optional, normal and soft and non lead materials are all available.
we accept OEM and new design for you.

FAQ:

WHY PROTECTION FROM RADIATION IS IMPORTANT?


Of course, we all know that too much exposure to radiation can be dangerous. But what many people don’t realize is that even small amounts of radiation exposure can add up over time and lead to health problems. That’s why it’s so important to make sure that you are protected from radiation with lead glass and lead lined frames whenever you are in a situation where there is a potential for exposure. X-rays produce ionizing radiation, which can damage cells in your body and lead to a wide range of serious health problems.
