2.4mm Male Stainless Steel RF Coaxial Connector with SF102E/SF102 Cable
2.4mm Male Stainless Steel RF Coaxial Connector with SF102E/SF102 Cable
2.4mm Male Stainless Steel RF Coaxial Connector with SF102E/SF102 Cable
2.4mm Male Stainless Steel RF Coaxial Connector with SF102E/SF102 Cable
Specifications
Brand Name :
ELT (Elite)
Model Number :
2.4-J102BG
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product name :
2.4mm RF Coaxial Conector
Impedance :
50Ω
Lifetime :
500Cycles
Application :
Computer/LANs
Material :
Stainless steel
Plating :
Passivated
Gender :
Male
Certificate :
ISO-9001-2015
Description

2.4mm Male Stainless Steel RF Coaxial Connector with SF102E/SF102 Cable


The 2.4mm series connector is a high-performance millimeter wave connector designed for frequencies up to 50GHz, utilizing an air interface with a threaded connection. It is characterized by its small size, lightweight, high-frequency capabilities, and reliable connections. These connectors are frequently used in high-frequency microwave measurements and millimeter wave equipment.

Specification

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC～50GHz
Rated Voltage
170VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
500VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ

Contact Resistance
Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.05+0.005f

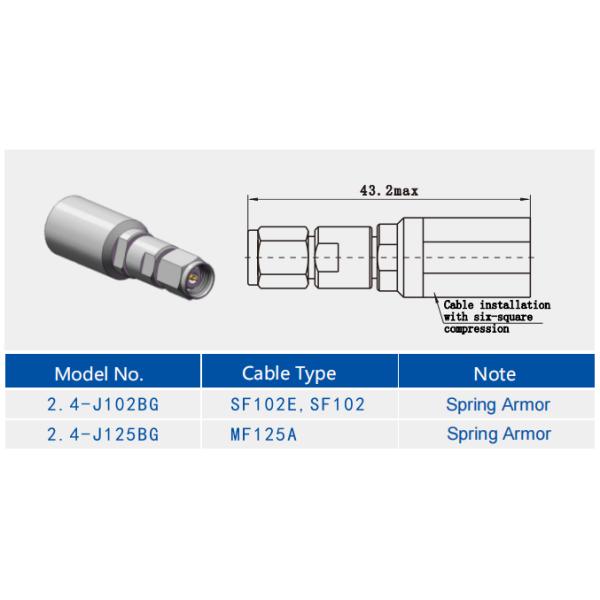

Detailed Drawing:
2.4mm Male Stainless Steel RF Coaxial Connector with SF102E/SF102 Cable
Features:
In terms of basic performance, the outer conductor diameter of the 2.4mm connector is 2.4mm, with a characteristic impedance of 50Ω, utilizing an air dielectric . This allows it to operate up to frequencies of 50GHz, making it suitable for extreme environments for precision measurement and high-speed data transmission. Thanks to its excellent electrical performance and miniaturized design, it is widely used in radar engineering, electronic countermeasures, satellite communications, and other fields .

Advantages:

Normal products Elite products
Frequency Range DC~40GHz DC~65GHz
VSWR ≤1.35 ≤1.3
Durability 300 Cycles >500 Cycles


Application:

Firstly, the 2.4mm connector is designed for extremely high operating frequencies, up to DC-50GHz . This high-frequency range makes it an ideal choice for millimeter-wave communication systems. Within this frequency range, other types of connectors often cannot provide such excellent performance, making the 2.4mm connector particularly important in ultra-high frequency applications.

Secondly, its miniaturized size is also a significant advantage. In the design of modern communication equipment and precision instruments, space utilization is an important consideration. The outer conductor diameter of the 2.4mm connector is only 2.4mm, making it suitable for space-constrained applications . For example, in satellite communications and radar systems, where the size and weight of equipment are strictly limited, the miniaturized 2.4mm connector proves very appropriate.


Our Main Products

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints


NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
