50Ω 18GHz Male 2 Hole Flange Mount SMA RF Connector for RF Test Fixture or Chassis
50Ω 18GHz Male 2 Hole Flange Mount SMA RF Connector for RF Test Fixture or Chassis
Specifications
Brand Name :
ELT
Model Number :
SMA-KFD376
Certification :
RoHS
Place of Origin :
Xi'an, China
MOQ :
MOQ 50 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-10 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
SMA RF Connector
Model :
SMA-KFD376
Frequency Range :
0.3MHz-18GHz
Impedance :
50Ω
DWV :
750V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Mount Method :
2 Hole Flange mount
Gender :
Male
Insulators :
PTFE
Application :
RF Test Fixture，Chassis，Telecommunication
Description
Copper Alloy Female/Jack 2 Hole Flange Mount SMA RF Connector Up To 18GHz
Product Description
The SMA RF connector is an extremely widely used small threaded RF coaxial connector. It can be found in a variety of communication equipment and test instruments.

Core Features:

1) Compact Size, Space-Saving

As an ultra-miniature connector, the SMA RF connector is approximately half the size of a traditional N-type connector (about 1/5 of its volume) and extremely light in weight. This makes it ideal for use in electronic devices with compact spaces and high-density wiring requirements, such as PCBs, micro-modules, and portable instruments.

2) Wide Frequency Range, Excellent Performance

This is one of the biggest advantages of the SMA RF connector. It features an extremely wide operating frequency range, usually up to 0 - 18 GHz, and some high-quality or specially designed models can even extend to 26.5 GHz. It can effectively reduce reflection and loss during high-frequency signal transmission, ensuring signal integrity.

3) High Reliability for the Connection

Different from the bayonet connection of BNC connectors, the SMA RF connector adopts a threaded locking mechanism. This design ensures a very firm connection, with excellent vibration and impact resistance, which can effectively prevent accidental loosening in harsh environments and guarantee long-term connection stability.
Technical Data

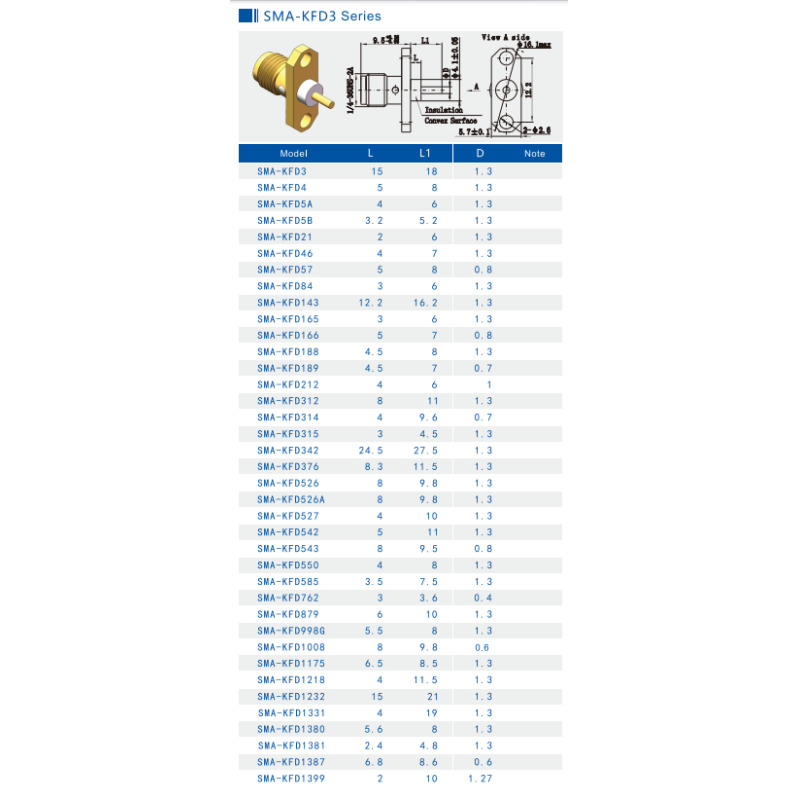

Outline Dimension: Copper Alloy Gold Plating Female 2 Hole Flange Mount SMA RF Connector up to 18GHz
50Ω 18GHz Male 2 Hole Flange Mount SMA RF Connector for RF Test Fixture or Chassis
Applications

Xi'an Elite Electronics is a leading manufacturer of Systematic Interconnection Solutions, serving industries including:

  • Aerospace
  • Aviation
  • Navigation
  • Radar systems
  • Communications
  • Measurement equipment
  • Electronics

Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.

50Ω 18GHz Male 2 Hole Flange Mount SMA RF Connector for RF Test Fixture or Chassis
Packing & Shipping

Packaging: Each Copper Alloy SMA RF Connector is securely packaged in a sturdy cardboard box with foam padding to prevent transit damage.

50Ω 18GHz Male 2 Hole Flange Mount SMA RF Connector for RF Test Fixture or Chassis

Shipping: We use reliable courier services for safe and prompt delivery. All shipments include tracking numbers and are packed securely to prevent mishandling during transportation.
