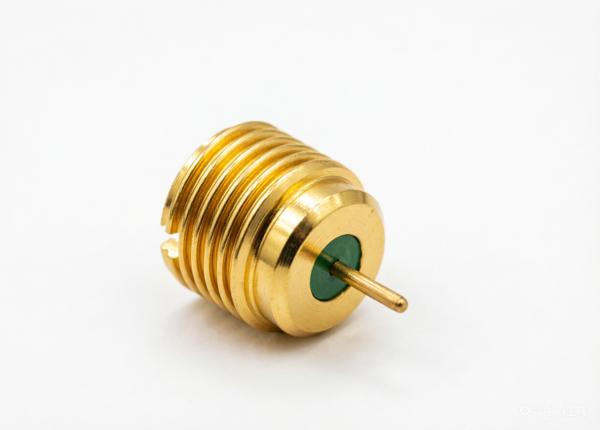

Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm
Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm
Specifications
Brand Name :
ELT
Model Number :
SMP(M)-JYD43
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
6-8weeks for new production
Packaging Details :
1pcs/plastic bag;10bags/carton
Product Name :
SMP RF Connector
Frequency :
DC~18GHz
Center Contact :
Copper Alloy， Gold Plated
Shell :
Copper Alloy， Gold Plated
Insulation Resistance :
5000 Ohm
DWV :
500V
Rated Voltage :
170V
Imdepence :
50Ω
Temperature Range :
-55℃~+125℃
Gender :
Male Plug
Dielectric :
PTFE
Mounting :
Bulkhead Mount
Samples :
Available，In Stock
Interface :
Full Detent Limited Detent Smooth Bore
Pin OD :
0.3mm, 0.45mm, 0.5mm, 0.7mm, 0.9mm, 1.3mm available
Description

Product Description:

Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm

Elite Electronics' SMP RF connectors ensure superior signal integrity up to 40 GHz. Their innovative, tool-free push-on interface accelerates production by eliminating bulky wrenches.
Choose from straight, right-angle, or flange-mount options with three male plug configurations—Full Detent, Limited Detent, and Smooth Bore—to optimize retention force and density
for your specific application.


Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.

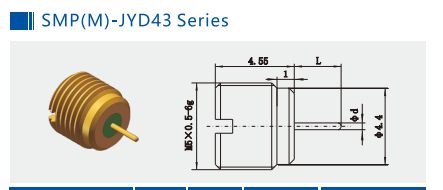

Outline Dimension of Stainless Steel SMP RF Connector male bulkhead connector Model : SMP(M)-JYD43

Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm

Model No. L d Interface Note
SMP(M)-JYD43 2.7mm 0.39 Limited Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD43-S 2.7mm 0.39 Smooth Bore Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD65 1.5mm 0.3 Limited Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD82 2.1mm 0.39 Limited Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD82-S 2.1mm 0.39 Smooth Bore Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD92-F 2.9mm 0.6 Full Detent Hermetic,Engagement Depth: 2.79mm


Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm

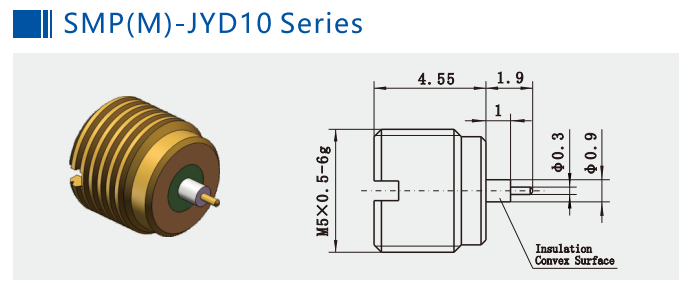

Model No Interface Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD10 Limited Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD10-S Smoth Bore Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD10-F Full Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD10G Limited Detent Hermetic,Engagement Depth: 2.79mm

Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.

Packing & Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm


Shipping:

Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.

Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm
