Stainless Steel SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm
Stainless Steel SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm
Specifications
Brand Name :
ELT
Model Number :
SMP-JFD108G
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
6-8weeks for new production
Packaging Details :
1pcs/plastic bag;10bags/carton
Product Name :
SMP RF Connector
Frequency :
DC~18GHz
Center Contact :
Copper Alloy， Gold Plated
Shell :
Stainless Steel， Passivation
Insulation Resistance :
5000 Ohm
DWV :
500V
Imdepence :
50Ω
Rated Voltage :
170V
Temperature Range :
-55℃~+125℃
Gender :
male plug
Dielectric :
PTFE
Mounting :
2-hole flange mount
Samples :
Available，2 pcs In Stock
Interface :
Limited Detent
Pin OD :
0.3mm, 0.45mm, 0.5mm, 0.7mm, 0.9mm, 1.3mm available
Description

Product Description:

Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm

Elite Electronics' SMP RF coaxial adapters empower you to build perfectly customized high-frequency systems. Choose from a comprehensive range of configurations including straight and right-angle designs, compatible with cable assemblies, PCB and flange mounting, and available with environmental sealing for waterproof operations.

Fine-tune your mechanical interface with our tiered inner conductor lineup. Select Full Detent for maximum connection stability, Limited Detent for a balance of retention and ease of use, or Smooth Bore for ultra-fast, low-force mating, perfectly aligning with your lifecycle and density requirements.

Full Detent: Provides maximum retention force, ideal for critical, high-vibration environments.

Limited Detent: Balances security with ease of maintenance, perfect for routine serviceability.

Smooth Bore: Optimized for high-density arrays where space is at a premium.

Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.

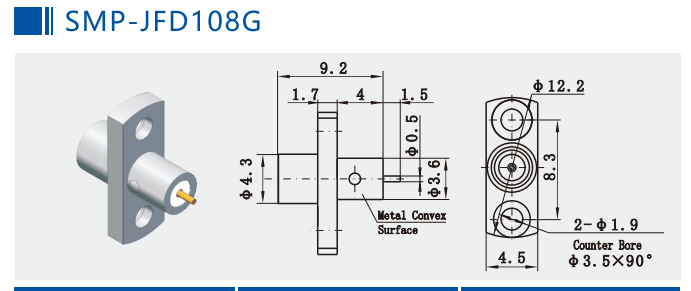

Outline Dimension of Stainless Steel SMP RF Connector male flange mount connector Model : SMP-JFD108G

Stainless Steel SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm

Model No. Interface Form Note
SMP-JFD108G Limited Detent Engagement Depth: 2.79mm

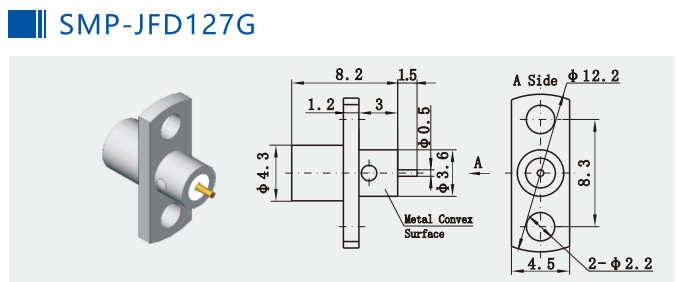

Outline Dimension of Stainless Steel SMP RF Connector Plug 2 Hole Flange Mount Connector Model : SMP-JFD127G

Stainless Steel SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm

Model No. Interface Form Note
SMP-JFD127G Limited Detent Engagement Depth: 2.79mm

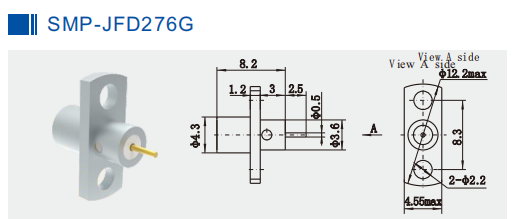

Outline Dimension of Stainless Steel SMP RF Connector Plug 2 Hole Flange Mount Connector Model : SMP-JFD276G

Stainless Steel SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm

Model No. Interface Form Note
SMP-JFD276G Limited Detent Engagement Depth: 2.79mm

Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF Connectors, Adapters, Cable Assemblies, Microwave Components supply solution to the fields of commercial aerospace, aviation, navigation, radar, satcom, telecom, telemetry system, high-end electronics industry over 23 years. Elite Electronics has 210 engineers, 4 test laboratories, more than 800 sets of high-precision CNC machining equipment, inspection and testing equipment, 16 assembly production lines, over 800 staff.

Packing & Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm


Shipping:

Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.
