Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm
Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm
Specifications
Brand Name :
ELT
Model Number :
SMP-JYD2G
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
6-8weeks for new production
Packaging Details :
1pcs/plastic bag;10bags/carton
Product Name :
SMP RF Connector
Frequency :
DC~18GHz
Center Contact :
Copper Alloy， Gold Plated
Shell :
Stainless Steel， Passivation
Insulation Resistance :
5000 Ohm
DWV :
500V
Rated Voltage :
170V
Imdepence :
50Ω
Temperature Range :
-55℃~+125℃
Gender :
Female / Jack
Dielectric :
PTFE
Mounting :
Bulkhead Mount
Samples :
Available，In Stock
Interface :
Full Detent Limited Detent Smooth Bore
Pin OD :
0.3mm, 0.45mm, 0.5mm, 0.7mm, 0.9mm, 1.3mm available
Description

Product Description:

Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm

Engineered to thrive in the most demanding high-frequency environments, Elite Electronics' SMP RF connectors deliver exceptional signal integrity and superior low Voltage Standing Wave Ratio (VSWR) performance up to 40 GHz. Designed to accelerate your production timelines, our innovative tool-free push-on interface eliminates the need for bulky wrenches, significantly speeding up mating and demating cycles while maintaining a secure, reliable connection.

We offer maximum design flexibility with a comprehensive portfolio including straight, right-angle, and flange-mount options, suitable for both PCB and cable assemblies. Understanding that every application has unique requirements, we provide three distinct male plug configurations to optimize performance:

Full Detent: Provides maximum retention force, ideal for critical, high-vibration environments.

Limited Detent: Balances security with ease of maintenance, perfect for routine serviceability.

Smooth Bore: Optimized for high-density arrays where space is at a premium.


Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.

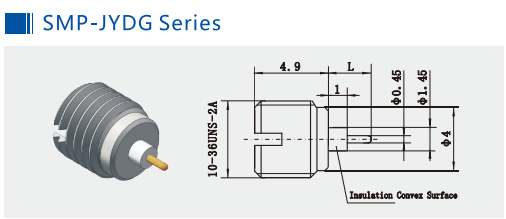

Outline Dimension of Stainless Steel SMP RF Connector male bulkhead connector Model : SMP-JYD2G

Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm

Model No. L Interface Note
SMP-JYDG 2.5mm Limited Detent Engagement Depth: 2.79mm
SMP-JYDG-S 2.5mm Smooth Bore Engagement Depth: 2.79mm
SMP-JYDG-F 2.5mm Full Detent Engagement Depth: 2.79mm
SMP-JYD2G 4.1mm Limited Detent Engagement Depth: 2.79mm
SMP-JYD2G-F 4.1mm Full Detent Engagement Depth: 2.79mm

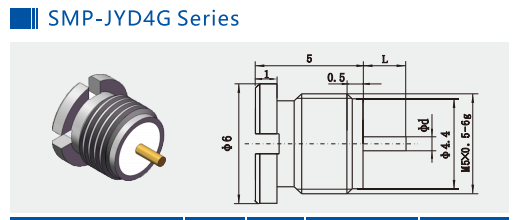

Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm

Model No L d Interface Engagement Depth: 2.79mm
SMP-JYD4G 2mm 0.7mm Limited Detent Engagement Depth: 2.79mm
SMP-JYD4G-S 2mm 0.7mm Smoth Bore Engagement Depth: 2.79mm
SMP-JYD4G-F 2mm 0.7mm Full Detent Engagement Depth: 2.79mm
SMP-JYD89G-F 3mm 0.7mm Full Detent Engagement Depth: 2.79mm

Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.

Packing & Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm


Shipping:

Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.
