SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm
SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm
Specifications
Brand Name :
ELT
Model Number :
SMP-JHD72
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
6-8weeks for new production
Packaging Details :
1pcs/plastic bag;10bags/carton
Product Name :
SMP RF Connector
Center Contact :
Copper Alloy， Gold Plated
Shell :
Copper Alloy， Gold Plated
Frequency :
DC~18GHz
DWV :
500V
Rated Voltage :
170V
Imdepence :
50Ω
Insulation Resistance :
5000 Ohm
Temperature Range :
-55℃~+125℃
Gender :
Female / Jack
Mounting :
PCB Surface mount
Dielectric :
PTFE, Glass
Samples :
Available，In Stock
Description

Product Description:

SMP Straight PCB Limited Detent /Smooth Bore Jack Female Surface Mount 50 Ohm

Engineered for demanding high-frequency environments, Elite Electronics' SMP RF connectors deliver superior signal integrity and low VSWR performance up to 40 GHz. Designed to accelerate your production timelines, our innovative tool-free push-on interface eliminates the need for wrenches, significantly speeding up mating and demating cycles while ensuring a secure connection.Offering maximum design flexibility, our portfolio includes straight, right-angle, and flange-mount options, suitable for both PCB and cable assemblies. We understand that every application has unique requirements, which is why we provide three distinct male plug configurations:


Full Detent: Provides maximum retention force for the most critical, vibration-prone environments

Limited Detent: Balances security with ease of maintenance for routine serviceability

Smooth Bore: Optimized for high-density arrays where space is at a premium


SMP Insertion and extraction force: Full Detent > Limited Detent > Smooth Bore

Outline Dimension of Straight SMP RF Connector Female PCB Surface Mount Connector SMP-JHD72 :

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm

Note1: Engagement Depth 2.79mm

Other surface mount SMP Connectors as following:

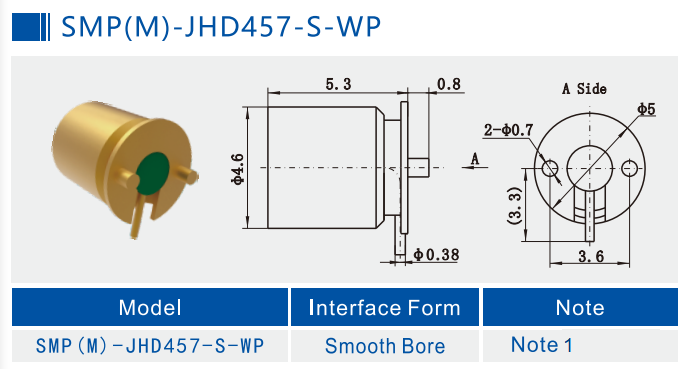

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm

Note1: Engagement Depth 2.79mm, Hermeticlly sealed with glass

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
