Brass Gold Plating SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm
Brass Gold Plating SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm
Specifications
Brand Name :
ELT
Model Number :
SMP-JFD153
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
6-8weeks for new production
Packaging Details :
1pcs/plastic bag;10bags/carton
Product Name :
SMP RF Connector
Frequency :
DC~18GHz
Center Contact :
Brass， Gold Plated
Shell :
Brass， Gold Plated
Insulation Resistance :
5000 Ohm
DWV :
500V
Imdepence :
50Ω
Rated Voltage :
170V
Temperature Range :
-55℃~+125℃
Gender :
male plug
Dielectric :
PTFE
Mounting :
2-hole flange mount
Samples :
Available，2 pcs In Stock
Interface :
Limited Detent
Pin OD :
0.3mm, 0.45mm, 0.5mm, 0.7mm, 0.9mm, 1.3mm available
Description

Product Description:

Copper Alloy Gold Plating SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm

The SMP RF flange connector is a type of high-frequency PCB mount connector. It is commonly used in RF systems to provide a separable electrical connection between equipment, cables, or circuit boards. This connector features a characteristic impedance of 50Ω and an operating frequency range of up to 0~18GHz, making it suitable for high-frequency applications such as radar, communication base stations, satellite communication, and test and measurement.
This connector features a compact structure and excellent mechanical durability. Its electrical specifications include a Voltage Standing Wave Ratio (VSWR) of ≤1.3, insulation resistance of ≥1000MΩ, and dielectric strength of 500V, making it ideal for systems with high signal integrity requirements. The housing is typically made of gold-plated brass or stainless steel to ensure corrosion resistance and shielding effectiveness in complex environments.

Full Detent: Provides maximum retention force, ideal for critical, high-vibration environments.

Limited Detent: Balances security with ease of maintenance, perfect for routine serviceability.

Smooth Bore: Optimized for high-density arrays where space is at a premium.

Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.

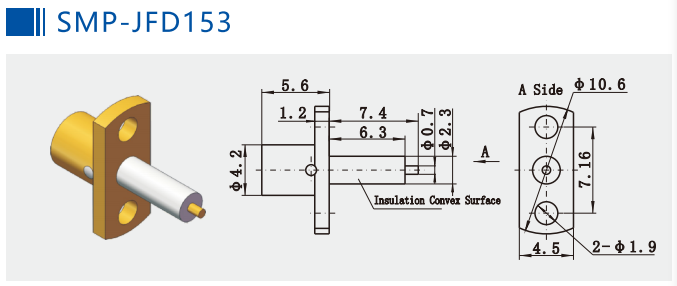

Outline Dimension of Copper Alloy Gold Plating SMP RF Connector male flange mount connector Model : SMP-JFD153

Brass Gold Plating SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm


Model No. Interface Form Note
SMP-JFD153 Limited Detent Engagement Depth: 2.79mm

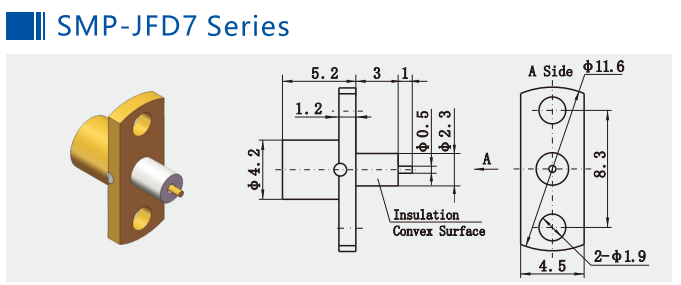

Outline Dimension of Copper Alloy Gold Plating SMP RF Connector Plug 2 Hole Flange Mount Connector Model : SMP-JFD7

Brass Gold Plating SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm

Model No. Interface Form Note
SMP-JFD7 Limited Detent Engagement Depth: 2.79mm

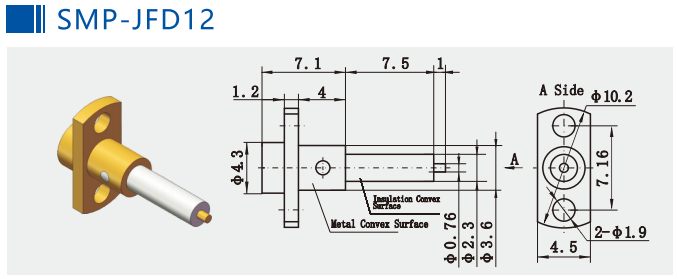

Outline Dimension of Copper Alloy Gold Plating SMP RF Connector Plug 2 Hole Flange Mount Connector Model : SMP-JFD12

Brass Gold Plating SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm

Model No. Interface Form Note
SMP-JFD12 Limited Detent Engagement Depth: 2.79mm

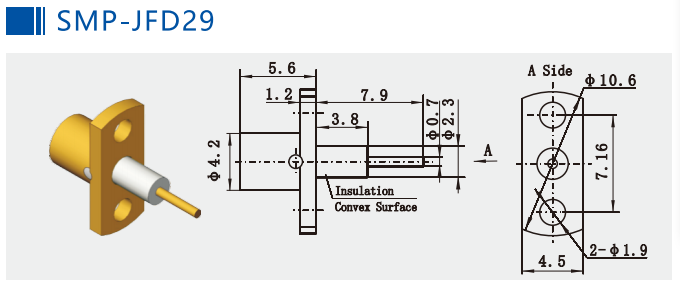

Outline Dimension of Copper Alloy Gold Plating SMP RF Connector Plug 2 Hole Flange Mount Connector Model : SMP-JFD29

Brass Gold Plating SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm

Model No. Interface Form Note
SMP-JFD29 Limited Detent Engagement Depth: 2.79mm

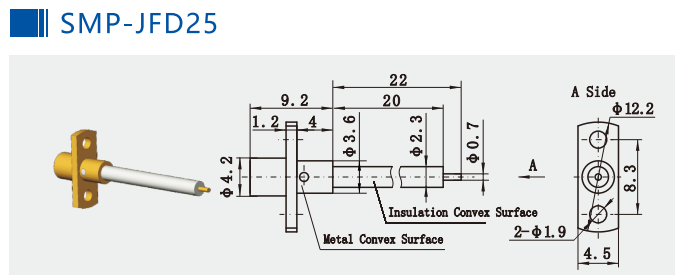

Outline Dimension of Copper Alloy Gold Plated SMP RF Connector Plug 2-Hole Flange Mount Connector Model : SMP-JFD25

Brass Gold Plating SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm

Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF Connectors, Adapters, Cable Assemblies, Microwave Components supply solution to the fields of commercial aerospace, aviation, navigation, radar, satcom, telecom, telemetry system, high-end electronics industry over 23 years. Elite Electronics has 210 engineers, 4 test laboratories, more than 800 sets of high-precision CNC machining equipment, inspection and testing equipment, 16 assembly production lines, over 800 staff.

Packing & Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm


Shipping:

Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.
