Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector
Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector
Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector
Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector
Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector
Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector
Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector
Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector
Specifications
Brand Name :
ELT(elite)
Model Number :
SMP(M)-JYD43
Certification :
ROHS, ISO-9001-2015
Place of Origin :
China
MOQ :
50
Price :
8-18 USD Per Pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
As requirements
Delivery Time :
55 work days
Packaging Details :
21.5*15.5*12cm
Description

Hermetically Sealed SMP Male Limited Detent Bulkhead RF Connector

Product Description

SMP(M) is a hermetically sealed miniature push-on RF coaxial connector, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc.
Operating frequency up to 18GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form with full detent, limited detent and smooth bore(including with braking).
Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connectors. Apply for the install situation with the requirement of high reliability modular intensive.

Electrical Characteristics
Impedance
50Ω
Frequency Range
0.04GHz~40GHz
170VRMS
Dielectrics Voltage-resistance
500VRMS
Insulation Resistance
≥5000MΩ
Contact Resistance
Outer conductor
hermetic≤4mΩ
Center conductor
hermetic≤26mΩ

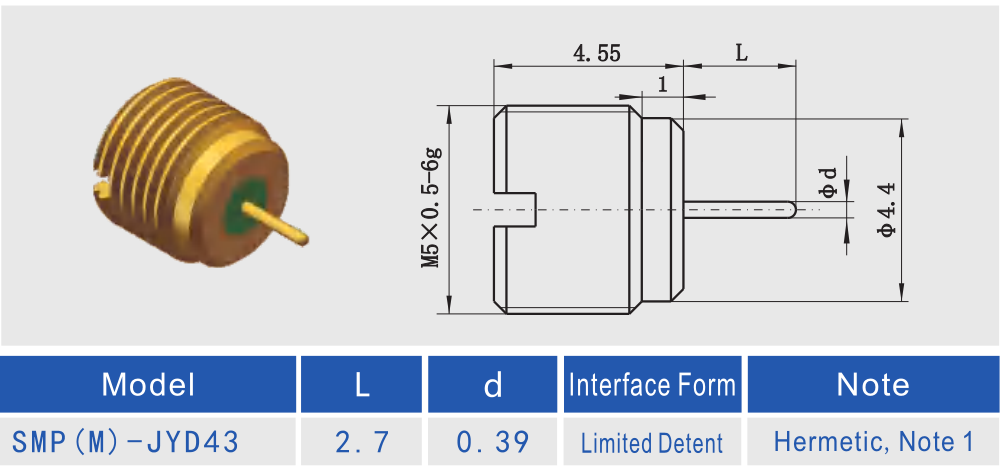

Outline Drawing of Hermetically Sealed SMP Male Thread to Straight Bulkhead RF Coaxial Connector(mm):

Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector

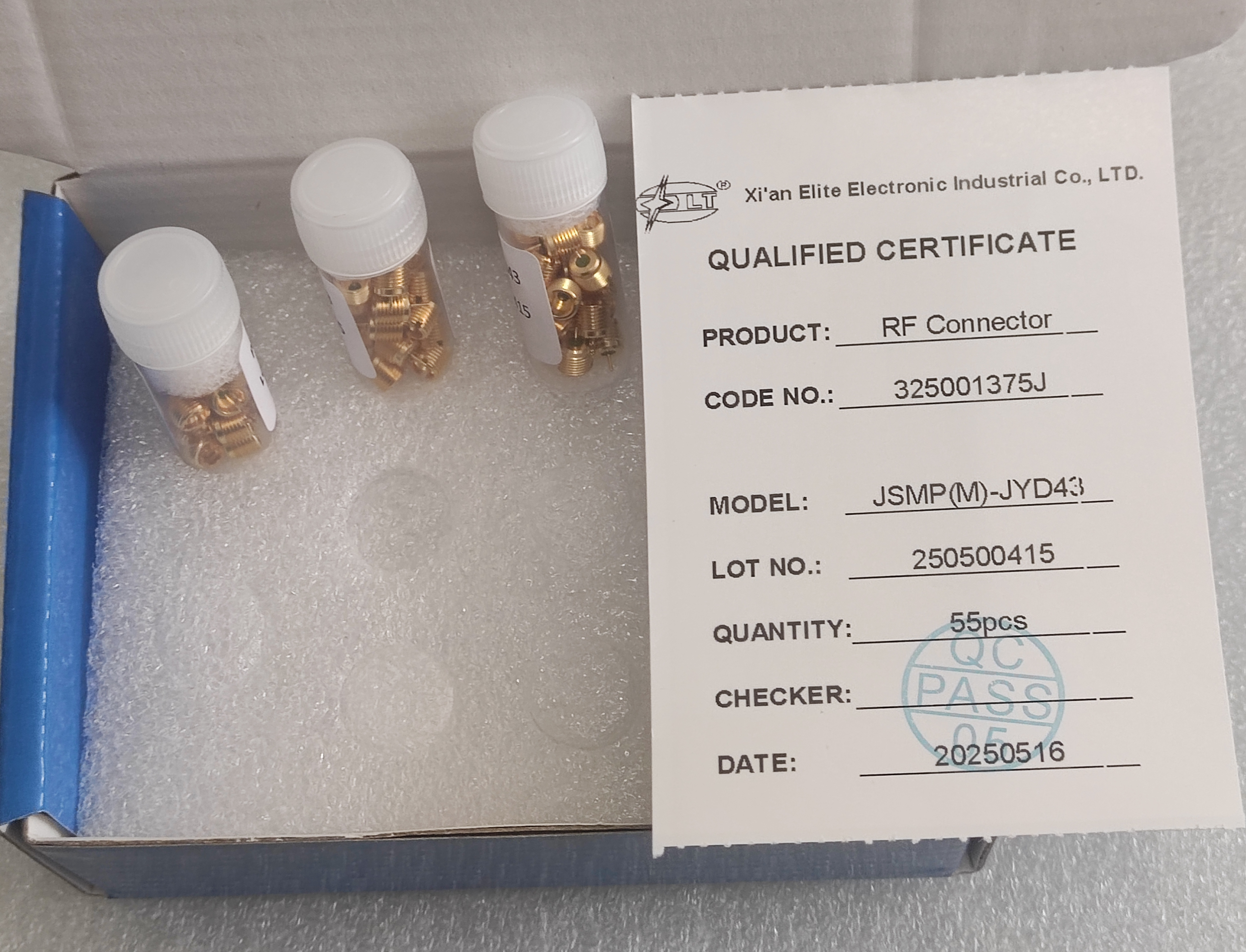

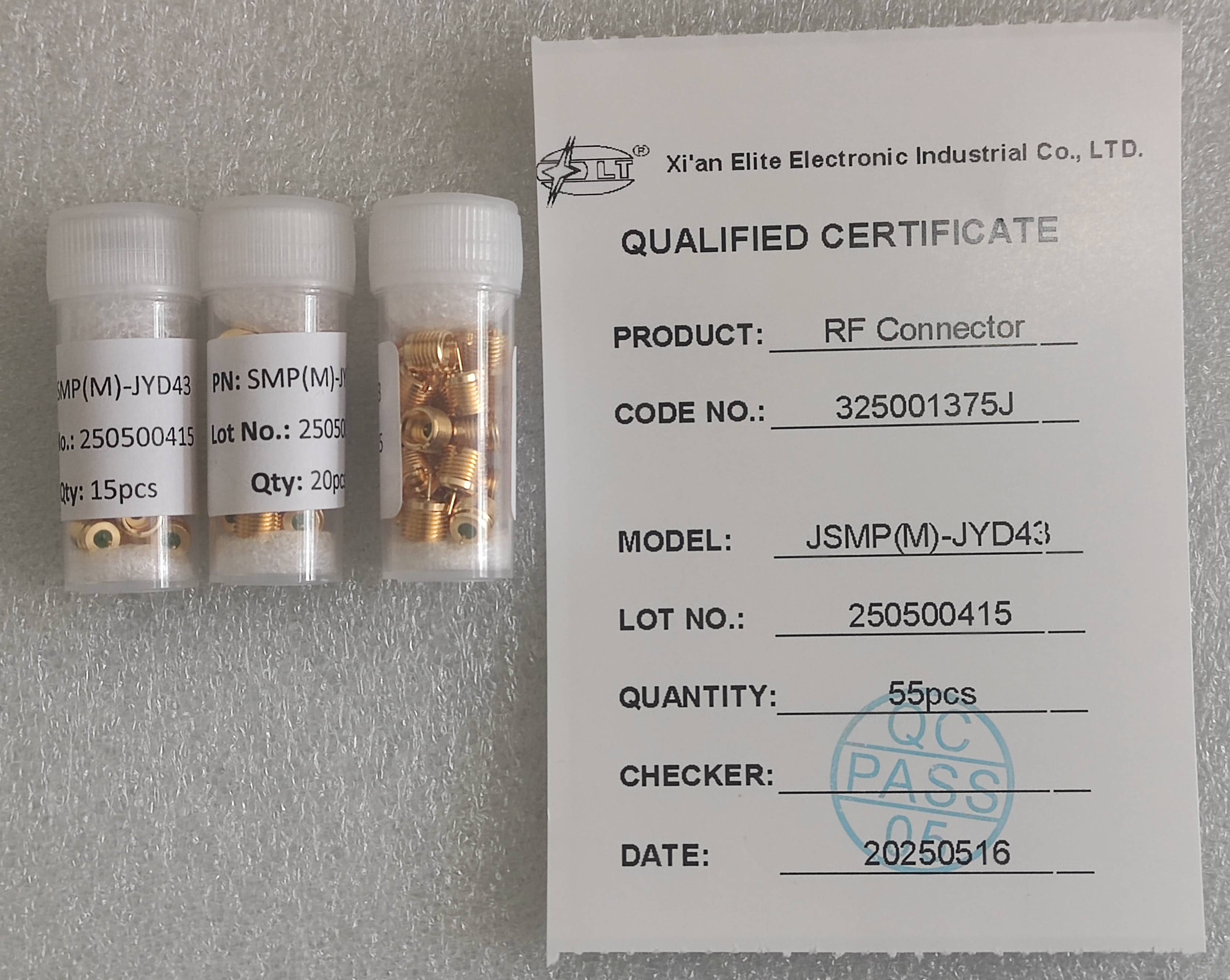

Packaging

Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector

Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector

Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector

Other Hermetically Sealed SMP RF Connector(mm):

1.

Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector

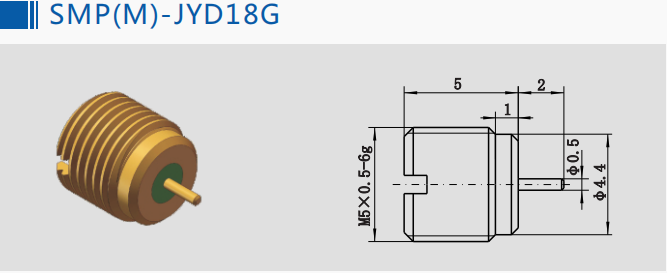

Model Number Description
SMP(M)-JYD18G Stainles steel SMP male limited detent bulkhead rf connector
SMP(M)-JYD18G-S Stainles steel SMP male smooth bore bulkhead rf connector

2.

Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector

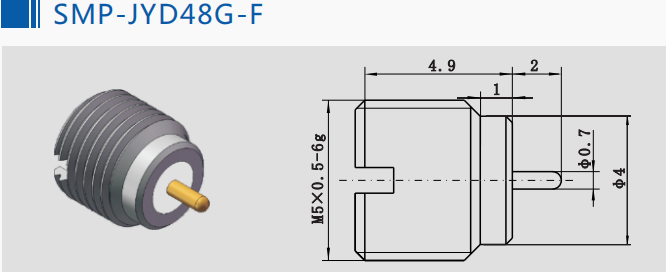

Model Number Description
SMP-JYD48G-F Stainless steel SMP male full detent bulkhead rf connector

3.

Hermetically Sealed SMP Male Limited Detent Bulkhead RF Plug Connector

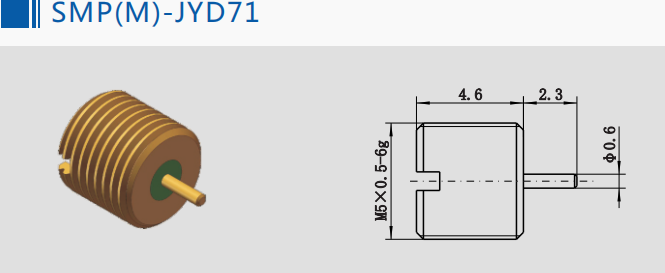

Model Number Description
SMP(M)-JYD71 Hermetically sealed SMP male limited detent bulkhead rf connector

Key Features:

Mating styles:push-on and snap-on

Detent systems:limited detent

Available for board-to-board and cable-to-board configurations

High reliability

High mechanical stability

Up to 40GHz

Applications:

Antennas

Broadband

5G mobile telecommunications

* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available

NOTE:
We have many types of SMP Hermetically Sealed Connectors for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.
