50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB
50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB
Specifications
Brand Name :
ELT
Model Number :
SSMP-JHD19
Certification :
ISO9001, IS014001
Place of Origin :
Xi'an, China
MOQ :
MOQ 100 pieces
Price :
The price depend on the quantity
Payment Terms :
T/T,L/C,D/P
Supply Ability :
As requirements
Delivery Time :
8-12 weeks for new production
Packaging Details :
100pcs/bag or plastic bottle;100pcs/carton as requirement
Product Name :
SMPM Male PCB Connectors
Model :
SSMP-JHD19
Frequency Range :
0.3MHz-40GHz
Impedance :
50Ω
Rated Voltage :
170v
DWV :
500V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Kaval Alloy, Gold Plated
Outer Conductor :
Kaval Alloy, Gold Plated
Samples :
Available，In Stock
Description
50Ω SMPM Male Full Detent 4 Leg RF Coaxial Connector 0.3MHz-40GHz 170V for PCB Soldering
Product Description

The SMPM coaxial connector features a compact design optimized for small package requirements, making it ideal for high data rate applications. Its superior shielding capabilities minimize signal interference, ensuring optimal signal transmission at high speeds.

When paired with an SMPM female-to-female adapter, this connector system provides reliable board-to-board connections while compensating for radial and axial misalignments during installation. This makes the SMPM coaxial connector an excellent choice for high-performance applications requiring precision in compact spaces.

Product Specifications
Item Value
Product Name SMPM Male PCB Connector
Model SSMP-JHD80
Frequency Range 0.3MHz-40GHz
Impedance 50Ω
Rated Voltage 170V
DWV 500V
Insulation Resistance ≥5000MΩ
Center Conductor Kaval Alloy, Gold Plated
Outer Conductor Kaval Alloy, Gold Plated
Insulation Dielectric Glass

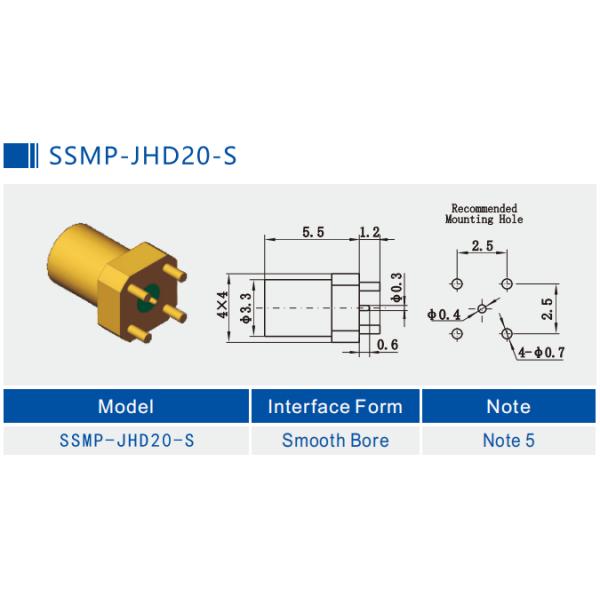

Product Outline Dimensions (Unit: mm)
50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB 50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB 50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB
Note 1:Hermetic Note 2:Engagement Depth 1.4 Note 3: Engagement Depth 1.7 Note 4:Engagement Depth 1.95 Note 5: Engagement Depth 2.11
Applications
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields

Elite Electronic manufactures SMPM connectors using premium materials and rigorous quality control processes to ensure exceptional durability and reliability in extreme environments.

50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB
Packaging & Shipping

Each SMPM connector is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.

50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB
For model availability and additional series options, please contact us at sales3@xa-elite.com.cn.
Note: While some models are in stock, all catalog-listed models can be produced quickly upon request.
