SMPS Male PCB Connector 60GHz 50Ω Gold Plated RF Coaxial
SMPS Male PCB Connector 60GHz 50Ω Gold Plated RF Coaxial
Specifications
Brand Name :
ELT
Model Number :
CMSP(M)-JHD22
Certification :
ISO9001, IS014001
Place of Origin :
Xi'an, China
MOQ :
MOQ 50 pieces
Price :
The price depend on the quantity
Payment Terms :
T/T,L/C,D/P
Supply Ability :
As requirements
Delivery Time :
8 weeks for new production
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
SMPS Male PCB Connector
Model :
CMSP(M)-JHD22
Frequency Range :
0.3MHz-60GHz
Impedance :
50Ω
Rated Voltage :
85v
DWV :
250V
Insulation Resistance :
≥2000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Insulators :
Glass Sintering
Samples :
Available，In Stock
Description
Hermetically Sealed with Glass SMPS (CSMP) Male PCB Soldering RF Coaxial Connector Up to 60GHz
Product Specifications
Items Value
Product Name SMPS Male PCB Connector
Model
CMSP(M)-JHD22
Frequency Range 0.3MHz-60GHz
Impedance 50Ω
Rated Voltage 86v
DWV 250V
Insulation Resistance ≥2000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Insulators Glass Sintering
Product Overview

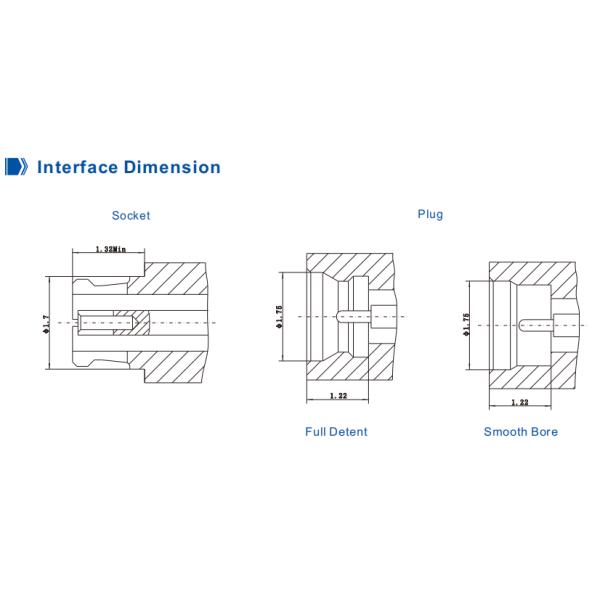

CSMP connectors are ultra-miniature push-on RF coaxial connectors characterized by the small size (smaller than SSMP), light weight, and wide operating frequency range. They are used in pairs for board to board connections, suitable for modular dense mounting. The plug has two interface forms: full detent and smooth bore.
SMPS Male PCB Connector 60GHz 50Ω Gold Plated RF Coaxial

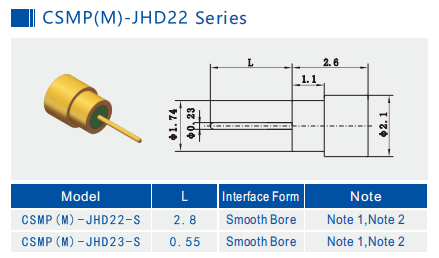

Product Details
SMPS Male PCB Connector 60GHz 50Ω Gold Plated RF Coaxial
More models, please download our CSMP(SMPS) catalog.
Applications
Ideal for high-precision microwave signal transmission in:
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
SMPS Male PCB Connector 60GHz 50Ω Gold Plated RF Coaxial
Packaging & Shipping
Packaging: Each CSMP connectors is carefully packaged in protective cartons to ensure safe transit. SMPS Male PCB Connector 60GHz 50Ω Gold Plated RF Coaxial Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar CSMP connectors models, please check our catalog. All can be produced quickly for the model on catalog.
