Waveguide to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 from 6.5GHZ to 145GHz
Waveguide to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 from 6.5GHZ to 145GHz
Waveguide to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 from 6.5GHZ to 145GHz
Waveguide to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 from 6.5GHZ to 145GHz
Waveguide to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 from 6.5GHZ to 145GHz
Waveguide to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 from 6.5GHZ to 145GHz
Specifications
Brand Name :
ELT
Model Number :
K/BJ260-KFE5
Certification :
ISO9001, ISO14001
Place of Origin :
Xi'an Shaanxi
MOQ :
10pcs if no stock
Price :
Depend on the quantity
Payment Terms :
L/C,T/T
Supply Ability :
Depend on your requirements
Delivery Time :
Within 8-12 weeks after payment
Packaging Details :
Carton Box
Product Name :
Waveguide to coaxial adapter
Waveguide Size :
BJ260 (WR34)
Frequency Range :
21.7GHz～33GHz
VSWR :
≤1.3
Insertion Loss :
≤0.35dB
Waveguide Style :
End Launch, Right Angle
Frequency :
6.5GHz to 145GHz
Waveguide Port :
WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180
Description
  • Product Introduction
Elite Electronic designs & manufactures waveguide-to-coaxial adapters with a frequency range of 5.4GHz to 110GHz. Boasting high reliability, compact size, and outstanding performance, these adapters are widely utilized in microwave measurement systems and millimeter-wave equipment,typically utilized in radar system designs for their high-power handling capabilities, in antenna feed networks for low loss and phase precision, and in test laboratories.

Waveguide ports are available in standard rectangular and double-ridged configurations, with custom non-standard waveguide ports also offered to meet specific user requirements. The coaxial end features a comprehensive range of connection interfaces, including N, TNC, SMA, SMP, 3.5mm, K (2.92mm), 2.4mm, 1.85mm, 1.0mm, 0.8mm and microstrip types. Structurally, the waveguide-to-coaxial adapters are categorized into two types: end-launch and right-angle. Notably, the right-angle model can also be configured for high-power applications.

Waveguide Rectangular short as WR with the accompanying number indicating the waveguide’s inner width in hundredths of an inch. Our product range includes waveguides rectangular according to standard models such as WR-90,WR-75, WR-60, WR51, WR-42, WR-34, WR-28, WR-22, WR-19, WR-15, WR-12, WR-10, WRD750, WRD650, WRD500, WRD180 . We also can custom according to the drawing.

  • Outline Drawing

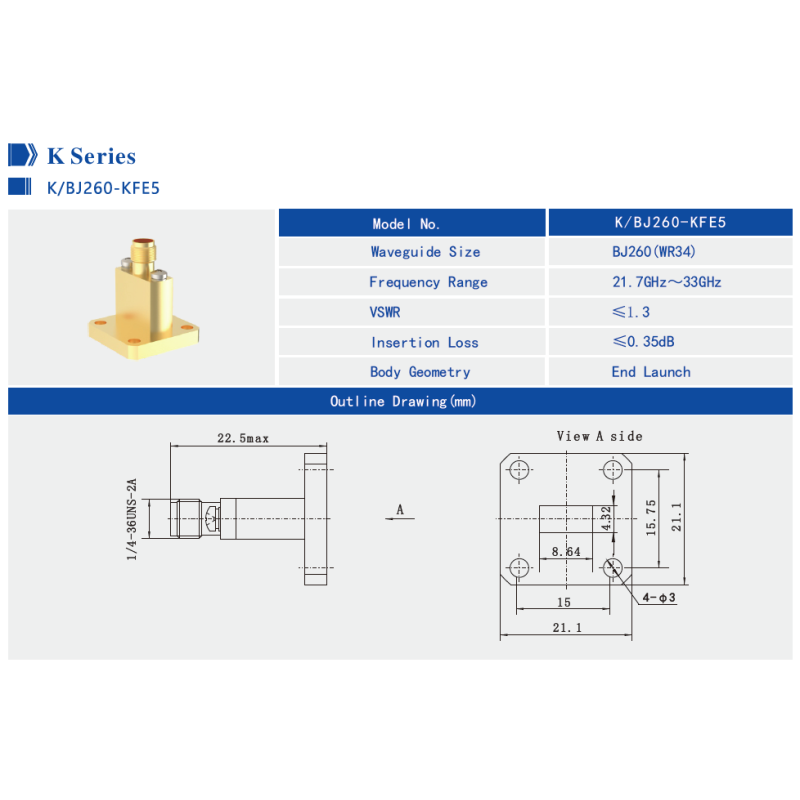

WR34 to K 2.92mm Female End Lauch Waveguide to Coaxial Adapter, 21.7~33GHz
Waveguide to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 from 6.5GHZ to 145GHz

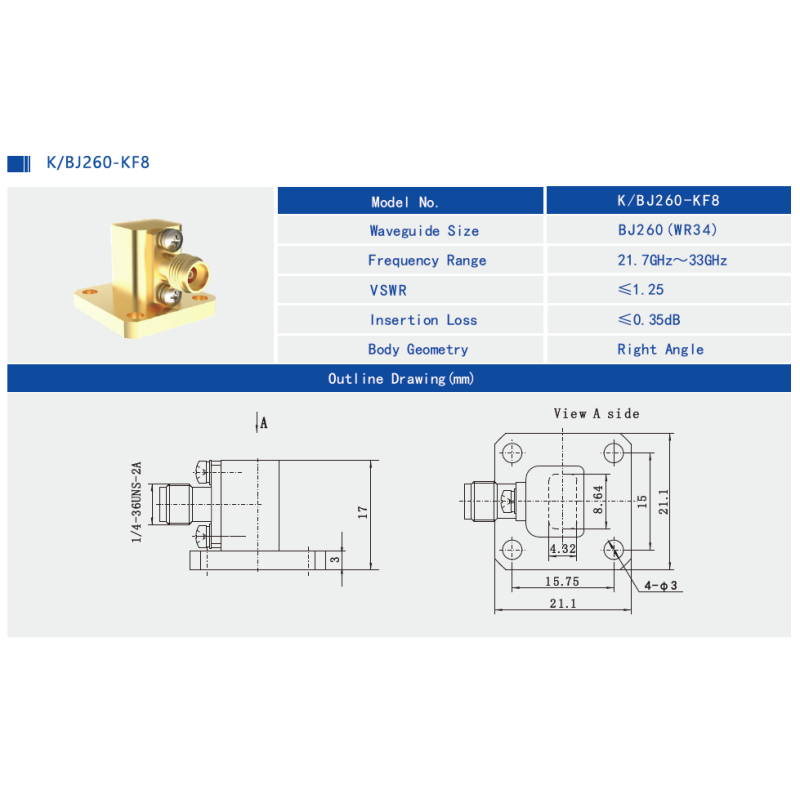

WR34 to K 2.92mm Female Right Angle Waveguide to Coaxial Adapter, 21.7~33GHz

Waveguide to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 from 6.5GHZ to 145GHz
  • Cross-references of Waveguide Standards -WR Series & BJ Series

Chinese Standard International Standard Frequency Range (GHz)
BJ84 WR112 6.57~9.99
BJ100 WR90 8.20~12.5
BJ120 WR75 9.84~15.0
BJ140 WR62 11.9~18.0
BJ180 WR51 14.5~22.0
BJ220 WR42 17.6~26.7
BJ260 WR34 21.7~33.0
BJ320 WR28 26.3~40.0
BJ400 WR22 32.9~50.1
BJ500 WR19 39.2~59.6
BJ620 WR15 49.8~75.8
BJ740 WR12 60.5~91.9
BJ900 WR10 73.8~112
