50Ω 40GHz Hermetically Sealed SMPM Plug Full Detent for PCB Solder with Pin OD 2.18mm Aerospace RF Connectors with Low Insertion Loss
50Ω 40GHz Hermetically Sealed SMPM Plug Full Detent for PCB Solder with Pin OD 2.18mm Aerospace RF Connectors with Low Insertion Loss
Specifications
Brand Name :
ELT
Model Number :
SMPM(MB)-JHD186-F
Certification :
RoHS
Place of Origin :
Xi'an, China
MOQ :
MOQ 50 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
SMPM PCB Plug
Model :
SMPM(MB)-JHD186-F
Frequency Range :
0.3MHz-40GHz
Impedance :
50Ω
DWV :
500V
Insulation Resistance :
≥5000MΩ
Center Conductor :
≤8mΩ; Kavar Alloy, Gold Plated
Outer Conductor :
≤3.5mΩ; Kavar Alloy, Gold Plated
Insulator :
Colorless transparent glass
VSWR :
≤1.4
Insertion Loss :
≤0.4dB
Leakage Rate :
≤1.01325×10-3Pa·cm3/s
Temperature :
-55℃ ~125℃
Durability :
500 Cycles
Description
50Ω 40GHz Hermetically Sealed SMPM Plug Full detent for PCB Solder with Pin OD 2.18mm Aerospace RF Connectors with Low Insertion Loss



The SMPM series connector is a subminiature push-on RF coaxial connector. It features compact size (smaller than the SMP series), light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 50 GHz. The male connector is available in two interface types: full detent and smooth bore. Its blind-mate interconnection allows axial and radial floating of the mating structure. It is suitable for RF and microwave signal transmission as well as modular dense mounting applications, and is widely used in vehicle-borne, ship-borne and satellite-borne fields.



SMPM Design Features
  • Compact design
  • Frequency band operation up to 40GHz
  • Rugged construction for reliability
  • Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
  • Low VSWR & Insertion loss


Interface of SMPM RF Coaxial Connectors
50Ω 40GHz Hermetically Sealed SMPM Plug Full Detent for PCB Solder with Pin OD 2.18mm Aerospace RF Connectors with Low Insertion Loss

50Ω 40GHz Hermetically Sealed SMPM Plug Full Detent for PCB Solder with Pin OD 2.18mm Aerospace RF Connectors with Low Insertion Loss

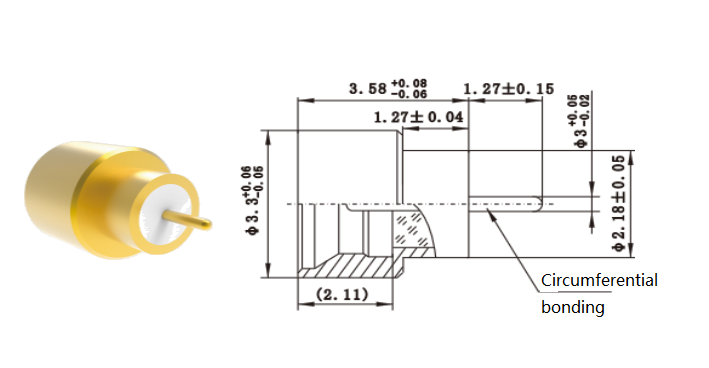

Model No.: SMPM(MB)-JHD186-F
50Ω 40GHz Hermetically Sealed SMPM Plug Full Detent for PCB Solder with Pin OD 2.18mm Aerospace RF Connectors with Low Insertion Loss

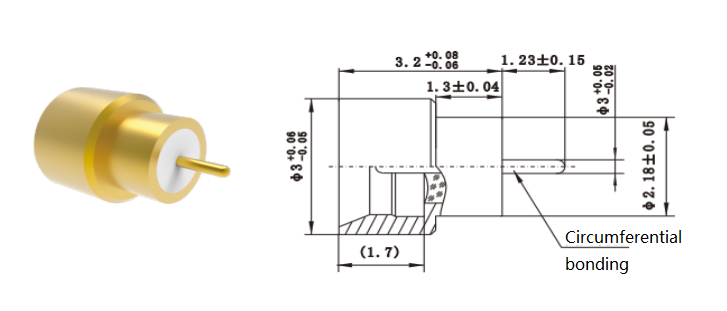

Similar Hermetically Sealed SMPM Full Detent Model No.: SMPM(1.7)(MB)-JHD303-F
50Ω 40GHz Hermetically Sealed SMPM Plug Full Detent for PCB Solder with Pin OD 2.18mm Aerospace RF Connectors with Low Insertion Loss

Note: Please contact sales freely for detailed datasheet.
Note: Please check our catalog for more similar models according to your application.
