WR 42 Waveguide to 2.92mm K Type Adapter 18GHz~26.5GHz End Launch Aerospace RF Connectors Using for K Band
WR 42 Waveguide to 2.92mm K Type Adapter 18GHz~26.5GHz End Launch Aerospace RF Connectors Using for K Band
Specifications
Brand Name :
ELT
Model Number :
BTZH-H1H-3
Certification :
RoHS
Place of Origin :
Xi'an, China
MOQ :
MOQ 10 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
8-12weeks
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
Waveguide to K Type Adapter
Model :
BTZH-H1H-3
Frequency Range :
18GHz~26.5GHz
Impedance :
50Ω
DWV :
500V
Insulation Resistance :
≥5000MΩ
VSWR :
≤1.25
Insertion Loss :
≤0.25dB
Temperature :
-55℃ ~125℃
Description
WR 42 Waveguide to 2.92mm K Type Adapter Ku/K Band 15GHz~22GHz End Launch Aerospace RF Connectors with Low Insertion Loss


Elite Electronics produces aerospace-grade waveguide to coaxial adapter, available in two structural types: End launch and right angle type. The frequency ranges from 5.3 GHz to 145 GHz. The rectangular waveguide ports include: BJ70(WR137), BJ84(WR112), BJ100(WR90), BJ120(WR75), BJ140(WR62), BJ180(WR51), BJ220(WR42), BJ260(WR34), BJ320(WR28), BJ400(WR22), BJ500(WR19), BJ620(WR15), BJ740(WR12), BJ900(WR10), BJ 1200(WR8)

The coaxial interface cover SMA, 2.92 mm, 2.4 mm and 1.85 mm, 1.0mm, 0.8mm series. Each waveguide port supports the full waveguide bandwidth. Featuring reliable structure, compact outline dimensions, excellent electrical performance with good consistency, and light weight (≤20 g), these products are widely used in various types of spacecraft.



Waveguide to Coaxial Adapter Design Features
  • Compact design
  • Frequency band operation up to 145GHz
  • Rugged construction for reliability
  • Available in multiple configurations: end launch, right angle options
  • Low VSWR & low Insertion loss

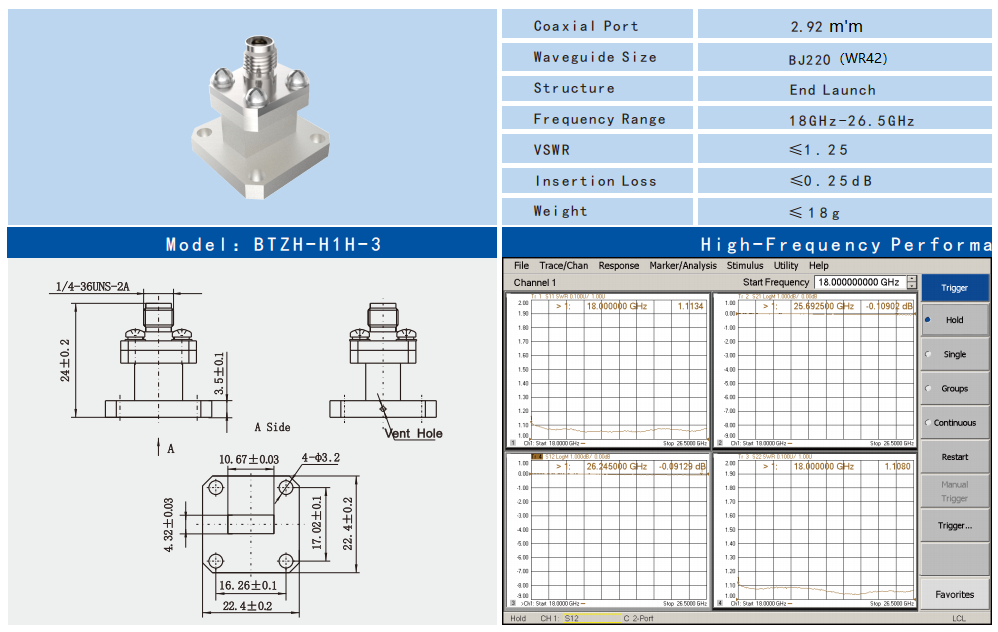

50Ω 18GHz~26.5GHz WR 42 / BJ220 Waveguide to 2.92mm Adapter K Band End Launch Aerospace RF Connectors with Low VSWR
Model : BTZH-H1H-3
WR 42 Waveguide to 2.92mm K Type Adapter 18GHz~26.5GHz End Launch Aerospace RF Connectors Using for K Band
Note: Please contact sales freely for more model details.
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
WR 42 Waveguide to 2.92mm K Type Adapter 18GHz~26.5GHz End Launch Aerospace RF Connectors Using for K Band
Packaging & Shipping
Each end launch waveguide WR42 to 2.92mm adapter aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
WR 42 Waveguide to 2.92mm K Type Adapter 18GHz~26.5GHz End Launch Aerospace RF Connectors Using for K Band
Related Information of Waveguide Port: (for reference only)
BJ WR Frequency (GHz) Inner Width Inner Hight Common Freq. Band
BJ70 WR137 5.38～8.17 34.85 15.80 C/X Band
BJ84 WR112 6.57～9.99 28.50 12.62 X Band
BJ100 WR90 8.20～12.50 22.86 10.16 X Band
BJ120 WR75 9.84～15.00 19.05 9.525 Ku low freq.
BJ140 WR62 11.90～18.00 15.80 7.90 Ku Band
BJ180 WR51 15.80～24.00 12.95 6.48 Ku high/K low freq.
BJ220 WR42 18.00～26.50 10.67 5.33 K Band
BJ260 WR34 21.70～33.00 8.636 4.318 Ka low freq.
BJ320 WR28 26.50～40.00 7.112 3.556 Ka
BJ400 WR22 33.00～50.00 5.690 2.845 Ka High freq. / U
BJ500 WR19 39.20～59.60 4.775 2.388 U/V Band
BJ620 WR15 50.00～75.00 3.759 1.880 V Band
BJ740 WR12 60.50～91.90 3.099 1.549 E Band
BJ900 WR10 75.00～110.0 2.540 1.270 W Band
BJ1200 WR08 92.20～140.0 2.032 1.016 F Band
