WR28 BJ320 End Launch Waveguide to 2.92mm K Type Coaxial Adapter 26.4GHz-38GHz Ka Band Aerospace Grade RF Waveguide Coax Transition Connector
WR28 BJ320 End Launch Waveguide to 2.92mm K Type Coaxial Adapter 26.4GHz-38GHz Ka Band Aerospace Grade RF Waveguide Coax Transition Connector
Specifications
Brand Name :
ELT
Model Number :
BTZH-H1J-3
Certification :
ISO 9001, ISO14001
Place of Origin :
Xi'an, China
MOQ :
MOQ 10pcs
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
8-12weeks after receiving payment
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
WR28 to Coaxial 2.92mm K type Adapter
Model :
BTZH-H1J-3
Frequency Range :
26.4GHz~38GHz
Center Conductor :
Copper Alloy, Gold Plating
Outer Conductor :
Aluminium alloy, nature color conductive oxidation
Structure :
End Launch
Coaxial Port :
2.92mm K Type
Waveguide Port :
BJ320 / WR28
Mount Method :
4 Holes Flange Mount
VSWR :
≤1.25
Insertion Losss :
≤0.25dB
Weight :
≤16g
Description

Product Description:


Waveguide to K-Type (2.92mm) mmWave

Elite Electronics produces aerospace-grade waveguide to coaxial adapter, available in two structural types: End launch and right angle type. The frequency ranges from 5.3 GHz to 145 GHz. The rectangular waveguide ports include: BJ70(WR137), BJ84(WR112), BJ100(WR90), BJ120(WR75), BJ140(WR62), BJ180(WR51), BJ220(WR42),BJ260(WR34), BJ320(WR28), BJ400(WR22), BJ500(WR19), BJ620(WR15), BJ740(WR12), BJ900(WR10), BJ 1200(WR8) The coaxial interface cover SMA, 2.92 mm, 2.4 mm and 1.85 mm, 1.0mm, 0.8mm series. Each waveguide port supports the full waveguide bandwidth. Featuring reliable structure, compact outline dimensions, excellent electrical performance with good consistency, and light weight (≤20 g), these products are widely used in various types of spacecraft.


2.92mmWave connectors also known as the K Type connector, the K-type connector is a widely utilized millimeter-wave connector with a maximum operating frequency of up to 40 GHz. 2.92mm connectors we have cable connectors, flange mount connectors, bulkhead connectors. Featuring an air dielectric interface, it is fully interchangeable and compatible with SMA series and 3.5mm connectors, offering key benefits including compact size, lightweight design, high operating frequency, and stable, reliable connectivity.

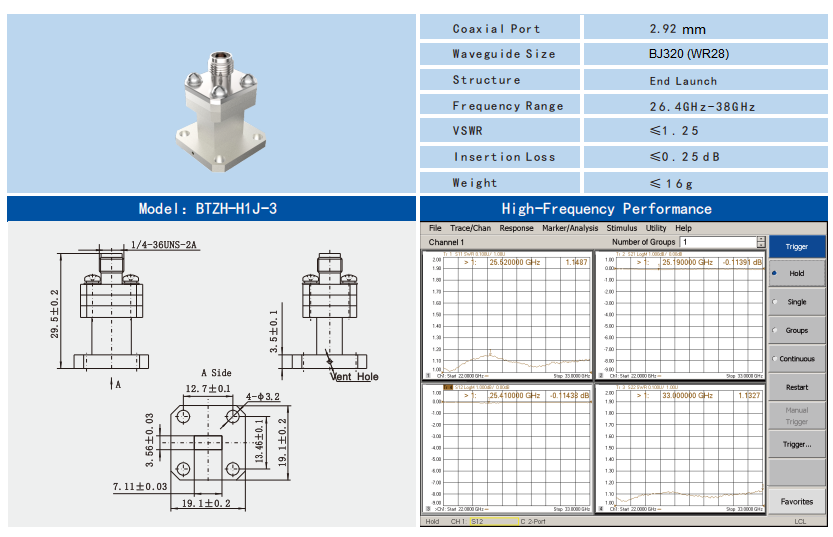

Outline Dimension of waveguide WR28 to K-type connectors:

Model No.: BTZH-H1J-3

WR28 BJ320 End Launch Waveguide to 2.92mm K Type Coaxial Adapter 26.4GHz-38GHz Ka Band Aerospace Grade RF Waveguide Coax Transition Connector

More waveguide connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available

Applications:

Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields. Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

Packing & Shipping


Packaging:

The waveguide WR 28 to coaxial K type 2.92mm connectors is carefully packaged in carton to ensure its protection during transit.

WR28 BJ320 End Launch Waveguide to 2.92mm K Type Coaxial Adapter 26.4GHz-38GHz Ka Band Aerospace Grade RF Waveguide Coax Transition Connector


Shipping:

We ship the the waveguide WR28 to coaxial K type 2.92mm connectors using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.

Waveguide Port Comparison

BJ

(Chinese Standard)

 WR Frequency (GHz) Inner Width Inner Height Common Freq. Band
BJ70 WR137 5.38～8.17 34.85 15.8 C/X Band
BJ84 WR112 6.57～9.99 28.5 12.62 X Band
BJ100 WR90 8.20～12.50 22.86 10.16 X Band
BJ120 WR75 9.84～15.00 19.05 9.525 Ku low freq.
BJ140 WR62 11.90～18.00 15.8 7.9 Ku Band
BJ180 WR51 15.80～24.00 12.95 6.48 Ku high/K low freq.
BJ220 WR42 18.00～26.50 10.67 5.33 K Band
BJ260 WR34 21.70～33.00 8.636 4.318 Ka low freq.
BJ320 WR28 26.50～40.00 7.112 3.556 Ka
BJ400 WR22 33.00～50.00 5.69 2.845 Ka High freq. / U
BJ500 WR19 39.20～59.60 4.775 2.388 U/V Band
BJ620 WR15 50.00～75.00 3.759 1.88 V Band
BJ740 WR12 60.50～91.90 3.099 1.549 E Band
BJ900 WR10 75.00～110.0 2.54 1.27 W Band
BJ1200 WR08 92.20～140.0 2.032 1.016 F Band
