WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components
WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components
Specifications
Brand Name :
ELT
Model Number :
BTZH-P2K-1
Certification :
ISO 9001, ISO14001
Place of Origin :
Xi'an, China
MOQ :
MOQ 10pcs
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
8-12weeks after receiving payment
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
WR22 to Coaxial 2.4mm Adapter
Model :
BTZH-P2K-1
Frequency Range :
23.9GHz-50.1GHz
Center Conductor :
Copper Alloy, Gold Plating
Outer Conductor :
Aluminium alloy, nature color conductive oxidation
Structure :
Right Angle
Coaxial Port :
2.4mm
Waveguide Port :
BJ400 / WR22
Mount Method :
4 Holes Round Flange Mount
VSWR :
≤1.25
Insertion Losss :
≤0.25dB
Weight :
≤16g
Description

Product Description:


Waveguide to 2.4mm mmWave Adapter

Elite Electronics manufactures high-performance aerospace-grade waveguide-to-coaxial adapters supplied in two core constructions: end-launch and right-angle configurations. Covering an extensive frequency range from 5.3 GHz to 145 GHz, our rectangular waveguide options span standard BJ / WR specifications: BJ70(WR137), BJ84(WR112), BJ100(WR90), BJ120(WR75), BJ140(WR62), BJ180(WR51), BJ220(WR42), BJ260(WR34), BJ320(WR28), BJ400(WR22), BJ500(WR19), BJ620(WR15), BJ740(WR12), BJ900(WR10), BJ1200(WR8).

Available coaxial interfaces include SMA, 2.92 mm, 2.4 mm, 1.85 mm, 1.0 mm and 0.8 mm series, with every waveguide port rated for full-bandwidth operation across its designated frequency band.

Boasting robust mechanical construction, compact footprint, superior consistent RF performance and low weight below 20 grams, our aerospace waveguide-coax transition adapters are extensively deployed in satellite and spacecraft aerospace applications.

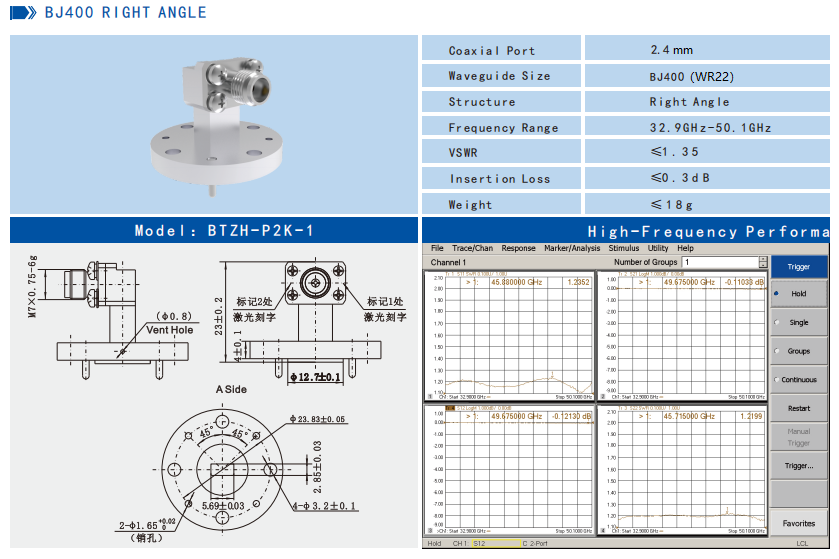

Outline Dimension of waveguide WR22 to 2.4mm connectors:

Model No.: BTZH-P2K-1

WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components


More waveguide connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available

Applications:

Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields. Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

Packing & Shipping


Packaging:

The waveguide WR 22 to coaxial 2.4mm connectors is carefully packaged in carton to ensure its protection during transit.

WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components


Shipping:

We ship the the waveguide WR22 to coaxial 2.4mm connectors using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.

Waveguide Port Comparison

BJ

(Chinese Standard)

 WR Frequency (GHz) Inner Width Inner Height Common Freq. Band
BJ70 WR137 5.38～8.17 34.85 15.8 C/X Band
BJ84 WR112 6.57～9.99 28.5 12.62 X Band
BJ100 WR90 8.20～12.50 22.86 10.16 X Band
BJ120 WR75 9.84～15.00 19.05 9.525 Ku low freq.
BJ140 WR62 11.90～18.00 15.8 7.9 Ku Band
BJ180 WR51 15.80～24.00 12.95 6.48 Ku high/K low freq.
BJ220 WR42 18.00～26.50 10.67 5.33 K Band
BJ260 WR34 21.70～33.00 8.636 4.318 Ka low freq.
BJ320 WR28 26.50～40.00 7.112 3.556 Ka
BJ400 WR22 33.00～50.00 5.69 2.845 Ka High freq. / U
BJ500 WR19 39.20～59.60 4.775 2.388 U/V Band
BJ620 WR15 50.00～75.00 3.759 1.88 V Band
BJ740 WR12 60.50～91.90 3.099 1.549 E Band
BJ900 WR10 75.00～110.0 2.54 1.27 W Band
BJ1200 WR08 92.20～140.0 2.032 1.016 F Band
