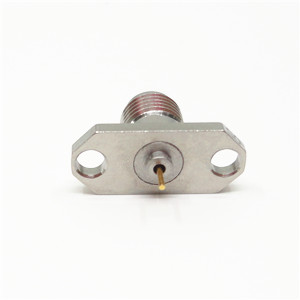

Stainless Steel Housing Straight 2.92mm RF Connector for Radar
Stainless Steel Housing Straight 2.92mm RF Connector for Radar
Stainless Steel Housing Straight 2.92mm RF Connector for Radar
Stainless Steel Housing Straight 2.92mm RF Connector for Radar
Stainless Steel Housing Straight 2.92mm RF Connector for Radar
Stainless Steel Housing Straight 2.92mm RF Connector for Radar
Stainless Steel Housing Straight 2.92mm RF Connector for Radar
Stainless Steel Housing Straight 2.92mm RF Connector for Radar
Specifications
Brand Name :
ELT
Model Number :
K-KFD140G
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Insulator :
PTFE
Gender :
Female
Product name :
2.92mm,K type,SMK
Key features :
2 Holes Flange Panel Connectors
Item :
Millimeter Wave Connectors
Plating :
Passivated
Application :
Computer/LANs
Material :
Stainless Steel
Description

Stainless Steel Housing 2.92 MM Straight Connector for Radar

K type is also called 2.92 type connector, this serie of products is a commonly used millimeter wave connectors, with a frequency of up to 40 GHz, can be used with SMA series and 3.5 series products are interchangeable and adopt air interface with small size, light weight, high frequency of use, reliable connection, etc.

Stainless Steel Housing Straight 2.92mm RF Connector for Radar

Features of Stainless Steel Housing 2.92 MM Straight Connector for Radar(mm):

  1. An air dielectric with a loss-loss plastic center conductor support.
  2. It can mate and interchange with SMA series, K series, 2.4mm, 3.5mm connectors.
  3. Superior electrical performance up to 40GHz
  4. It have the advantages of small volume, light weight, high use frequency, reliable connect.
  5. Great for applications that require high frequency transmission
  6. Connector mating interface per MIL-STD-348
  7. Female contacts have unique three-slot construction
  8. It has the high use frequency, reliable connect.

Application of Stainless Steel Housing 2.92 MM Straight Connector for Radar(mm):

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system

Specification of Stainless Steel Housing 2.92mm Straight Connector for Radar(mm):

Impedance 50 Ω
Frequency Range DC - 40GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio
VSWR		 ≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ
Inner Conductor Male plug: Brass, Gold Plated
Female Jack: BeCu, Gold Plated
Resilient Contact BeCu, Nickel Plated
Body / Shell / Housing Brass, Gold Plated
Stainless Steel, Passivated
Insulator PEI
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m

Other 2.92mm Male Female RF Connector:

Part Number
Description
K-KFD3
2.92mm Type K Female RF Coaxial Connector
K-KFD42
Stainless steel 2.92mm Type K Female RF Coaxial Connector
K-KFD62G
2.92mm Type K Female RF Coaxial Connector

K-JFD9G
Stainless steel 2.92mm Type K Male RF Coaxial Connector

1.

Stainless Steel Housing Straight 2.92mm RF Connector for Radar

2.

Stainless Steel Housing Straight 2.92mm RF Connector for Radar

3.

Stainless Steel Housing Straight 2.92mm RF Connector for Radar

4.

Stainless Steel Housing Straight 2.92mm RF Connector for Radar

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.

Stainless Steel Housing Straight 2.92mm RF Connector for Radar
