18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm For Antenna
18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm For Antenna
18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm For Antenna
18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm For Antenna
Specifications
Brand Name :
ELT
Model Number :
SMA-JB1-2
Certification :
CE ROHS
Place of Origin :
Shaanxi, China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000000 Pieces Per Month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Impedence :
50 Ohm
Durability :
500 Cycles
Inter Conduct :
Brass
Rating Voltage :
335VRMS
Insulation Resistance :
≥5000mohm
DWV :
1000VRMS
Description

18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm for Antenna

SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advan tages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 335VRMS
Dielectrics Voltage-resistance 1000VRMS
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3

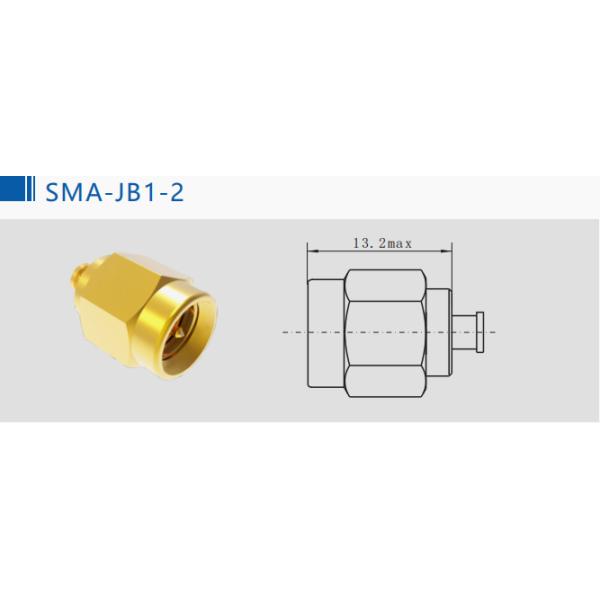

Details of 18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm for Antenna(mm):

18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm For Antenna

Model Number Cable Type Description
SMA-JB1-2 1#semi-rigid/1#semi flexible SMA male rf connector for cable

Other SMA RF Connector(mm):

1.

Model Number Cable Type Description
SMA-JB2-14 2#semi-rigid/2#semi flexible SMA male rf connector for cable

2.

Model Number Cable Type Description
SMA-JB2G-15 2#semi-rigid/2#semi flexible Stainless steel SMA male rf connector for cable

3.

Model Number Cable Type Description
SMA-JWB2G-4 2#semi-rigid/2#semi flexible Stainless steel SMA male right angle rf connector for cable

Features and Adavantages of 18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm for Antenna(mm):

Impedance 50 Ω

high-quality and high-performance

Light weight, compact and vibration proof design

Applications of 18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm for Antenna(mm):
Microwave Systems Telecommunications
Civil & Military Aeronautics
5G Solutions
Military Equipment, Space
Measurement Systems
Mobile Telephone WiFi Antennas Systems
