Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable
Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable
Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable
Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable
Specifications
Brand Name :
ELT
Model Number :
K-JW506G
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Material :
Stainless Steel
Gender :
male
Product name :
2.92mm,K type,SMK
Keywords :
Cable Connector
Item :
Millimeter Wave Connectors
Plating :
Nickel Plated
Application :
RF
Surface Plating :
Passivate
Description

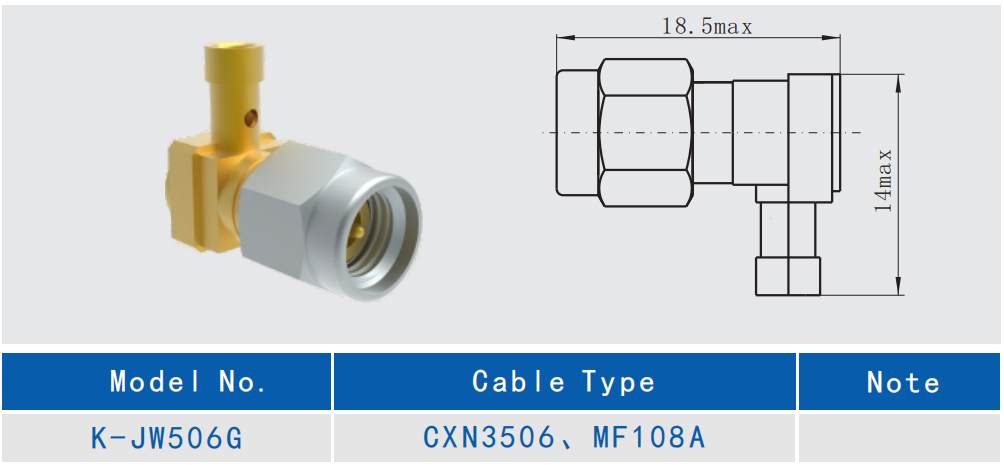

Male Right Angle Stainless Steel K(2.92mm) RF Coaxial Connector for CXN3506/MF108A Cable

Xi'an Elite Electronic’s right angle cable assemblies and connectors provide excellent electrical performance from DC up to 40GHz. No need to sacrifice performance for space, these high-performance connectors are compact in size and have outstanding durability. Currently available for CXN3506 and MF108A cable types and in SMA and 2.92mm series.

Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable
Specification:
Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable

Impedance 50Ω
Frequency Range DC - 40GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)

Voltage Standing Wave Ratio
VSWR

 ≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ
Inner Conductor Male plug: Brass, Gold Plated
Female Jack: Beryllium bronze, Gold Plated
Body / Shell / Housing

Brass, Gold Plated, Stainless Steel, Passivated
Insulator PEI/PLF
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m


Features:

*Space saving design reduces stress on solder joint.
*Replaces the need for tight bend of cable in order to fit in a tight spot.
*Standard flexible or semi-rigid cable termination.


Application:

*Rugged high-frequency RF applications
*Rapid prototyping
*High speed digital component test
*5G wireless test applications
