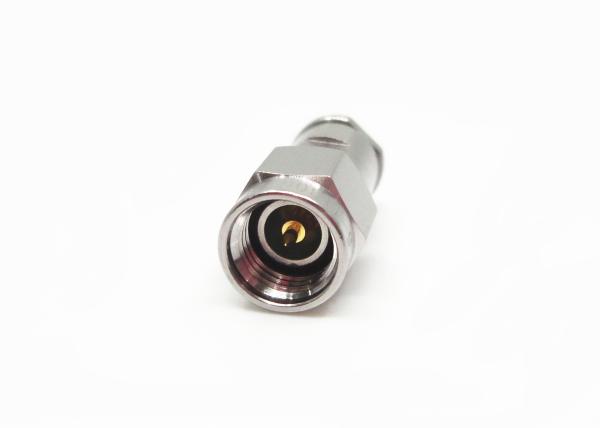

PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
Specifications
Brand Name :
ELT (Elite)
Model Number :
3.5-J130G
Certification :
CE Rohs ISO-9001
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Pieces Per Month
Delivery Time :
Within in 3 weeks
Packaging Details :
Standard Export Carton
Material :
Stainless Steel
Keywords :
3.5mm Connectors
Characteristic Impedence :
50Ω
Gender :
Female
Durability :
500 Cycles
Insulator :
PTFE
Application :
RF/Automotive/Base Station/ Radios /Satcom/Telecom
Frequency Range :
DC~33GHz
Description

Series 3.5mm milimeter wave RF Coaxial male connector

3.5mm connector is a common used millimeter wave connector, the frequency is 33GHZ (up to 36GHZ), use air interface, can mate and interchange with SMA series, K series connectors with advantages of great bandwidth, high reliability, it is widely used in microwave measurement and millimeter wave devices.

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~33GHz
Rated Voltage
335VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
1000VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ
Contact Resistance
Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.01+0.05f

Interface Dimension(mm)

PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max

Outline Drawing:

PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max

Materials and Mechanical Properties
Inner conductor Male Brass, Gold-plating
Female Beryllium Bronze,Gold-plating
Elastic Beryllium Bronze,Nickel plated
Shell & other Brass/Stainless steel Gold-plating/passivated
Insulator PEI
Sealing ring Silicone rubber
Temperature -55C°~+125C°
Mating Cycles
500
Mating Torque
0.79N·m～1.13N·m
