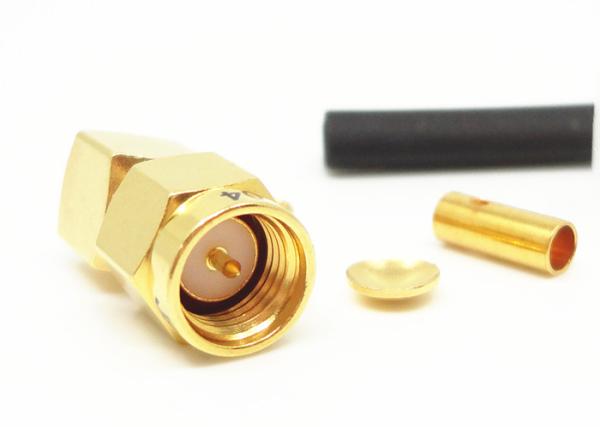

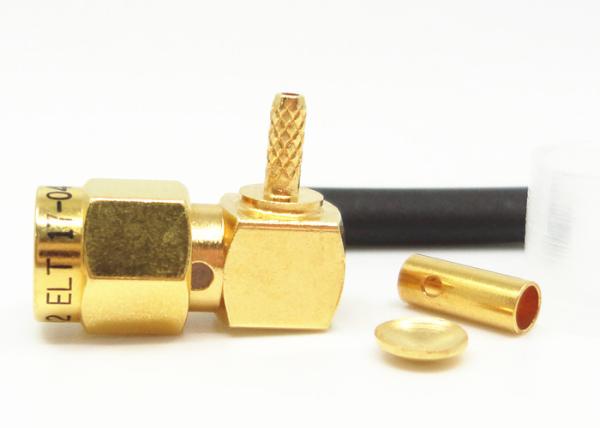

50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-JW2
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Pieces Per Month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMA RF Coaxial Conector
Impedance :
50Ω
Frequency :
DC~3GHz
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Body style :
Right Angle
Gender :
Male
Insulator :
PTFE
Cable Type :
RG178
Durability :
500 Cycles
Description

50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178

  • SMA is a kind of mini, high-frequency RF coaxial connector.
  • SMA is developed and produced according to MIL-C-39012 with characteristics of small volume, good bandwidth, superior electrical characteristics.
  • The high performance connector developed by our company can reach to 20GHz.
  • SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.

Specification:

Impedance 50Ohm
Frequency Range DC~3GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000 VRMS (Maximum sea-level)
Insulation Resistance ≥5000MΩ
Center conductor Male Copper Alloy, Gold Plated
Female Copper Alloy, Gold Plated
Shell and other metal parts Copper Alloy, Gold Plated
Cable sheath Brass nickle plated
Insulator PTFE
Seal ring Silicon rubber

Advantages:

  • Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP/SMPM, CSMP/SMPS etc.), more than 500
  • experienced workers with over 10 production lines
  • Specializes in manufacturing RF connector more than 23 years
  • Have long and Rich cooperation experience with national project components supply
  • With our own factory with 35,000㎡
  • Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
  • Competitive price
  • Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
  • Monthly average turnover is 10million
  • Custom-made (ODM) orders welcome here
  • We are committed to providing high-quality products to customers



Outline Dimension of 50Ohm SMA Male Right Angle RF Coaxial Cable Connector:

Mating Cable: RG178

Product Cataloge:

RF Adapter
Microwave Rotary Joints
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
SMA/SSMA RF Connector
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Applications:

  • Microwave Systems
  • Telecommunications
  • 5G Solutions
  • Measurement Systems
  • Mobile Telephone WiFi Antennas Systems

50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz

NOTE:
We have over 10,000 types of Connectors, if the connector you are using is not found, please contact us with your details.
