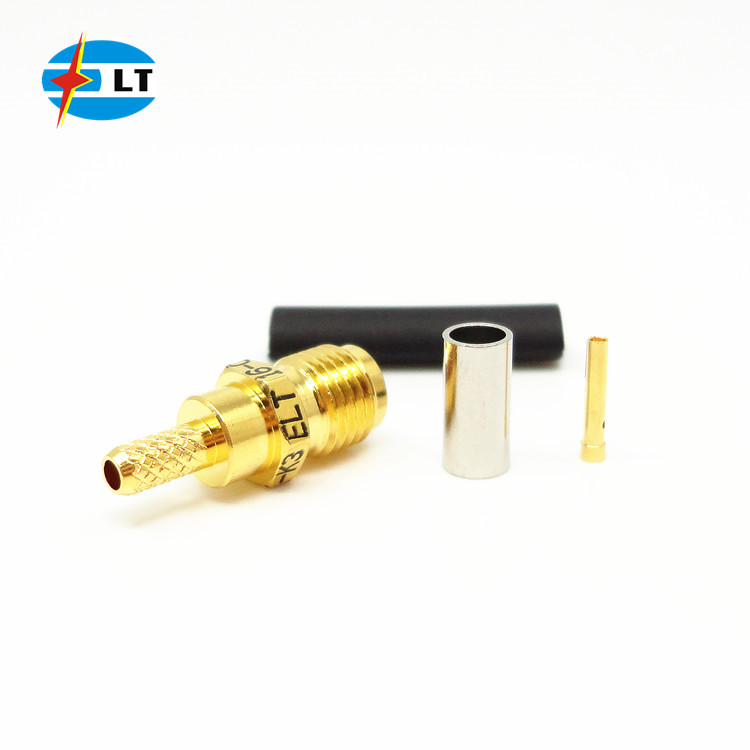

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector
Brass Female 50Ω Impedance RG316 Cable SMA RF Connector
Brass Female 50Ω Impedance RG316 Cable SMA RF Connector
Brass Female 50Ω Impedance RG316 Cable SMA RF Connector
Brass Female 50Ω Impedance RG316 Cable SMA RF Connector
Brass Female 50Ω Impedance RG316 Cable SMA RF Connector
Brass Female 50Ω Impedance RG316 Cable SMA RF Connector
Brass Female 50Ω Impedance RG316 Cable SMA RF Connector
Specifications
Plating :
Gold Plated/ Passivation
Model :
SMA-K3
Brand Name :
ELT
Model Number :
SMA-K3
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
100,000 Pieces Per Month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Impedance :
50Ω
Gender :
Male
Durability :
500 Cycles
Frequency :
DC~18GHz
Product name :
SMA RF Conector
Description

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics. It is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

Electrical Specification :

Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ

Brass Female 50Ω Impedance RG316 Cable SMA RF ConnectorBrass Female 50Ω Impedance RG316 Cable SMA RF Connector


Material & Mechanical Characteristics:

Center Conductor Male Copper Alloy, Gold plated
Female Copper Alloy, Gold plated
Shell and other Metal Parts Copper Alloy, Gold plated
Stainless Passivation
Crimping Sleeve Copper Alloy, Nickel plated
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE


Application:

*Network

*Radar

*Automotive

*Satcom

*Computer/LANs

*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Aerospace
*Board-to-board interconnect

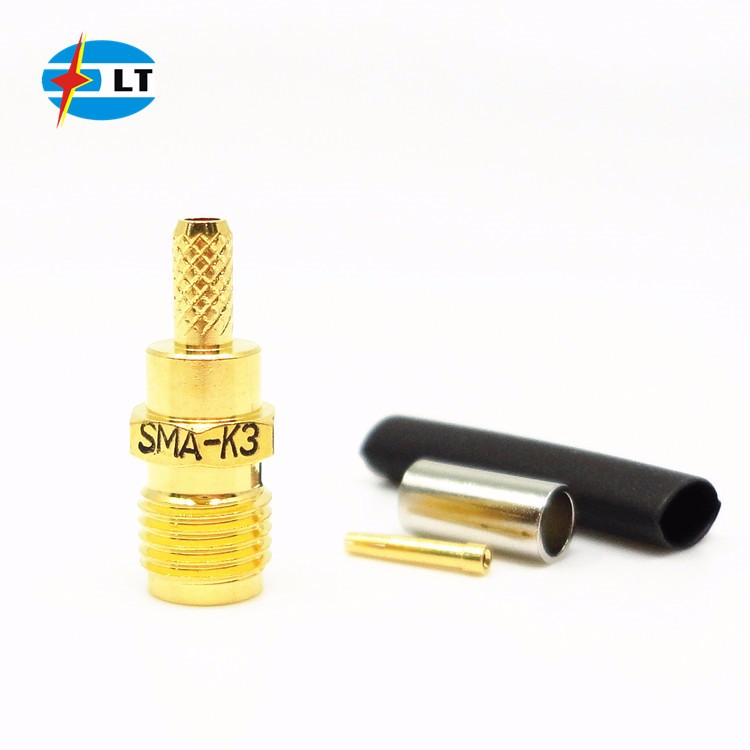

Detailed Images:

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector

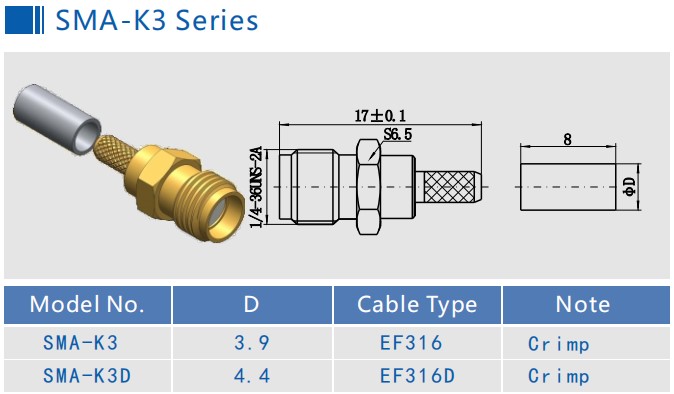

Model No. Description L(mm) L1 L2 Cable Type
SMA-K3 SMA female connector for RG316 cable 17 5.6 8 RG316
SMA-K4 SMA female connector for SFF cable 19.9 8.5 10 SFF-50-2-2
SMA-K5G Stainless steel female connector for SFF cable 22 10 12 SFF-50F3-1

Packaging Details:
* Standard Export Carton
* According to clients' requirements

Brass Female 50Ω Impedance RG316 Cable SMA RF Connector


NOTE:
We have over 10,000 models of Connectors, if the connector you are using is not found, please contact us with your details.
