50Ohm ROHS Gold Plating Flange Mount Male SMP RF Connector
50Ohm ROHS Gold Plating Flange Mount Male SMP RF Connector
50Ohm ROHS Gold Plating Flange Mount Male SMP RF Connector
50Ohm ROHS Gold Plating Flange Mount Male SMP RF Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMP-JFD12
Certification :
CE ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000000 Pieces Per Month
Delivery Time :
Within in 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMP RF Coaxial Conector
Certificate :
CE ROHS ISO-9001-2015
Life Span :
500 Cycles
Gender :
Male/Plug
Body Style :
Straight
Material :
Brass
Mount Method :
Flange Mount
Plating :
Gold Plating
Imdepence :
50Ohm
Description

50Ohm ROHS Gold Plating Flange Mount SMP Male Connector

SMP RF Connector Introduction

The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a freqquency range of DC to 40 GHz. The SMP interconnect series relies on floating female-to-female adapters (commonly called bullets) to achieve stacking of boards equipped with SMP male PCB connectors. This durable structure and ability to withstand radial and axial misalignment allows blind interconnection solutions. It is commonly used in miniaturized high frequency coaxial modules.

Features and Benefits

  • Industry standard per MIL-STD-348
  • Frequency Range: DC - 40 GHz
  • Gold plated & passivated stainless steel
  • Push-on or snap coupling
  • Male and Female, Straight and Right Angle choice
  • Normal type and hermetic seals Flange mount & Thread-In Mount choice
  • The plug has three interface form-full detent, limited detent and smooth bore(including with braking).
  • Custom connectors available

Specification

Electrical Characteristics
Impedance50Ω
Frequency RangeDC~40GHz
Rated Voltage170VRMS*
Insulation Resistance≥2000MΩ
Dielectrics Voltage-resistance500VRMS*

Center Resistance

Outer conductorNormal≤2.5mΩ, Sealing≤4mΩ
Center conductorNormal≤6mΩ, Sealing≤26mΩ
VSWR≤1.3

Material & Mechanical Characteristics
Center ConductorMaleSn-P Bronze,gold plated
FemaleBeryllium bronze, gold plated
Elastic ContactBeryllium bronzeGold plated
Shell and other Metal PartsBrass Stainless steelGold plated Passivation
InsulatorsGlass sintering/PTFE/PEI
Hermetic Product Leakage Rate1.01325×10-3Pa·cm3/s

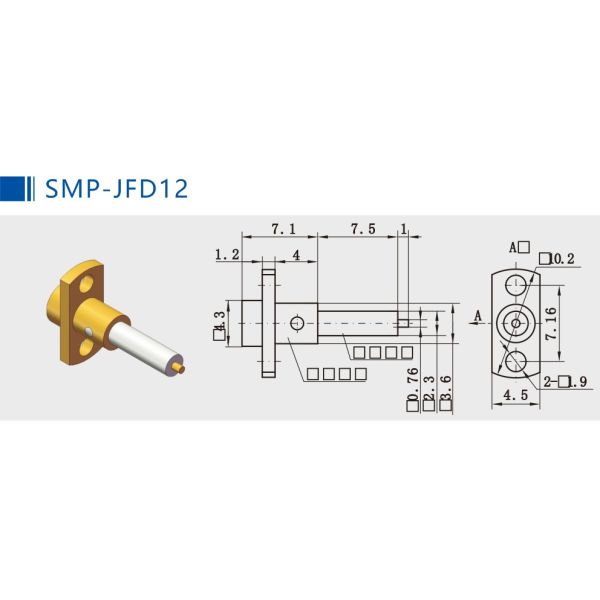

Detailed Drawing of 50Ohm ROHS Gold Plating Flange Mount SMP Male Connector:

50Ohm ROHS Gold Plating Flange Mount Male SMP RF Connector

Model Number
Note
SMP-JFD12
Limited Detent

Applications

  • Antennas
  • Board-to-board interconnect
  • Telecommunications
  • Instrumentation

Product Cataloge:

RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
N Type RF Connector
TNC RF Connector
MCX/MMCX RF Connector
BNC RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)


NOTE:
We have over 10,000 types of SMP connector, If you don’t see the cable assembly you requirewe can design and manufacture one to meet your unique specifications!
