50Ohm Brass Right Angle RF SMA Male to SMA Female Adapter
50Ohm Brass Right Angle RF SMA Male to SMA Female Adapter
50Ohm Brass Right Angle RF SMA Male to SMA Female Adapter
50Ohm Brass Right Angle RF SMA Male to SMA Female Adapter
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-JWK
Certification :
Rohs ISO-9001-2015
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
5-8 days
Packaging Details :
* Standard Export Carton * According to customers' requirements
Product name :
SMA RF Coaxial Adapter
Plating :
Gold Plated
Impedance :
50Ω
Certificate :
ROHS
Dielectric :
PTFE
Material :
Brass
Impedence :
50Ohm
Description

50Ohm Brass SMA Male to SMA Female Right Angle RF Adapter

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

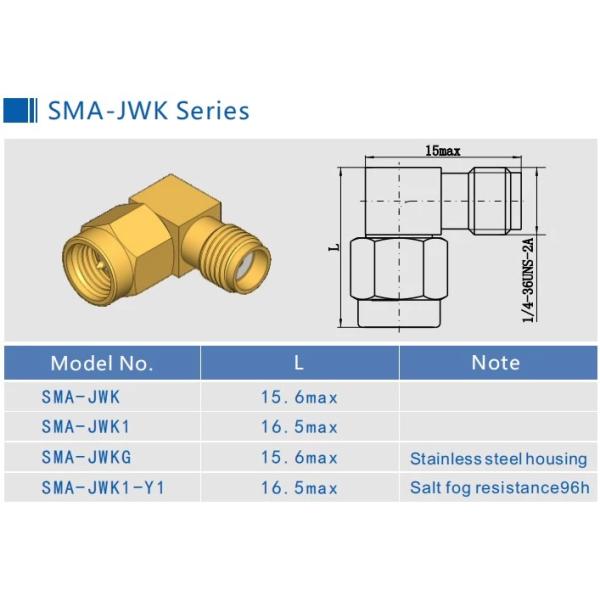

Detailed Drawing

50Ohm Brass Right Angle RF SMA Male to SMA Female Adapter

Application:

* Network

* Satcom

* Computer/LANs

* Mobile communication

* Instrumentation

* Base Station

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system

Product Cataloge:

RF Adapter
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
