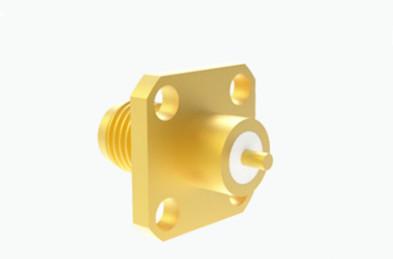

Brass Gold Plated SMA Female RF Flange Mount Micro-strip Connectors
Brass Gold Plated SMA Female RF Flange Mount Micro-strip Connectors
Brass Gold Plated SMA Female RF Flange Mount Micro-strip Connectors
Brass Gold Plated SMA Female RF Flange Mount Micro-strip Connectors
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-KFD19
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,000 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product name :
SMA RF Connector
Plating :
Gold Plated
Impedance :
50Ω
Durability :
500 Cycles
Application :
RF, Satcom /Antenna/Audio
Material :
Brass
Certificate :
ISO-9001-2015
Type :
SMA
Description

Brass Gold Plated SMA Female RF Connector with Microstrip & Flange Mount

High Performance SMA RF Connectors:

The SMA RF coaxial connector is a compact, high-frequency coaxial connector designed in accordance with MIL-C-39012. It boasts several advantages, including its small size, broad frequency range, superior mechanical and electrical performance, and high reliability. As such, it is the most commonly used RF coaxial connector. Its widespread application can be found in microwave communications, microwave measurement equipment, and other related fields. The line of high-performance connectors developed by our company can support frequencies up to 20GHz.

Our Advantages:

  • 20 years of experience on RF & Microwave Components
  • Qualified components supplier of China
  • Rich cooperation experienced with national high tech projects
  • High performance and commercial grade components for choice
  • Strict quality (QA Report),ISO9001,ROHS,CE,UL
  • Factory area 35,000 sq.m with almost 1,000 experience staff
  • 500+ national patents with 15 production lines
  • Annual output value above US$300 million
  • 50+ series products with 100,000 types
  • Short delivery and competitive price
  • Custom-made(ODM) orders are welcomed

Applicable Standard:

MIL-C-39012
IEC 60169-15

Product Display:

Brass Gold Plated SMA Female RF Flange Mount Micro-strip Connectors

Electrical Characteristics:

Note:The frequency of the model is based on the data in the product specification sheet.

Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3

Material & Mechanical Characteristics:

Center Conductor Male Copper Alloy Gold plated
Female Beryllium Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Copper Alloy Gold Plated
Stainless Passivation
Crimping Sleeve Copper Alloy Nickel plated
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE

Applications:

1. Microwave Communication: In wireless communication systems, including base stations, antenna systems, and other related equipment, SMA connectors are used to link different components in the signal path.

2. Measurement and Test Equipment: Precision microwave test equipment and network analyzers often use SMA connectors as signal input and output interfaces to ensure accurate measurements.

3. Satellite Communications: In satellite uplink and downlink systems, SMA connectors are used to connect ground station transmit and receive equipment.

4. Scientific Experiments: In scientific research, especially experiments involving RF signals, SMA connectors are commonly used to build connections between experimental setups and instruments.

Related Products:

SMA Hermetically sealed Microstrip KFD (female flange) Connectors

Brass Gold Plated SMA Female RF Flange Mount Micro-strip Connectors

Model No. Note
SSMA-KFD Hermetically sealed

NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
