Antenna Flange Panel Mount SMA RF Connector with Right Angle
Antenna Flange Panel Mount SMA RF Connector with Right Angle
Antenna Flange Panel Mount SMA RF Connector with Right Angle
Antenna Flange Panel Mount SMA RF Connector with Right Angle
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-KWFD239
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMA RF Connector
Plating :
Gold Plated
Impedance :
50Ω
Certificate :
CE ROHS,ISO-9001
Dielectric :
PTFE
Type :
RF Connector
Style :
Right Angle
Material :
Brass
Description

SMA Antenna Flange Panel Mount RF Connector with Right Angle

TYPE SMA is one kind of RF coaxial connectors that is widely applied with small sized thread coupling. Characteristic impedance is 50ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.

Specifiacation:

Electronic and Material Characterials
Impedance 50Ohm
Frequency Range DC~18GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male Brass gold plated
Female Beryllium copper gold plated
Shell and other metal parts Brass gold plated
Cable sheath Brass nickle plated
Insulator PTFE
Seal ring Silicon rubber
Mating torque 0.79 -1.13 N.m

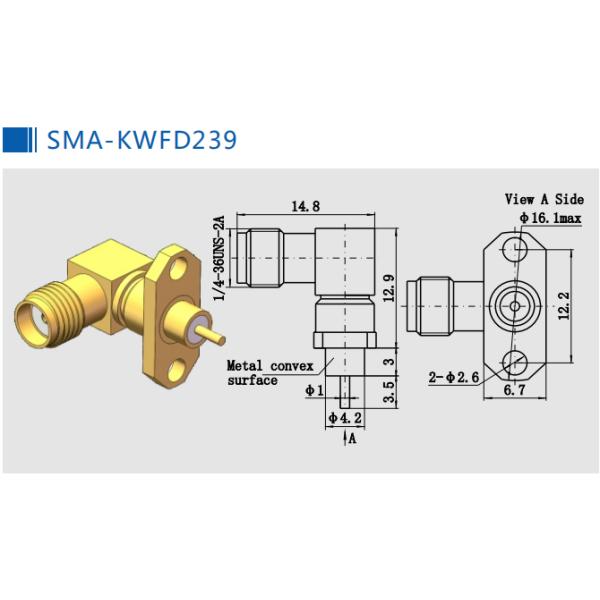

Detailed Drawing of

SMA Antenna Flange Panel Mount RF Connector With Right Angle:

(mm)

Antenna Flange Panel Mount SMA RF Connector with Right Angle

Model No. Description Note
SMA-KWFD239 SMA Female Right Angle Connector

Application:

- Antennas

- Wireless

- Broadband

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

Product Cataloge:

RF Adapter
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
