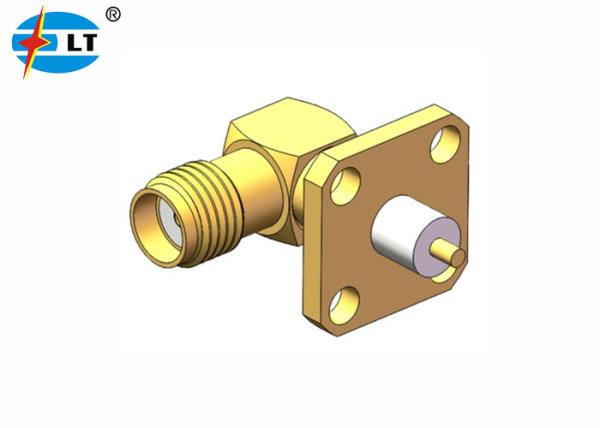

50Ohm Gold Plated SMA 4 Holes Flange SMA Receptacle Connector
50Ohm Gold Plated SMA 4 Holes Flange SMA Receptacle Connector
50Ohm Gold Plated SMA 4 Holes Flange SMA Receptacle Connector
50Ohm Gold Plated SMA 4 Holes Flange SMA Receptacle Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-KWFD7
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product name :
SMA RF Coaxial Connector
Plating :
Gold Plated
Gender :
Female
Impedance :
50Ω
Durability :
500 Cycles
Application :
Wireless and Satellite Communication
Frequency Range :
DC～18GHz
Type :
SMA
Description

50Ohm Gold Plated 4 Holes Flange SMA Receptacle Connector

SMA series is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

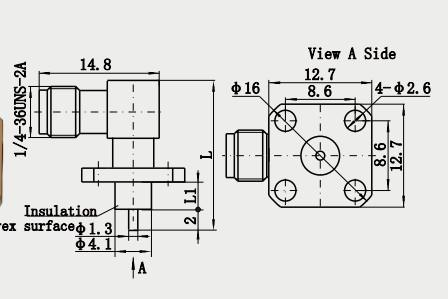

Interface Dimentions:

50Ohm Gold Plated SMA 4 Holes Flange SMA Receptacle Connector

Specification of SSMA Rf Connectors:

Note:The specification of the model are based on the data in the product specification sheet.

Electronic and Material Characteristics
Impedance 50Ω
Frequency Range DC～18GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000 VRMS (Maximum sea-level)
Insulation Resistance ≥5000MΩ
Center conductor Male Brass gold plated
Female Beryllium Bronze gold plated
Shell and other Metal Parts
Brass gold plated
Stainless steel passivation
Cable sheath Brass nickel Plated
Insulator PTFE
O-Ring Silicon rubber
Durability 500 Cycles

Advantages:

√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500

experienced workers with over 10 production line

√ Specializes in manufacturing RF connector more than 20 years

√ Have long and Rich cooperation experience with national project components supply

√ With our own factory with 35,000㎡

√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery

√ Competitive price

√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE

√ Monthly average turnover is 10 million

√ Custom-made (ODM) orders welcome here

√ We are committed to providing high-quality products to customers

Features:

1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
3. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 holes panel configurations
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz)

More Pictures of

50Ohm Gold Plated 4 Holes Flange SMA Receptacle Connector:

50Ohm Gold Plated SMA 4 Holes Flange SMA Receptacle Connector

Product Cataloge:

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints

NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
