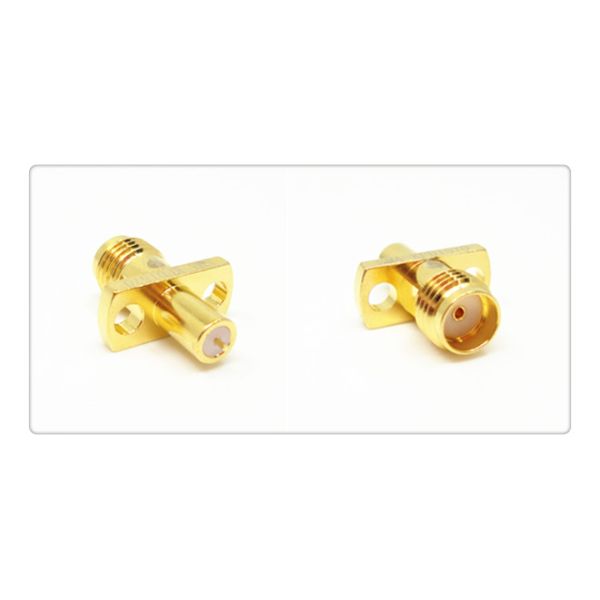

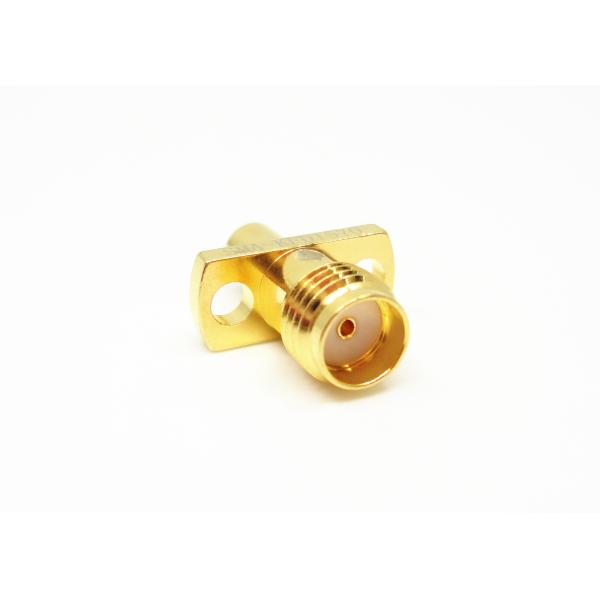

SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-KFD1570
Certification :
ROHS, ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,00 Pieces Per Month
Delivery Time :
Within 3-4 weeks
Packaging Details :
Standard Export Carton
Product name :
SMA RF Conector
Plating :
Gold Plated
Gender :
Female
Impedance :
50Ω
Frequency :
DC~18GHz
Durability :
500 Cycles
Application :
Communication
Material :
Brass
Description

SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions, as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability

SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability

Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

Application:

* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave

Product Cataloge:

RF Adapter
SMA RF Connector
SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.

Other Products:
1.SMA Female Right Angle PCB Panel Solder Mount RF Coaxial Connector

SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability

Model No. L L1 Note
SMA-KWHD 13.5 3.9
SMA-KWHD9 11.5 1.9
SMA-KWHD11 15.6 6


2. 2-Holes Flanges Mount SMA Female Right Angle SMA Connector

SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability

Model No. L L1 L2 Note
SMA-KWF142 4 3.4 20.3
SMA-KWFD146 1.2 3 17.1
