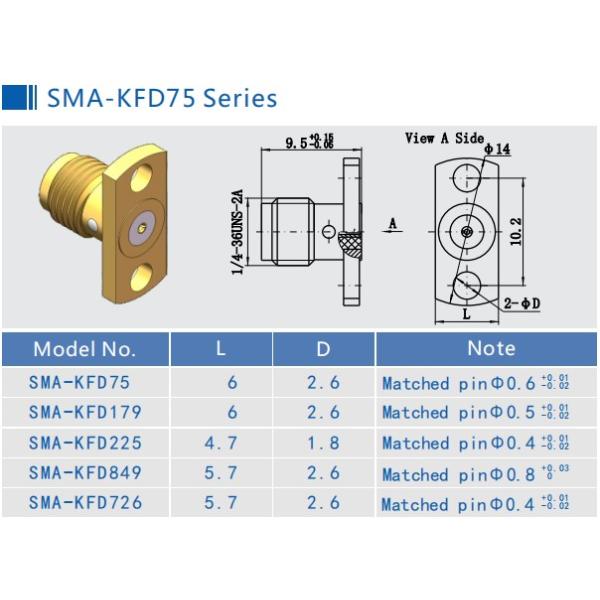

Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector
Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector
Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector
Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-KFD75
Certification :
ROHS, ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,00 Pieces Per Month
Delivery Time :
Within 3-4 weeks
Packaging Details :
Standard Export Carton
Product name :
SMA RF Conector
Plating :
Gold Plated
Gender :
Female
Impedance :
50Ω
Frequency :
DC~18GHz
Durability :
500 Cycles
Application :
Communication
Model :
SMA-KFD75
Description

Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector

1. SMA RF connectors are available in quick connect, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing 2 connectors together with no soldering or crimping required.
3. SMA RF connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling with miniature size, vibration-proof and wide frequency range up to 18GHz .

Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

Application:

* Broadband
* Instrumentation

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

* Phased array antennas
* Telecommunications

* Board-to-board interconnect

Product Cataloge:

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints

Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector

More Detail of Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector:

Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
