ROHS SMP Male Gold Plating Flange Mount RF Connector with Long Metal Convex Surface

SMP RF Connector Introduction

The SMP interface is a small form-factor connector that measures the same as an MMCX connector, but it has a broader frequency range of DC to 40GHz. The SMP interconnect series employs floating female-to-female adapters (commonly known as bullets) for stacking boards with SMP male PCB connectors. This resilient structure and capacity to tolerate misalignment in both radial and axial directions enable blind interconnection solutions. It is commonly used in compact high-frequency coaxial modules.

Features and Benefits

The SMP connector is a compact, subminiature connector that measures the same as an MMCX connector. It has a frequency range of DC to 40GHz and is made from gold plated and passivated stainless steel. The connector can be coupled using either push-on or snap coupling methods. It is available in male and female versions, straight and right angle options, normal type and hermetic seals, flange mount and thread-in mount choices. Additionally, the plug offers three interface forms: full detent, limited detent, and smooth bore (including those with braking). Custom connectors are also available upon request.

Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Rated Voltage 170VRMS*
Insulation Resistance ≥2000MΩ
Dielectrics Voltage-resistance 500VRMS*

Center Resistance

 Outer conductor Normal≤2.5mΩ, Sealing≤4mΩ
Center conductor Normal≤6mΩ, Sealing≤26mΩ
VSWR ≤1.3

Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze,gold plated
Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate 1.01325×10-3Pa·cm3/s

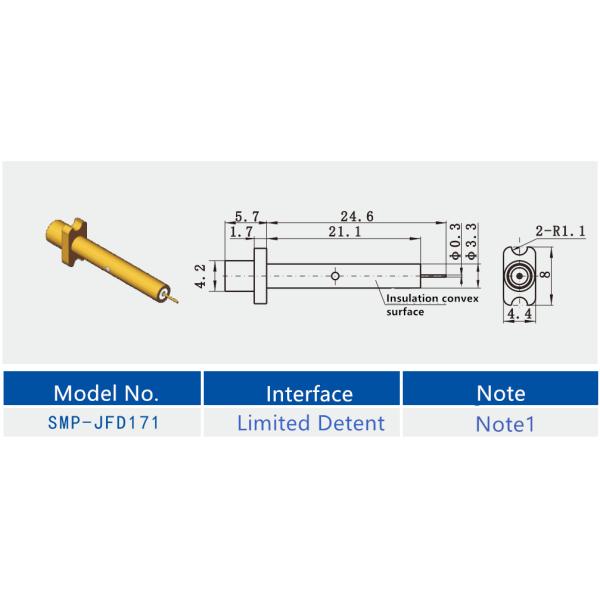

Detailed Drawing of ROHS SMP Male Gold Plating Flange Mount RF Connector with Long Metal Convex Surface:

ROHS SMP Male Gold Plating Flange Mount RF Connector With Long Metal Convex Surface

Applications

Antennas, board-to-board interconnect, telecommunications, and instrumentation are all related to the field of electronics.

Product Cataloge:

RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
N Type RF Connector
TNC RF Connector
MCX/MMCX RF Connector
BNC RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)


NOTE:
We have over 10,000 types of SMP connector, If you don’t see the cable assembly you requirewe can design and manufacture one to meet your unique specifications!
