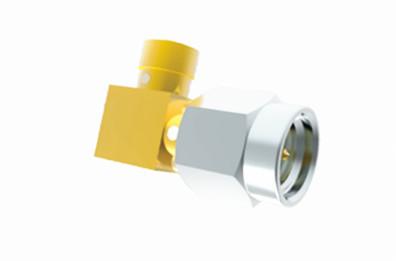

SMA Male Right Angle Stainless Steel RF Connector

SMA RF coaxial connector is a small, high frequency coaxial connector designed in accordance with MIL-C-39012. It boasts advantages such as compact size, wide frequency range, superior mechanical and electrical performance, and high reliability. As the most commonly used RF coaxial connector, it is widely utilized in microwave communication, microwave measurement equipment, and other fields. The high-performance connectors developed by our company can reach frequencies up to 20GHz.

Outline Drawing and Picture(mm)

Electrical Characteristics of SMA RF Adapter

Other SMA Male Female to SMA In-series Male Female RF Adapter

1.

2.

3.

4.

5.

6.

Application:

Features:

Compact Size: SMA stands for "SubMiniature version A," which refers to its small size, making it ideal for applications where space is at a premium.

Reliable Connectivity: SMA connectors use a threaded coupling mechanism that provides a secure physical connection, ensuring stable signal transmission.

Versatile Mounting Options: SMA connectors come in right-angle and straight versions, offering flange or bulkhead mounting, and are available with crimp or solder contacts to suit different application requirements.

High-Quality Materials: The housing of an SMA connector is typically made from stainless steel SU303 or brass and is gold-plated to ensure good electrical conductivity and resistance to corrosion.

Specific Technical Specifications: SMA connectors have a characteristic impedance of 50Ω and well-defined frequency ranges, which help users select the appropriate connectors for their specific technical needs.

Workshop & Exibition

NOTE:
We have over 10,000 types of RF Connectors Adapters, if the connector you are using is not found, please contact us with your details.
