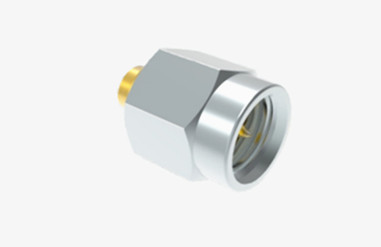

SMA Male Stainless Steel RF Connector For 2#Semi-rigid/flexible Cable
SMA Male Stainless Steel RF Connector For 2#Semi-rigid/flexible Cable
SMA Male Stainless Steel RF Connector For 2#Semi-rigid/flexible Cable
SMA Male Stainless Steel RF Connector For 2#Semi-rigid/flexible Cable
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-JB2G-15
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,000 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Item :
SMA RF Coaxial Connector
Gender :
Male
Impedance :
50Ω
Frequency :
DC~18GHz
Durability :
500 Cycles
Material :
Stainless Steel
Color :
Gold plated
Body style :
Straight
Description

SMA Male Stainless Steel RF Connector for 2#Semi-rigid/flexible Cable

The SMA series represents a type of compact, high-frequency RF coaxial connector that is engineered and manufactured in accordance with the MIL-C-39012 specification. Distinguished by its small size, broad bandwidth, and superior electrical performance, the SMA connector is extensively utilized across various sectors of microwave communication and microwave measurement equipment. The high-performance connectors produced by our company are capable of supporting frequencies up to 20GHz.

SMA Male Stainless Steel RF Connector For 2#Semi-rigid/flexible Cable

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
Material & Mechanical Characteristics
Center Conductor Male Copper Alloy Gold plated
Female Beryllium Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Copper Alloy Gold Plated
Stainless Steel Passivization
Crimping Sleeve Copper Alloy Nickel plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles
Tightening torque of connection 0.79－1.13N .m

Advantages:

1.Small Size: SMA connectors are renowned for their compact design, making them suitable for use in space-limited electronic devices.
2.Broad Bandwidth: SMA connectors are designed for RF connections in electronic systems operating at frequencies up to 18 GHz or even higher, making them applicable for a variety of high-frequency applications.
3.Reliable Connection: They utilize a threaded connection method, ensuring stability and reliability of the connector.

Interface Dimentions:

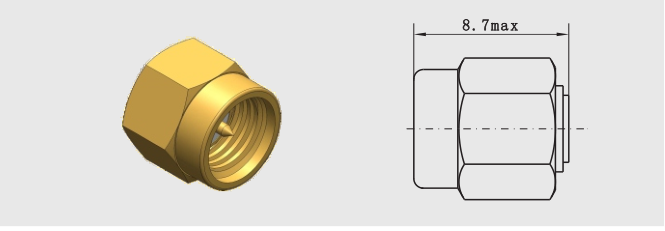

Outline Drawing:(mm)

SMA Male Stainless Steel RF Connector For 2#Semi-rigid/flexible Cable

Product Cataloge:

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints

Application:
Due to their small size, broad bandwidth, reliable connection, and versatile forms, SMA connectors have become an indispensable component in RF and microwave equipment.

Related Products:

SMA Male Gold Plated RF Connector For 2#Semi-rigid/flexible Cable

SMA Male Stainless Steel RF Connector For 2#Semi-rigid/flexible Cable

Model No. Note
SMA-JB2D Solder, Thread Sleeve Removable
SMA-JB2DG Solder,Thread Sleeve Removable,SS Thread Sleeve

SMA Male Gold Plated right angle RF Connector For 2#Semi-rigid/flexible Cable

SMA Male Stainless Steel RF Connector For 2#Semi-rigid/flexible Cable

Model No. Note
SMA-JWB2-1 Solder

NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
