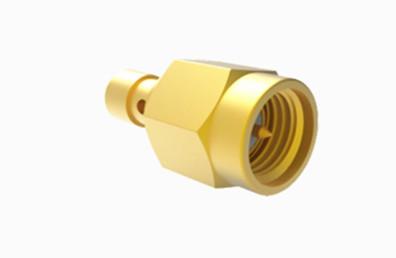

SMA Male Brass Gold Plated RF Connector For SFF-50-1.5-1/RG316 Cable
SMA Male Brass Gold Plated RF Connector For SFF-50-1.5-1/RG316 Cable
SMA Male Brass Gold Plated RF Connector For SFF-50-1.5-1/RG316 Cable
SMA Male Brass Gold Plated RF Connector For SFF-50-1.5-1/RG316 Cable
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-J3-4
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,00 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Item :
SMA RF Connector
Plating :
Gold Plated
Connector Gender :
male
Impedance :
50Ω
Frequency :
DC~18GHz
Lifetime :
500 Cycles
Body :
Brass
Type :
SMA
Description

SMA Male Brass Gold Plated RF Connector for SFF-50-1.5-1 /RG316 Cable

The SMA RF coaxial connector is a compact, high-frequency coaxial connector designed in compliance with MIL-C-39012. It boasts several advantages, including its diminutive size, extensive frequency range, exceptional mechanical and electrical characteristics, and high dependability. This type of connector is the most commonly utilized in radio frequency coaxial applications. It sees widespread use in various domains such as microwave communications and microwave measurement apparatuses. The superior performance connectors from our company in this series are engineered to support frequencies up to 20GHz.

SMA Male Brass Gold Plated RF Connector For SFF-50-1.5-1/RG316 Cable

Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance 50 Ohm
Frequency Range DC~18GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000 VRMS (Maximum sea-level)
Insulation Resistance ≥5000MOhm
Contact Resistance Outer conductor ≤2 mΩ
Center conductor ≤3 mΩ

Characterization:

1. Standardization and Compatibility: SMA connectors follow standard size and electrical specifications, ensuring compatibility with a wide range of RF components and devices.

2. Environmental Resistance: Some versions of SMA connectors are designed to withstand harsh environmental conditions, being waterproof, dustproof, or corrosion-resistant.

3. Wide Application Range: Due to their performance features, SMA connectors are widely used in wireless communications, test and measurement sectors.

Application:

The SMA connector is a widely used coaxial connector in the RF and microwave industry, known for its compact design, wide frequency range, excellent mechanical and electrical performance, and high reliability. These characteristics make SMA connectors applicable across fields such as microwave communication,measurement and test equipment,satellite communications, and scientific experiments.

Other Products:

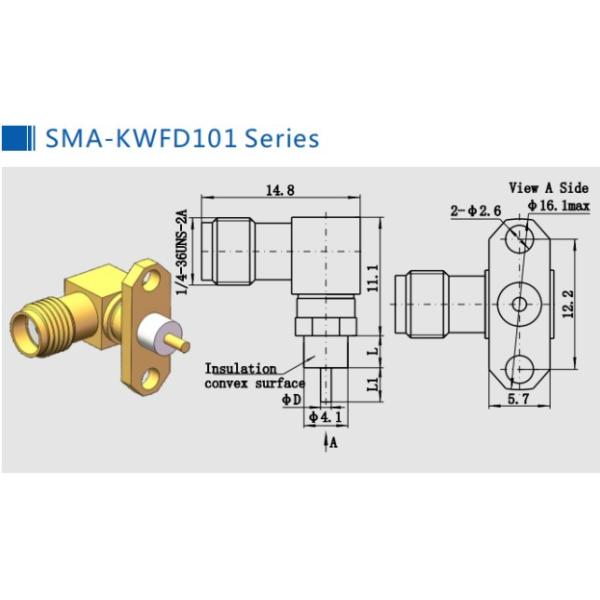

1.SMA Right-Angle Female Flange-Mount RF Coaxial Connector

SMA Male Brass Gold Plated RF Connector For SFF-50-1.5-1/RG316 Cable

Model No. L L1 D Note
SMA-KWFD101 3 3 1.3
SMA-KWFD101G 3 3 1.3 SS housing
SMA-KWFD115 4 2 0.6
SMA-KWFD131 15 3 1.3
SMA-KWFD147 4 4 1.3
SMA-KWFD169 3 0.6 0.4
SMA-KWFD234 3 3 1

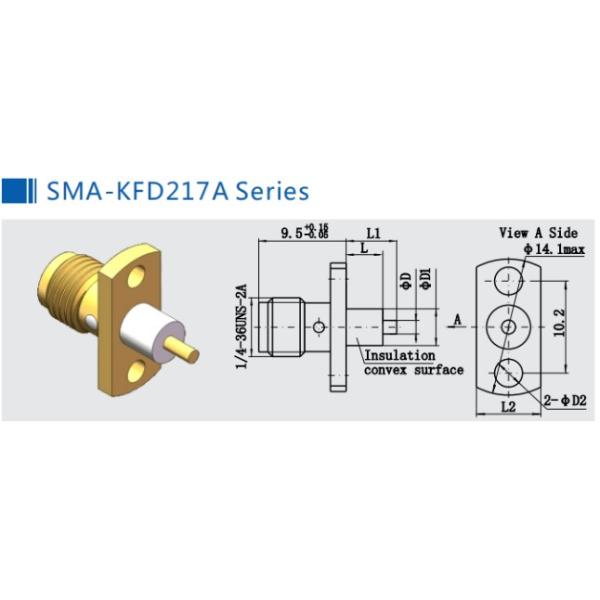

2.50Ohm Female Jack Flange Mount SMA RF Connector

SMA Male Brass Gold Plated RF Connector For SFF-50-1.5-1/RG316 Cable

Model No. L L1 L2 D D1 D2 Note
SMA-KFD217A 4 7 6 1.3 4.1 2.2
SMA-KFD746 0 1.1 5.7 1.3 0 2.6
SMA-KFD1197 4 4.5 5.7 1 4.1 2.6
SMA-KFD1304 0 1 5.7 0.8 0 2.2
SMA-KFD1401 3.3 5 5.7 1.3 4.1 2.6

Product Catalog:

RF Adapter
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:

We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
